MP-11x & Microsoft Office Communications Server 2007
Quick Installation Guide 34 Document #: LTRT-26301
3.3.2.11 Enabling One-Stage Dialing
One-stage dialing is when the gateway receives an IP-to-Tel call, off-hooks the PBX line
connected to the PBX / PSTN telephone, and then immediately dials the destination telephone
number. In other words, the OCS client (i.e., IP caller) doesn't dial the PSTN number upon
hearing a dial tone.
¾ To enable one-stage dialing, take these 3 steps:
1. Open the ‘FXO Settings’ screen (Protocol Management menu > Advanced Applications >
FXO Settings); the ‘FXO Settings’ screen is displayed.

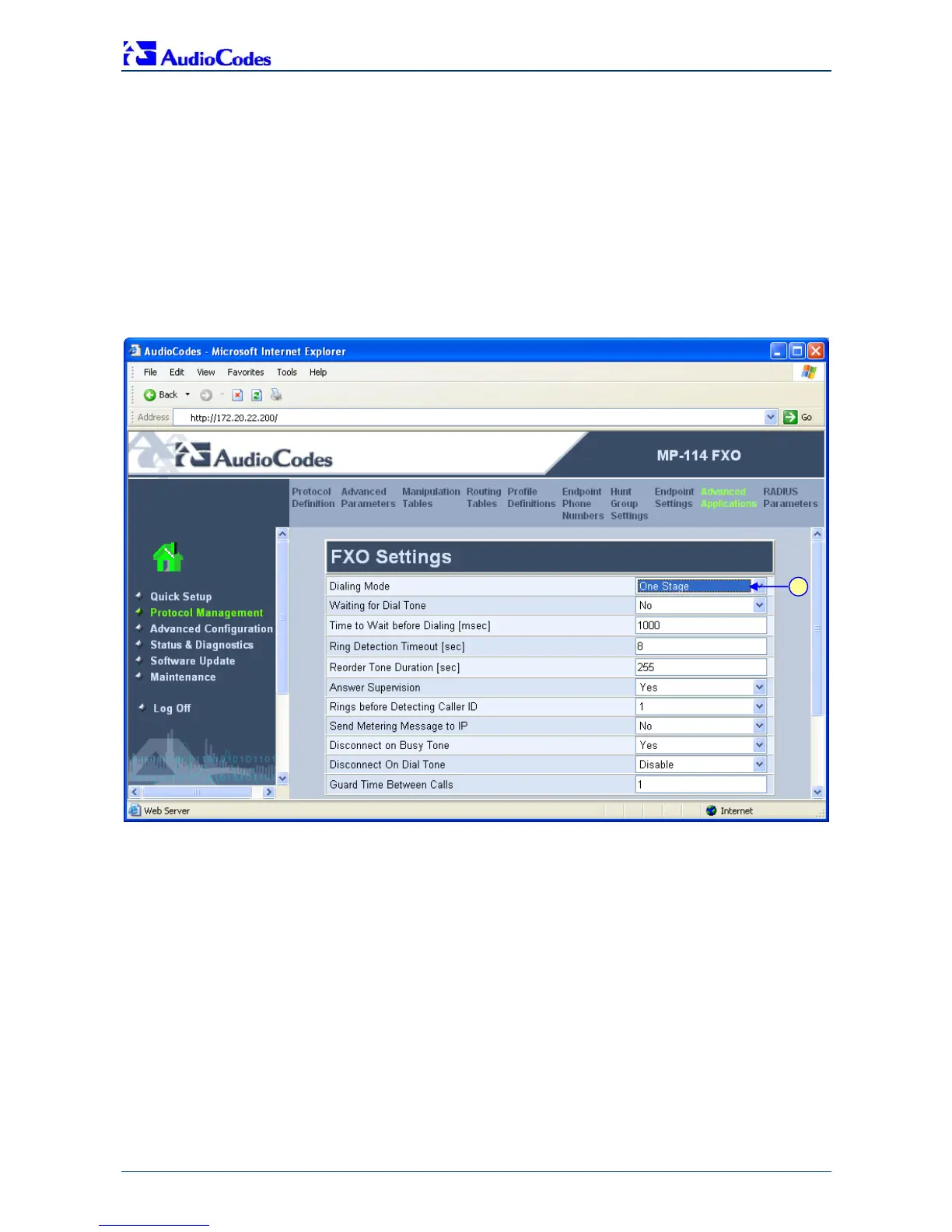

Figure 3-21: FXO Settings Screen
2. From the 'Dialing Mode' drop-down list, select 'One Stage'.
3. Click the Submit button to save your changes.
