Quick Installation Guide 3. Configuring the MediaPack
Version 5.0 35 September 2007
3.3.2.12 Defining Channel Select Mode
Channel select modes determine the method in which new IP-to-Tel calls (i.e., calls from OCS
clients to PBX/PSTN phones) are assigned to gateway ports (i.e., channels). It is recommended
to select the Cyclic Ascending mode, which selects the next available channel in an ascending
cycle order.
¾ To define the Channel Select mode, take these 3 steps:
1. Open the 'General' screen (Protocol Management menu > Protocol Definition > General
Parameters).

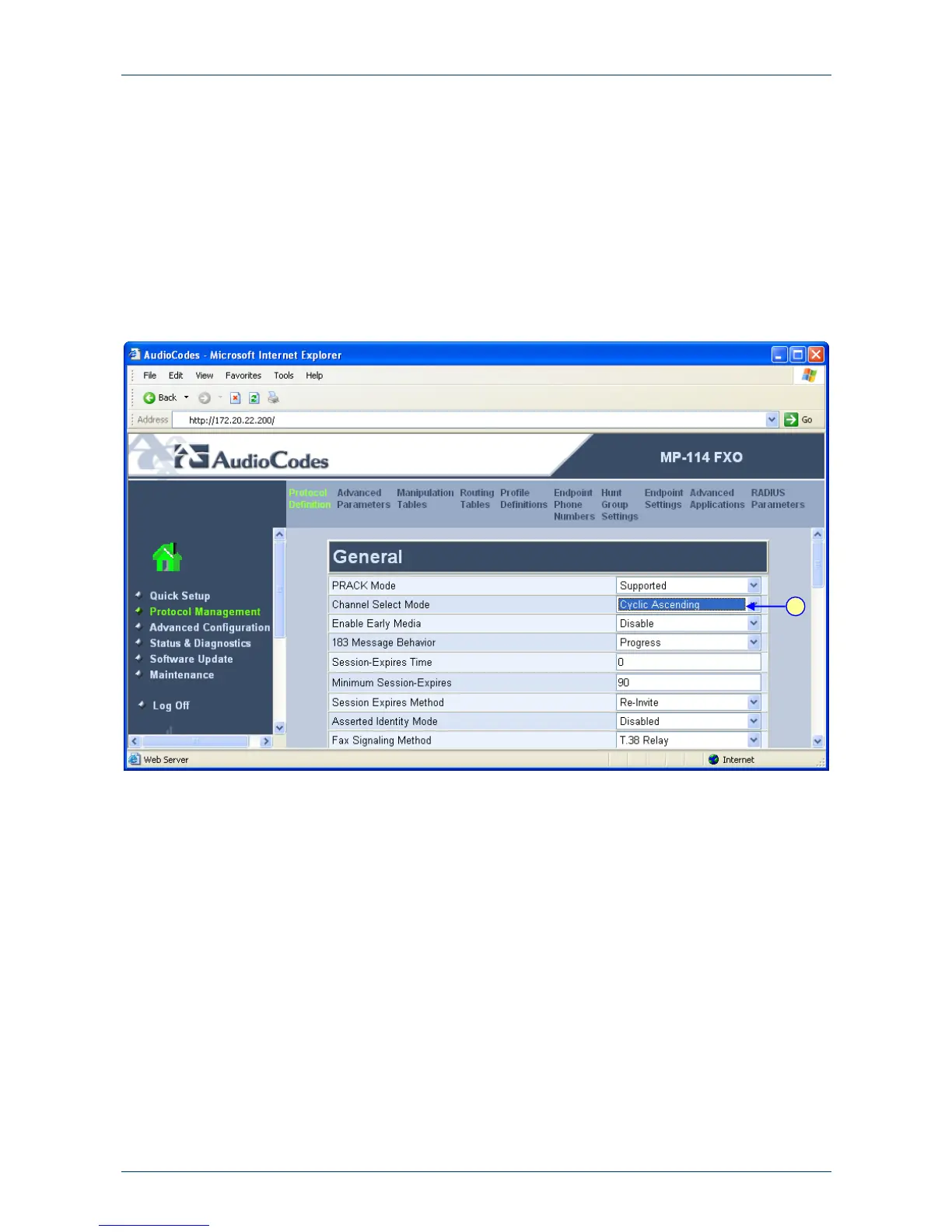

Figure 3-22: General Screen
2. From the 'Channel Select Mode' drop-down list, select 'Cyclic Ascending'.
3. Click the Submit button to save your changes.
2
