At this point you need to have in mind the system you want to develop
beforehand, since from this moment, to change any of the settings you
will have to go through the guided procedure all over again
Select I/O Conguration Wizard from the Cong menu.
The bit One HD is set up by default as detailed below:
Input Hi Level Master :
- CH1 Front Left Full
- CH2 Front Right Full
- CH3 Rear Left Full
- CH4 Rear Right Full
AUTO Turn ON Hi Level: Active
Output Analog (Pre Out):
- CH1: Front Left Woofer - CH2: Front Right Woofer
-
CH3: Front Left Midrange - CH4: Front Right Midrange
- CH5: Front Left Tweeter - CH6: Front Right Tweeter
- CH7: Rear Left Woofer - CH8: Rear Right Woofer
- CH9: Rear Left Tweeter - CH10: Rear Right Tweeter
- CH11: Center Tweeter - CH12: Center Woofer
- CH13: Subwoofer.
2. Inputs selection
- Select the main inputs (MASTER) type (Low Level ,High Level
or optical 1) used. To change this setting at a later stage, the
I/O Conguration Wizard guided procedure will have to be
performed again.
- Select among the available auxiliary inputs (AUX - OPTICAL 1 -
OPTICAL 2) the ones which will be used. The setting can be
changed at a later stage by selecting “Cong / External Source”
on the software main menu
Press BACK to go back to the previous step.
Press NEXT to go ahead with the setup procedure.

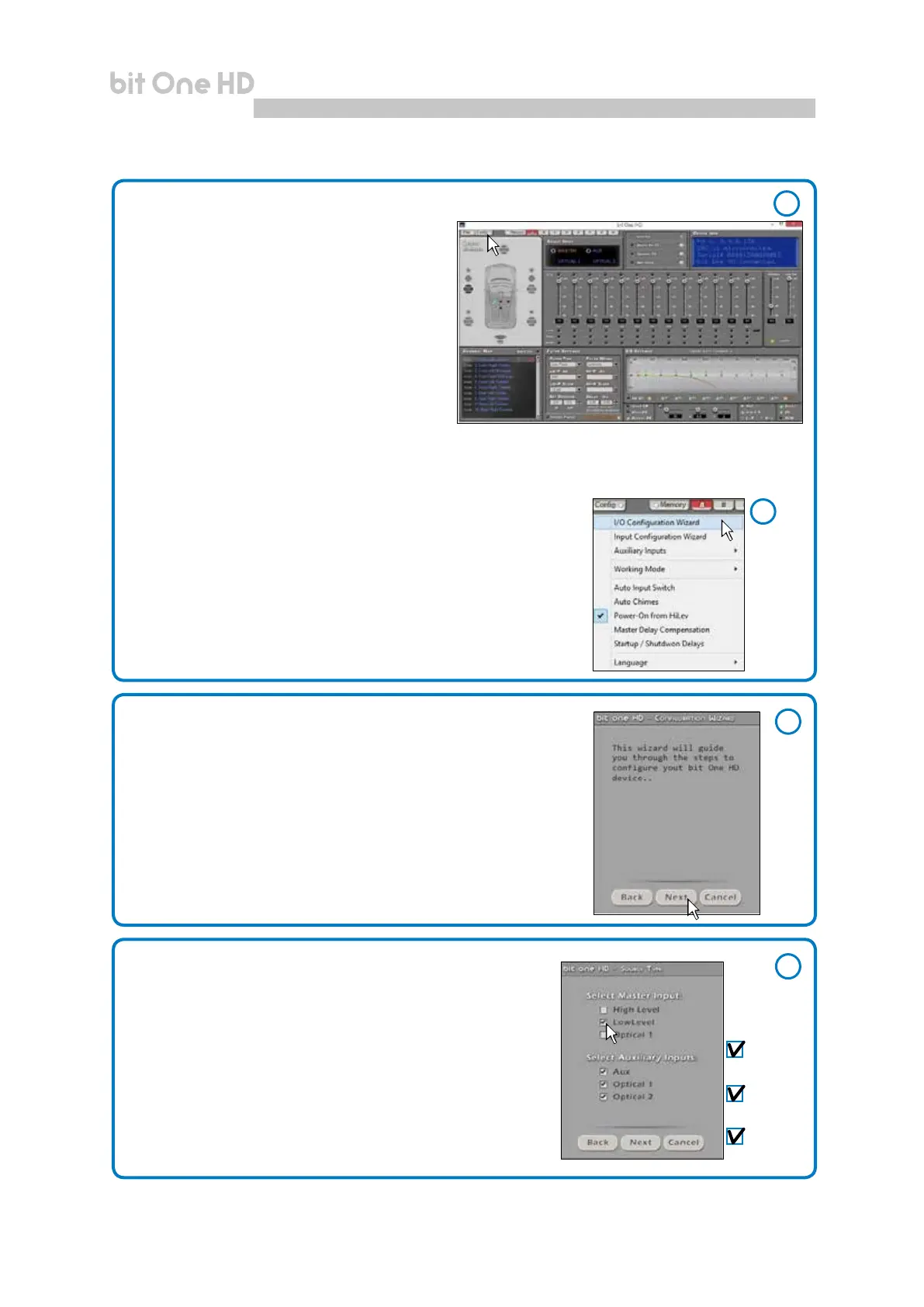

Screen
sequence
5
6
7
1. Guided procedure to set up the desired car audio system.
Press NEXT to continue with the setting.
Press CANCEL to exit the program.
High Level
section 8.4
section 8.3
section 8.5
Low Level
Optical
7
4
