44
USER'S MANUAL
bit One HD /

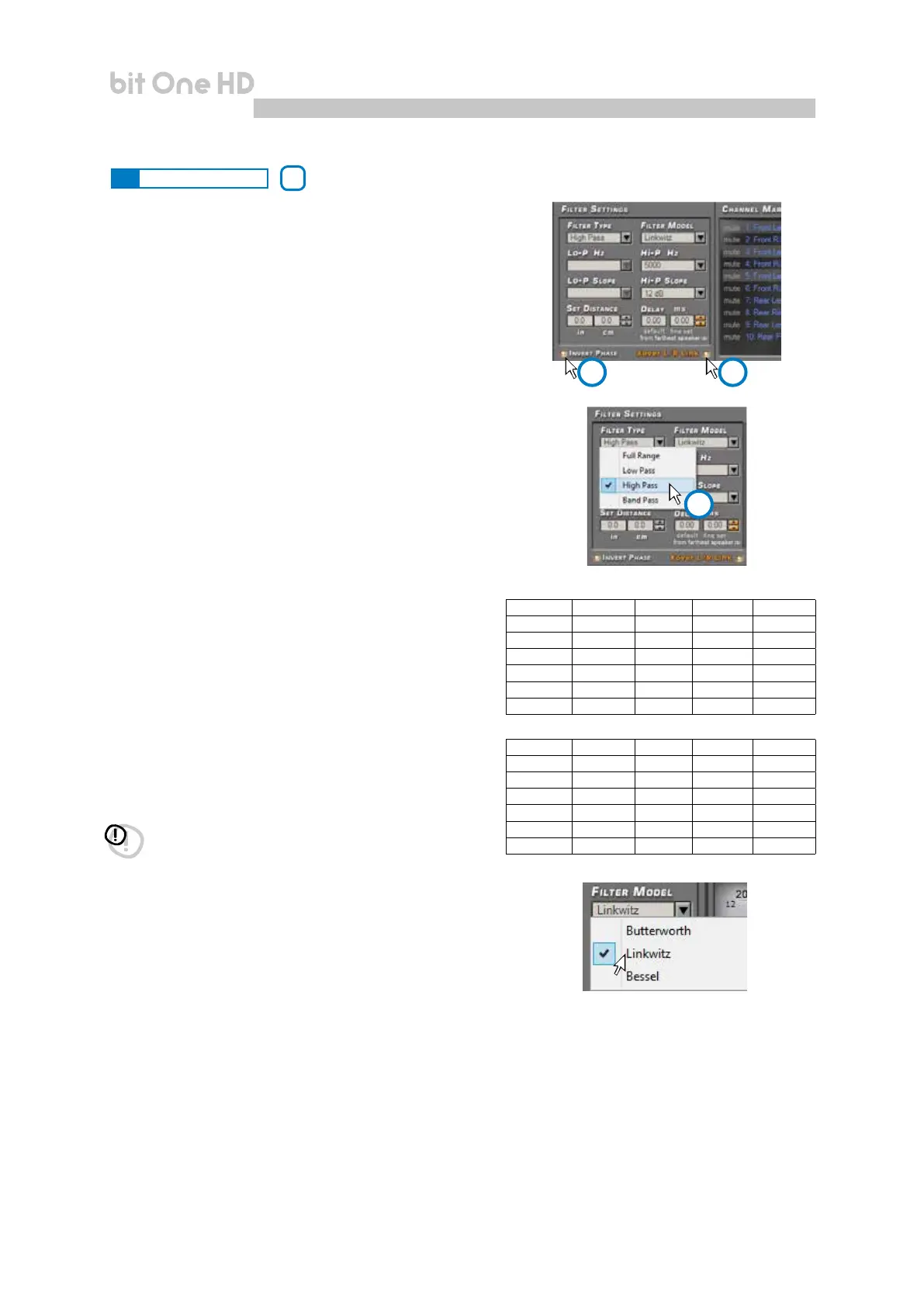

The bit One HD manages 13 crossovers, one for each output
channel. Each lter allows the setting of the parameters related
to the channel highlighted on the Channel Map.
1. Xover L/R Link: when activated, the modications applied to
one of the channels (right or left) will automatically be applied
also to the other one. To activate it click on the blue flashing light.
2. Invert Phase: it provides the ability to invert the phase of
the channel under examination by 180°. It can be activated by
selecting the green flashing light.
This function can be useful to solve alignment problems
among the different ltered channels.
3. Filter Type: it enables the selection of the different
types of lters that can be assigned to channels.
Full Range
Low Pass
High Pass
Band Pass
4. Filter Model: it enables the selection of the
applicable type of lter
Butterworth (default)
Linkwitz
Bessel
When launching the software, the bit One HD
offers Butterworth as standard lter model. If
you change it into Linkwitz or Bessel, the change
will be applied only to the channel (mono) or
channels (stereo - Xover Link enabled) you are
working with.
In STANDARD mode:
according to the speaker system selected during the
setup, the lter type suitable for the used speaker will
be available.
E.g.: for the Front Woofer only Low Pass or Band Pass
will be available. For the Front Mid-Hi only High Pass
and Band Pass will be available, etc.
In EXPERT mode:
any speaker system selected features any lter type
available.
8.7 FILTER SETTINGS
6
STANDARD MODE
EXPERT MODE
Full Range Low Pass High Pass Band Pass
Tweeter
x x
Midrange
x
Woofer
x x
Mid-Hi
x x
Subwoofer
x x
Full
x x x x
Full Range Low Pass High Pass Band Pass
Tweeter
x x x x
Midrange
x x x x
Woofer
x x x x
Mid-Hi
x x x x
Subwoofer
x x x x
Full
x x x x
WARNING: in this case pay utmost attention to the
lter adjustment. Speakers have mechanical limits
which must not be exceeded and could lead to
damage to the components.
12
3
8
