USER'S MANUAL
bit One HD /
3. bit One HD AND DRC MP INSTALLATION

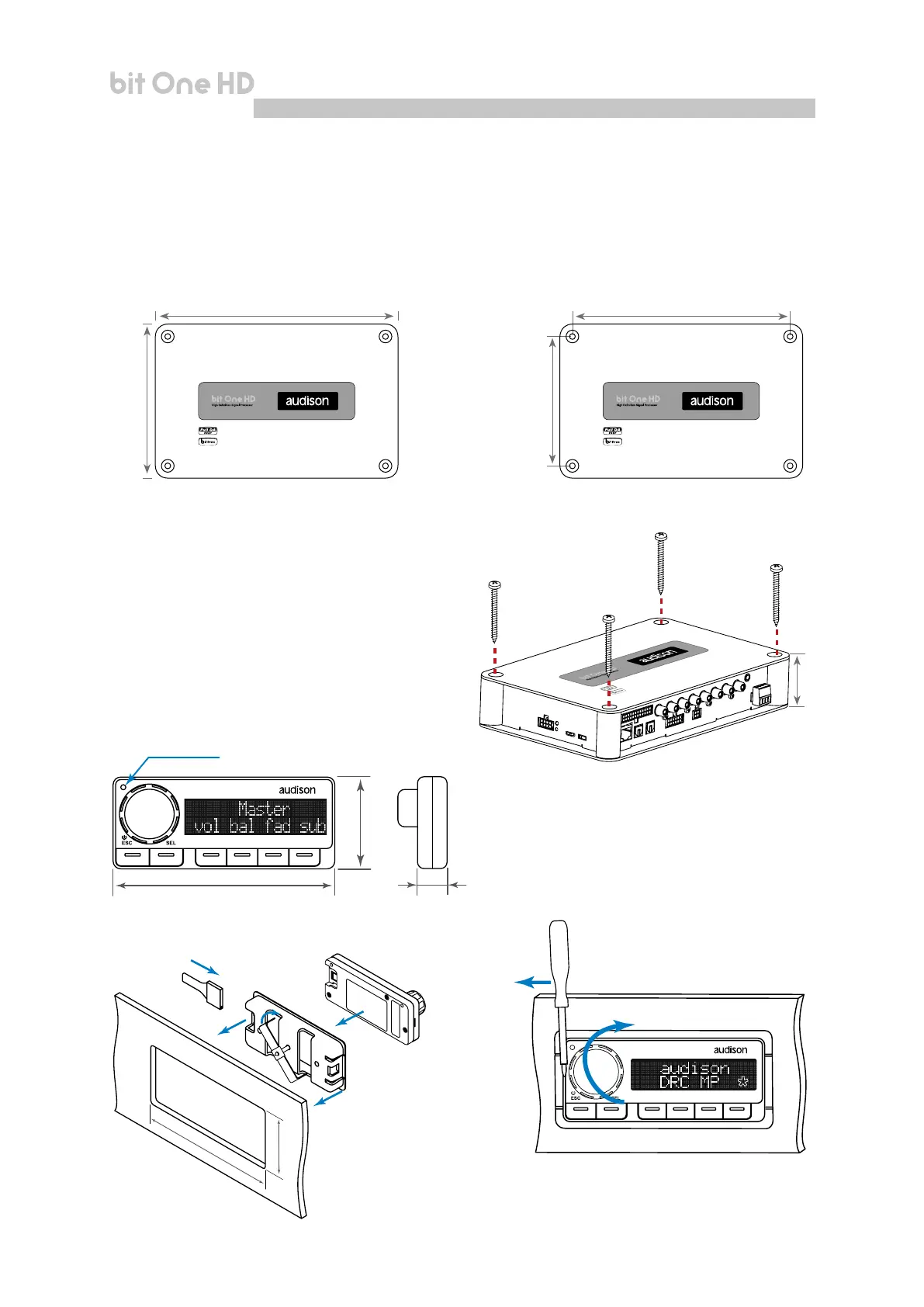

External dimensions
Fixing instructions
How to install the DRC MP
Mounting dimensions
bit One HD:
233 mm / 9.17 in
209 mm / 8.22 in
148 mm / 5.82 in
43,6 mm
1.7 in
4,2 mm x 32 mm
92 mm / 3.62 in
41 mm / 1.61 in
Light sensor
DRC MP:
87 mm / 3.45 in
36 mm / 1.41 in
11 mm / 0.43 in
124 mm / 0.94 in
1
1
4
3
2
2
*
To release the DRC MP from its holder,
use a flat-blade screwdriver for leverage
as shown in the picture.
*
WARNING do not use aggressive cleaning
agents or abrasive cloth to clean the display.
Simply use a soft cotton cloth lightly damped
with water.
