8
USER'S MANUAL
bit One HD /

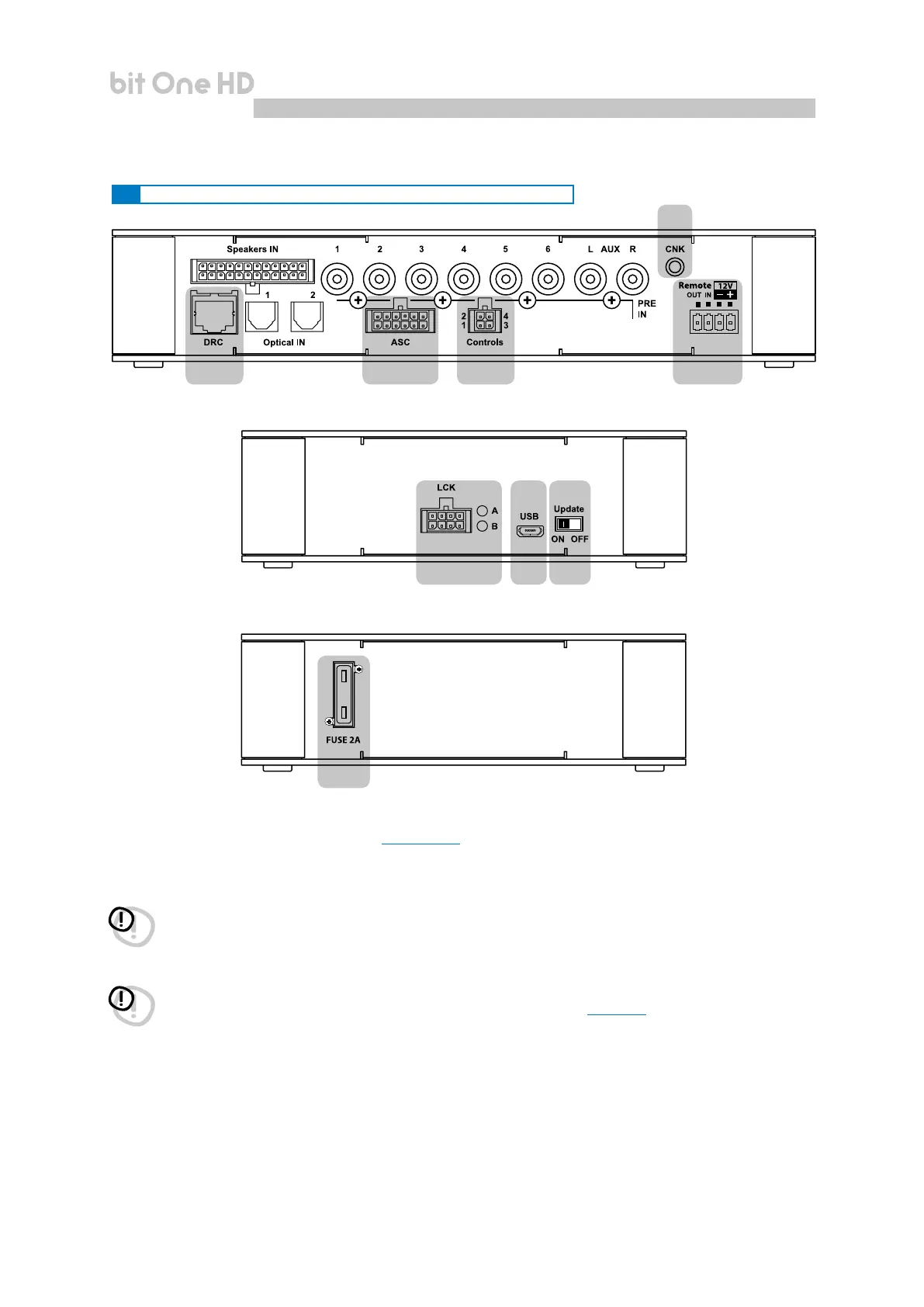

4.3 INPUTS - REMOTE CONTROL OUTPUTS AND POWER SUPPLY
1. POWER SUPPLY / REMOTE IN-OUT (see section 5.1)
+BATT 12V: positive connection terminal for car 12V power supply
-BATT: negative connection terminal for car 12V power supply.
REMOTE IN: for the processor remote turn-on through one or multiple signal sources, featuring Rem Out control.
REMOTE OUT: for the remote turn-on of the other devices/ampliers connected to the processor.
The REMOTE OUT output has a current capability of 130 mA (it can also drive an automotive relay).
The processor only takes 7 seconds to supply the REM OUT to the output after turn on
.
6
9
7 8
WARNING: make sure the connection polarity is as indicated on the terminals. A misconnection may result in
damage to the bit One HD. After applying a 12V power, wait at least 10 seconds before turning the bit One HD on.
WARNING: the
bit One HD
must be switched on before the ampliers connected are turned on. It is necessary
to connect the sources Remote Out to the
bit One HD
Remote In and then the
bit One HD
Remote Out to the
Remote In of the other devices/ampliers connected to the
bit One HD
(section 5.1)
Remark: the Remote Out signal is available on the AC LINK 1 / AC LINK 2 connection plugs and is active to the
ampliers supporting this function (Audison AV ampliers with AV bit IN input).
2. DRC MP: connection plug for the DRC MP (Digital Remote Control), to control the processor’s functions
3. OEM INTERFACE: terminals for future use.
4
5
2 3 4 1
