AUMA SA-UW User Manual

3. Transport, storage and packaging
3.1. Transport
For transport to place of installation, use sturdy packaging.
Suspended load!
Death or serious injury.
→
Do NOT stand below suspended load.
→
Actuators mounted on valves: Attach ropes or hooks for the purpose of lifting
by hoist to valve and NOT to actuator.
→
Actuators mounted to gearboxes: Attach ropes or hooks for the purpose of lifting
by hoist only to the gearbox using eyebolts and NOT to the actuator.
→
Respect total weight of combination (actuator, gearbox, valve)
→
Secure load against falling down, sliding or tilting.
→
Perform lift trial at low height to eliminate any potential danger e.g. by tilting.

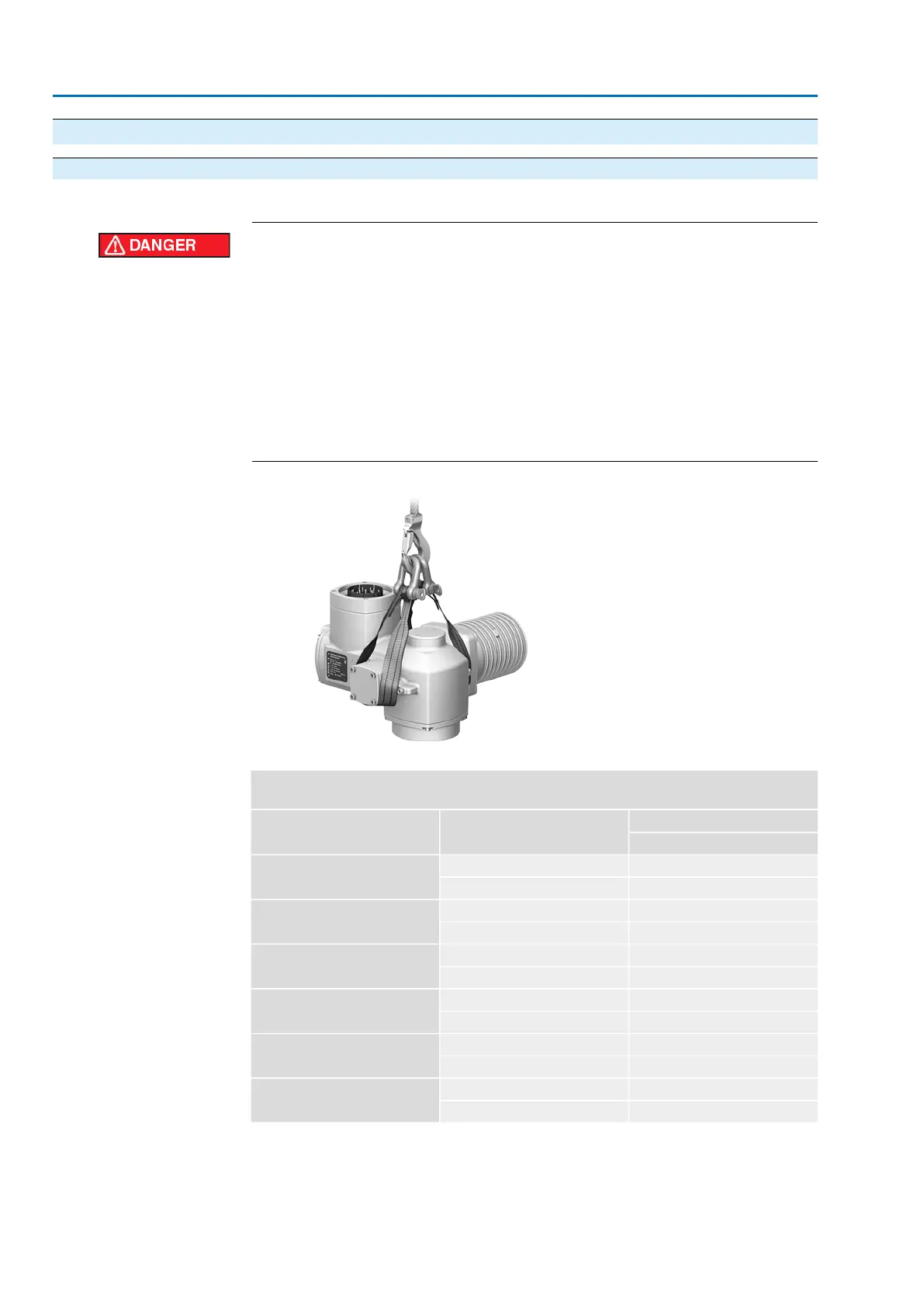

Figure 7: Example: Lifting the actuator
Table 3:
Weights of multi-turn actuator SA 07.2-UW – SA 16.2-UW/ SAR 07.2-UW – SAR 16.2-UW
with 3-phase AC motors
Weight
2)
Motor type
1)
Type designation
Actuator
approx. [kg]
25VD...SA 07.2-UW/
SAR 07.2-UW
26AD...
25VD...SA 07.6-UW/
SAR 07.6-UW
27AD...
31VD...SA 10.2-UW/
SAR 10.2-UW
33AD...
54VD...SA 14.2-UW/
SAR 14.2-UW
58AD...
56VD...SA 14.6-UW/
SAR 14.6-UW
62AD...
72VD...SA 16.2-UW/
SAR 16.2-UW
93AD...
Refer to motor name plate1)
Indicated weight includes AUMA NORM multi-turn actuator with 3-phase AC motor, electrical con-
nection or actuator plug/socket connector incl. cable glands (approx. 2.3 kg) and double sealed in-
2)
termediate frame (approx. 1.2 kg) as well as output drive type B1. For other output drive types, heed
additional weights. Heed weight of cables if plug/socket connector is linked.
10
SA 07.2-UW – SA 16.2-UW / SAR 07.2-UW – SAR 16.2-UW Control unit: electronic (MWG)
Transport, storage and packaging AC 01.2 Non-Intrusive Profinet
