Mounting Instructions
Technical Handbook, AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339, Revision 1, 2020-06-29,
Autronica Fire and Security
Page 45
9. Mounting Instructions
9.1 Cable Entries/Exits on the Protector Base
The protector base features alternative cable entries/exits:
 one Ø25mm cable entry/exit used to feed wiring from inside and
through the ceiling (concealed conduit wiring)
 four cable entries/exits for surface-mounted wiring
9.1.1 Cable Entry for Concealed Conduit Wiring

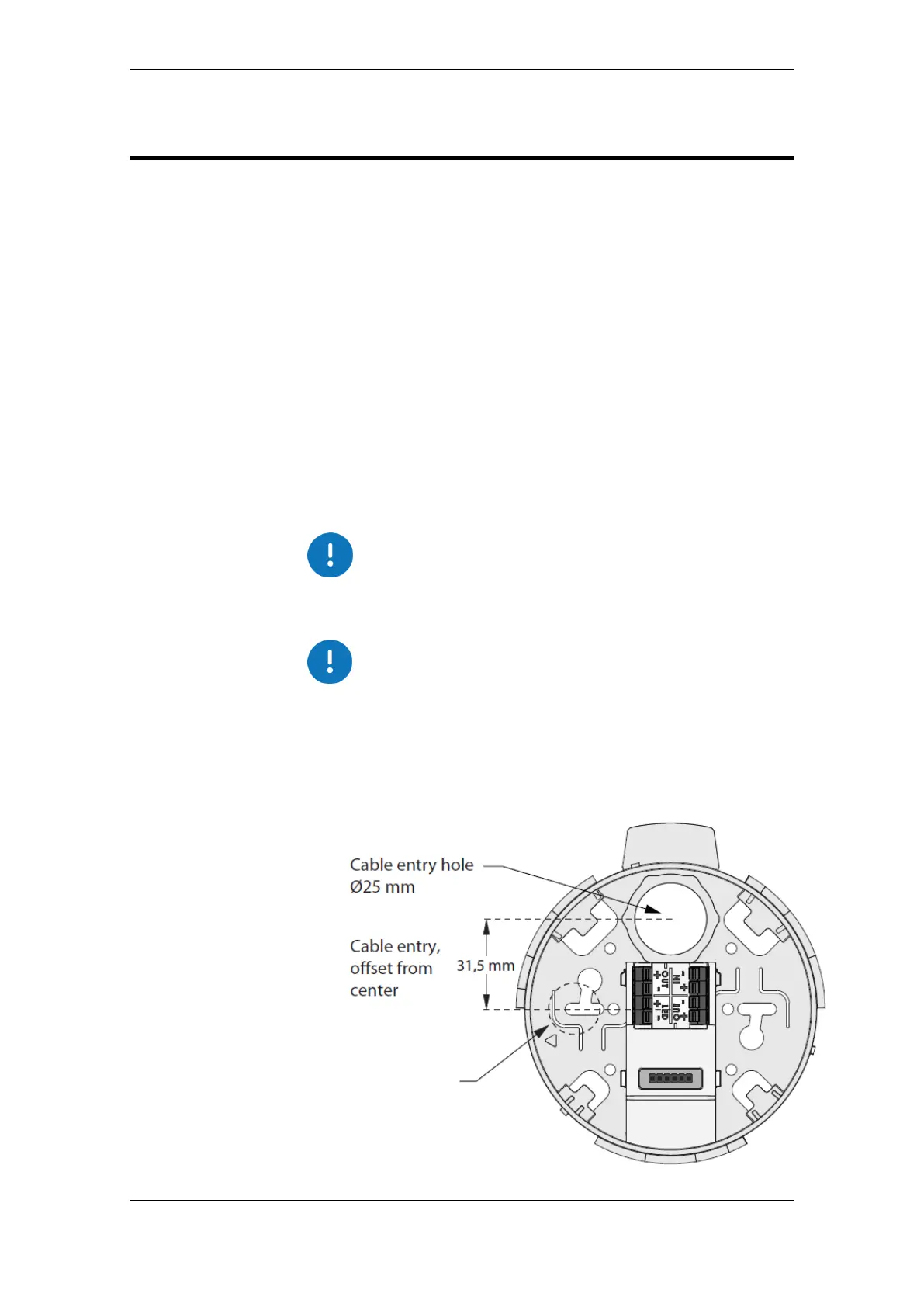

The Ø25mm cable entry (see illustration) is used to feed wiring from
inside the ceiling into the protector base. If necessary, a Ø25mm
cable gland may be mounted in the cable entry.
A cable gland must always be used if there is a potential of damage
to the cable due to sharp edges.
Note that when holes are to be made in the ceiling, take into
consideration that the cable entry of the protector base is not in the
center of the base. (See Template for Marking and Drilling Holes,
chapter 9.2.2).
Location of
Visual
Alarm
Device
