Autronica AutroGuard V-430 User Manual

Mounting Instructions
Technical Handbook, AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339, Revision 1, 2020-06-29,
Autronica Fire and Security
Page 57
9.3.5 Connections - Overview
Connector
Description
Remarks
IN +
Loop + input
IN -
Loop - input
OUT +
Loop + output (Main/Branch)
Note that either of the outputs on the
connector can be used (optional) for the main
loop or a branch-off.
OUT -
Loop - output (Main/Branch)
OUT +
Loop + output (Main/Branch)
OUT -
Loop - output (Main/Branch)
LED +
Remote LED + output
LED connection to external LED indicator.
Maximum 5 mA.
LED -
Remote LED - output
9.3.6 Loop Connections

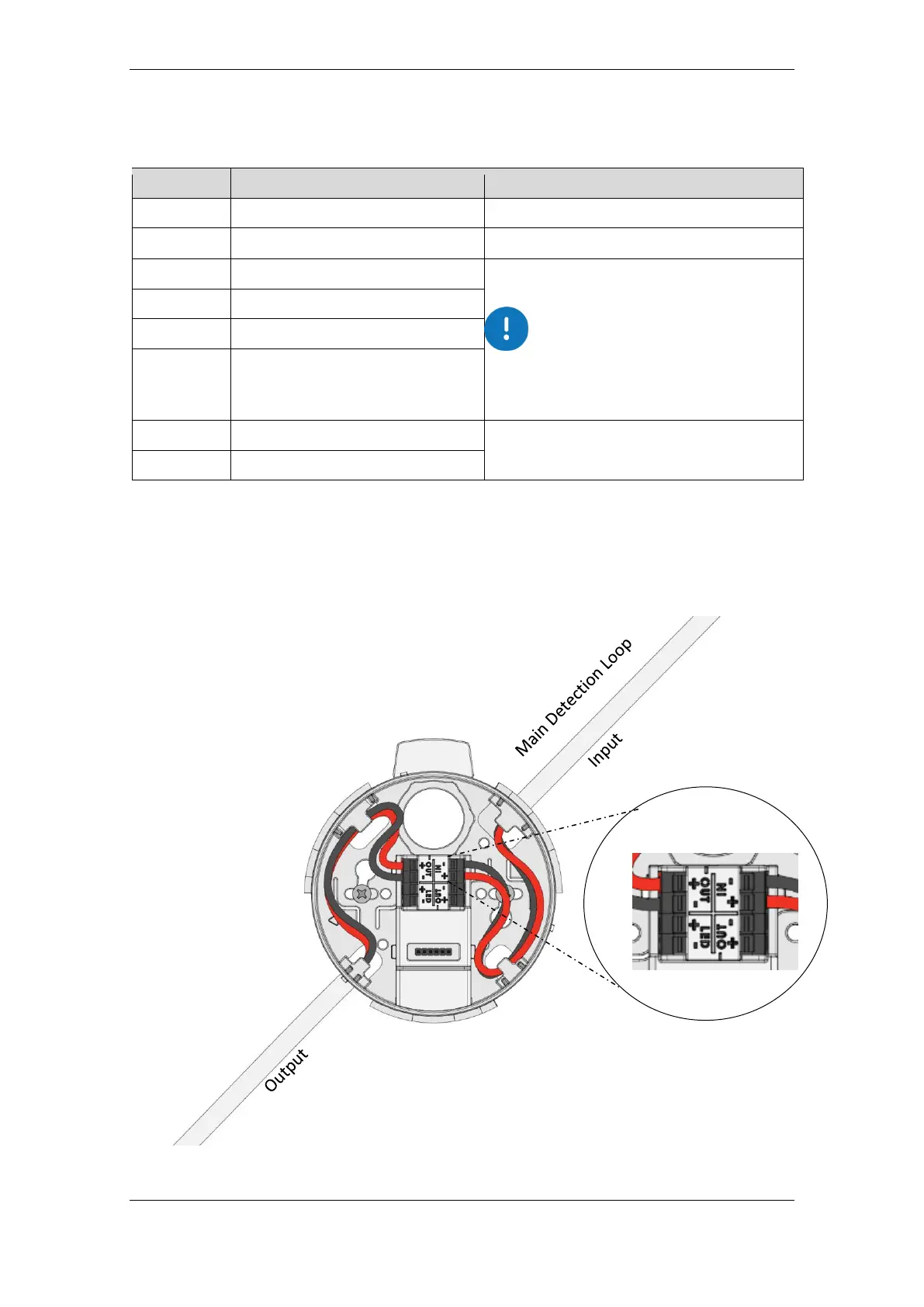

The connection of the loop cables is shown below. In the example
below, the cables are fed through cable entries/exits used for
surface-mounted cabling.
