Mounting Instructions
Technical Handbook, AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339, Revision 1, 2020-06-29,
Autronica Fire and Security
Page 48

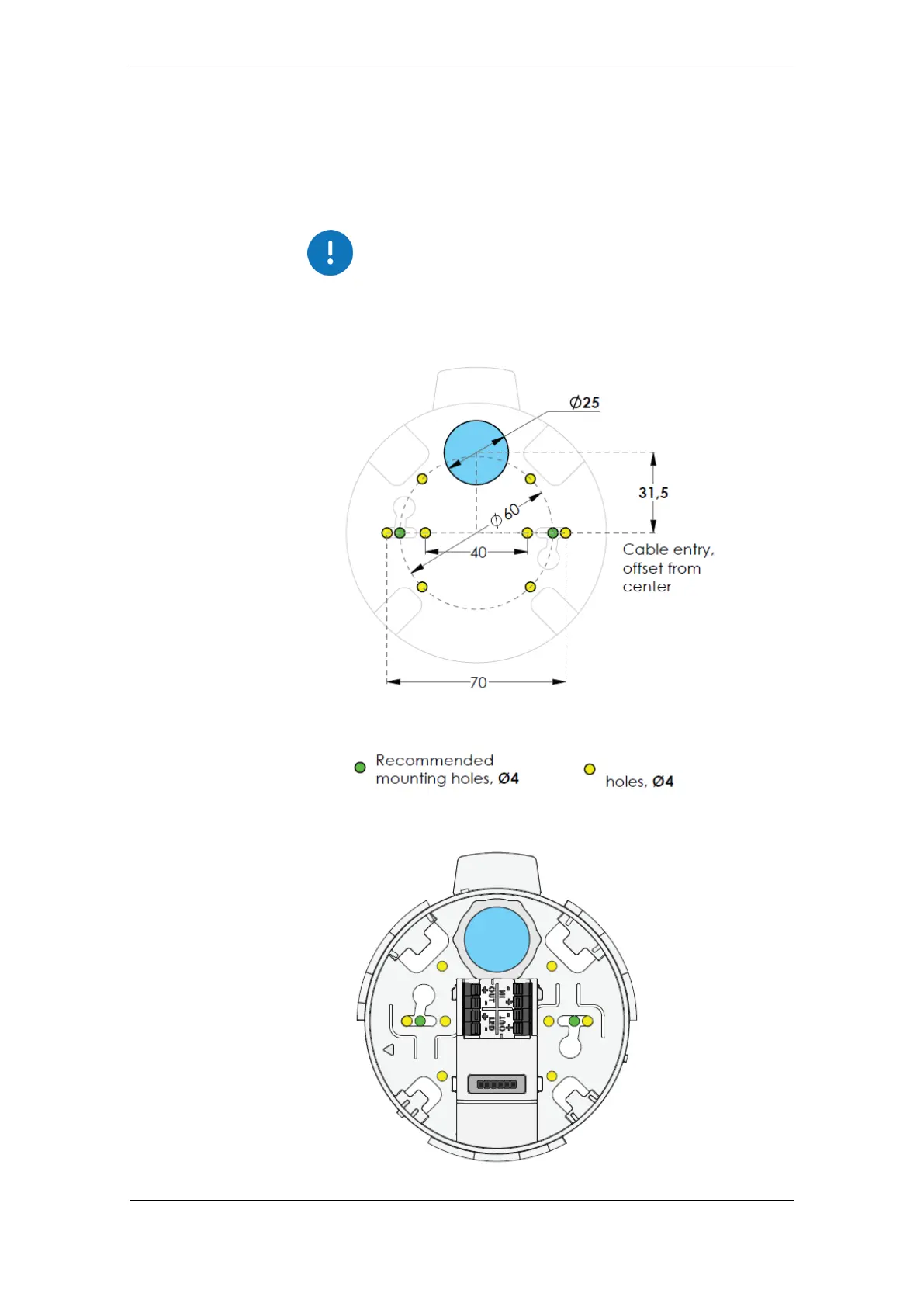

9.2.2 Template for Marking and Drilling Holes
On the bottom of the protector base’s packaging box you will find a
1:1 template intended for use when marking and drilling holes for
installation of the protector base. (Dimensions shown in mm).
Note that the template shown below is not at a scale of 1 to 1, and is
used for reference only. For installation purposes, only use the 1:1
template printed on the protector base’s packaging box.
Location of
cable entry in
base
