Mounting Instructions
Technical Handbook, AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339, Revision 1, 2020-06-29,
Autronica Fire and Security
Page 55
9.3.3 Wire Insulation Stripping
For proper connection, 8mm of wire insulation must be stripped.
When stripping cable insulation from wires, note that as a guidance,
a mark on the the connector indicates the wire insulation stripping
length.

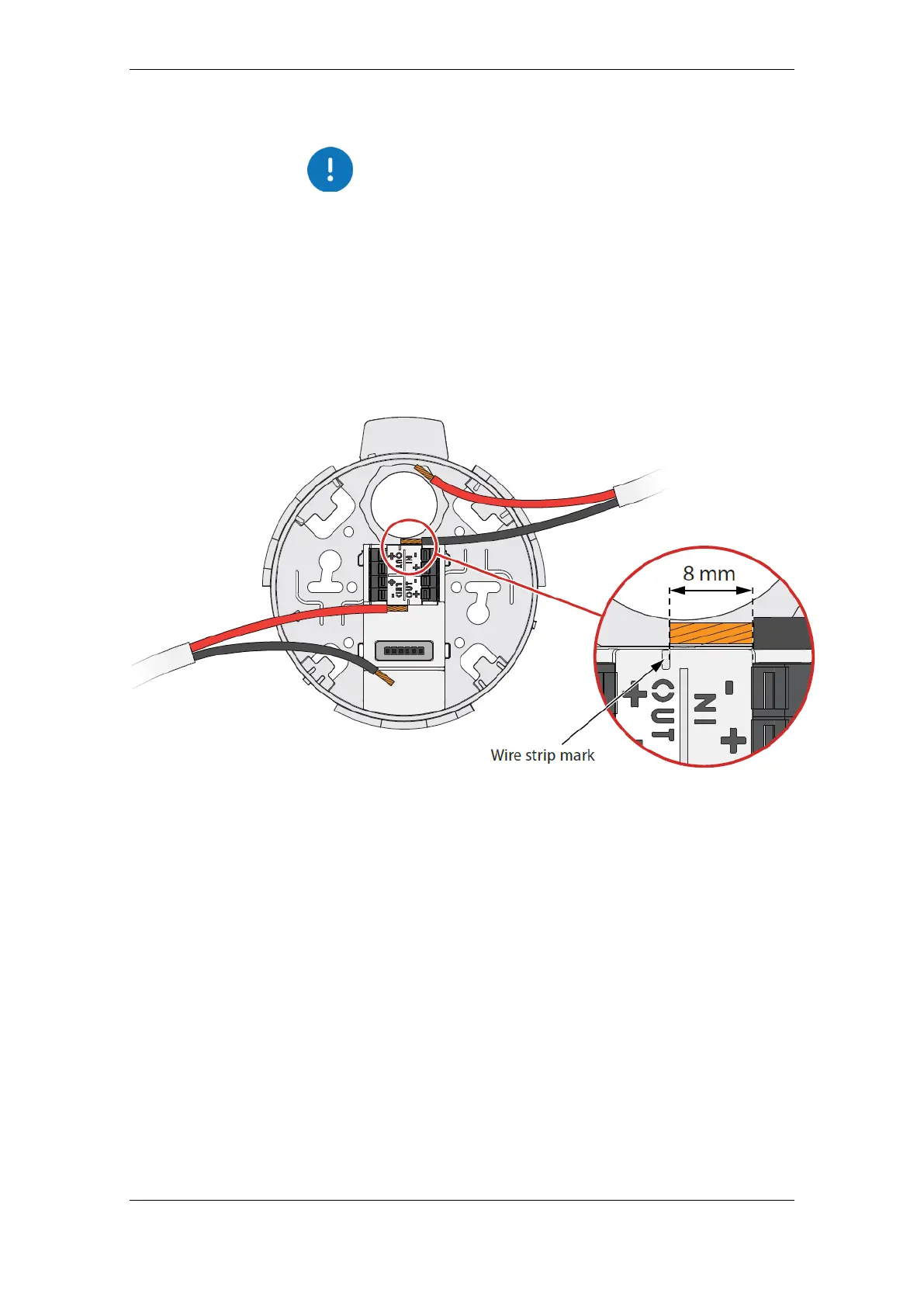

 Measure the length from the edge of the connector to the strip
mark indicated on the drawing
 Use a wire stripping tool to strip the cable
