Autronica AutroGuard V-430 User Manual

Mounting Instructions
Technical Handbook, AutroGuard Multicriteria Protector Series V-430, V-530, V-100, V110 and V-120,
AutroGuard-Technical-Handbook, Doc-1004339, Revision 1, 2020-06-29,
Autronica Fire and Security
Page 60

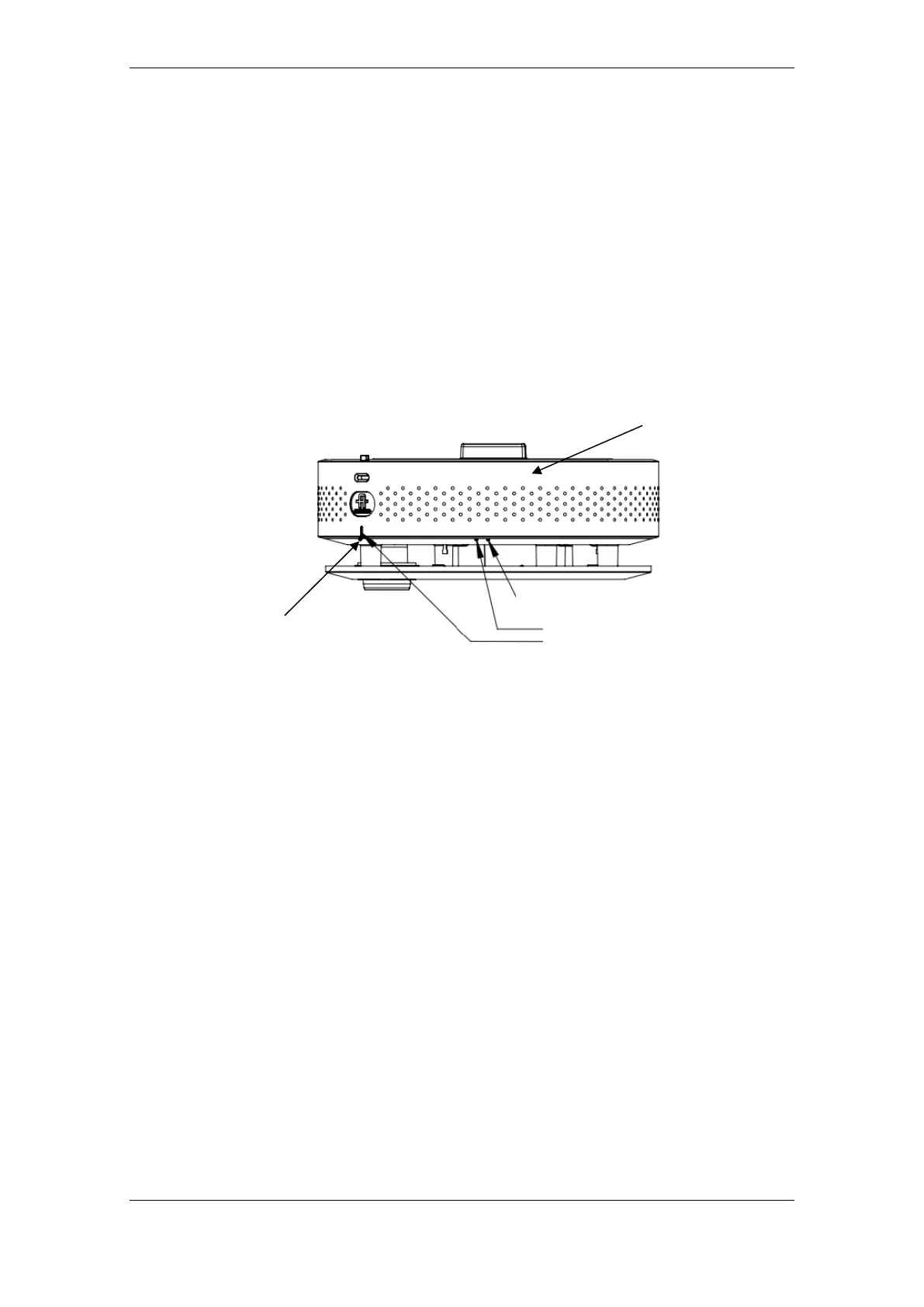

9.4 Alignment Marks on the Protector
Before mounting the protector onto the base, observe the alignment
marks on the protector shown in the illustration below (Autronica
can provide a video showing the mounting of the protector on the
protector base).
The alignment mark on the rotatable bayonet ring is to be aligned
with one of the three different alignment marks located on the
protector:
1) Open (prepared for mounting onto the base)
2) First stop (fastened to the base)
3) Locked stop (locked to the base)
Doc-1003452
2. First stop
3. Locked stop
1. Open position
Alignment mark on bayonet ring
Rotatable
bayonet ring
