APPENDIX F RS-485 VNETWORKER
The following diagram is a basic connection layout of the Vnetorker and VSI-Pro when used with a PC controller.
All functions of the VSI-Pro locally operate normally and as a stand alone VSI-Pro. However the Vnetworker is
placed between the VSI-Pro and the register so it can disable the serial connection to the VSI-Pro and control it
for programming useage.
Vnetworker Software
The basic software of the Vnetworker is a macro set of the Networker software. The additional features allow the
user to interactively program the VSI-Pro.

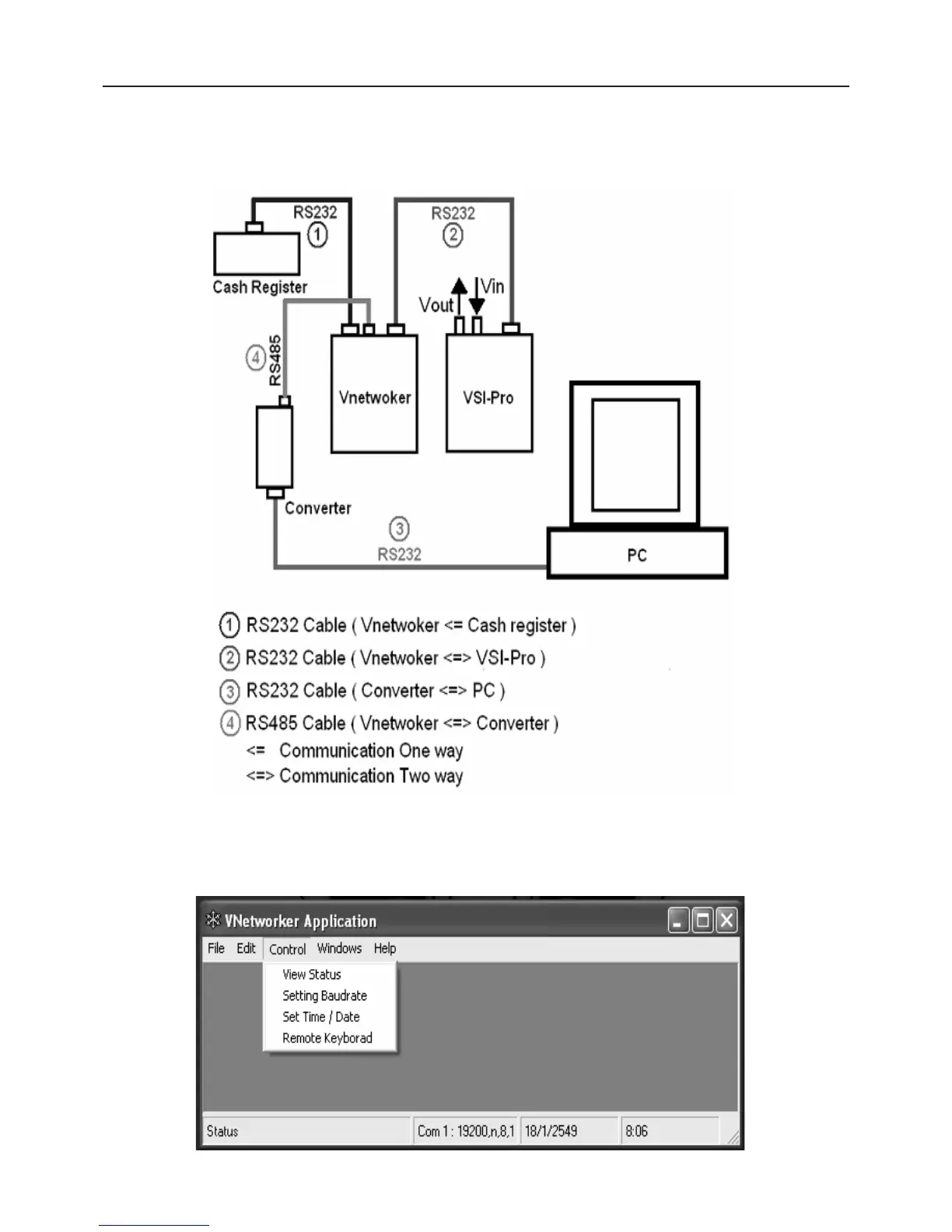

Figure : Vnetworker Connection Diagram
Figure : Vnetworker Main Menu
