MBOX Control Software Overview
34

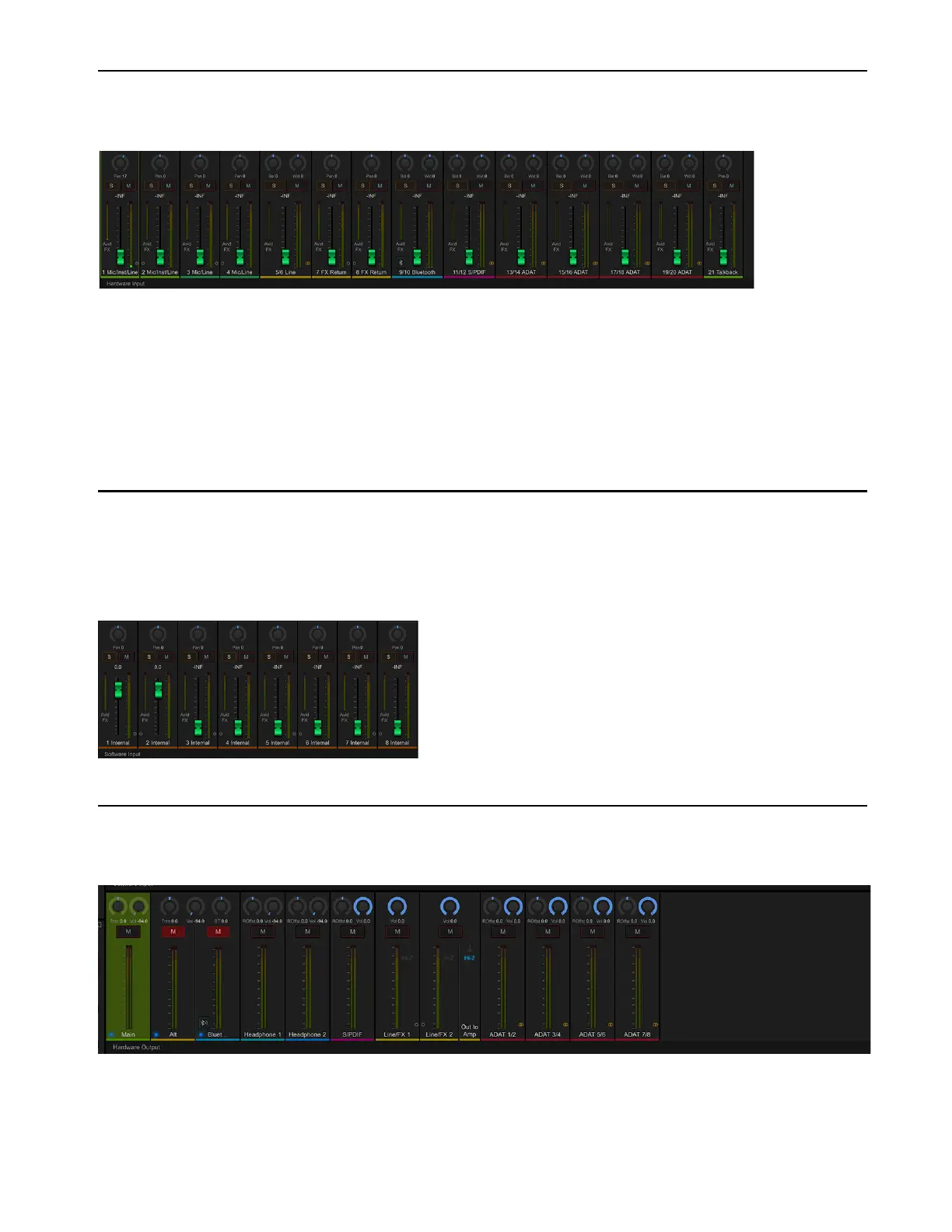

Hardware Input
The Hardware Input section shows fader strips for all MBOX hardware inputs. The view is scrollable left and right.
Each fader strip provides a Pan knob, Solo and Mute buttons, input meter(s), and Avid FX Send level meters. Each fader adjusts the out-
put level of the input channel (the level fed to MBOX output mixes). These controls mirror the same settings in the Channel Focus tab,
letting you adjust pan, solo, and mute even when a channel is not the current channel focus.
Adjacent channels can be stereo-linked (see Stereo Linking). Double-clicking on a channel strip collapses it to a narrow view, to con-
serve screen real estate. Double-click again to expand.
For more information on these and all other input controls, see Channel Focus.
Software Input
The Software Inputs section shows fader strips for all “internal” inputs (software inputs from Pro Tools). In Pro Tools, these appear as
MBOX Send 1–2, MBOX Send 3–4, and so on. These controls mirror those in Channel Focus when a Software Input is selected.
Double-clicking on a channel strip collapses it to a narrow view, to conserve screen real estate. Double-click again to expand.
Hardware Output
The Hardware Output section shows fader strips for all MBOX hardware outputs.
Clicking to select an output shows the current levels and settings for that output mix. Fader caps change color to match that of the se-
lected output. Double-clicking a channel strip collapses it to a narrow view, to conserve screen real estate. Double-click again to expand.
Hardware Input
Software Input
Hardware Output
