Control Panel Features: All 2U and 4U Chassis
Control Panel Features on all 2U and 4U Chassis

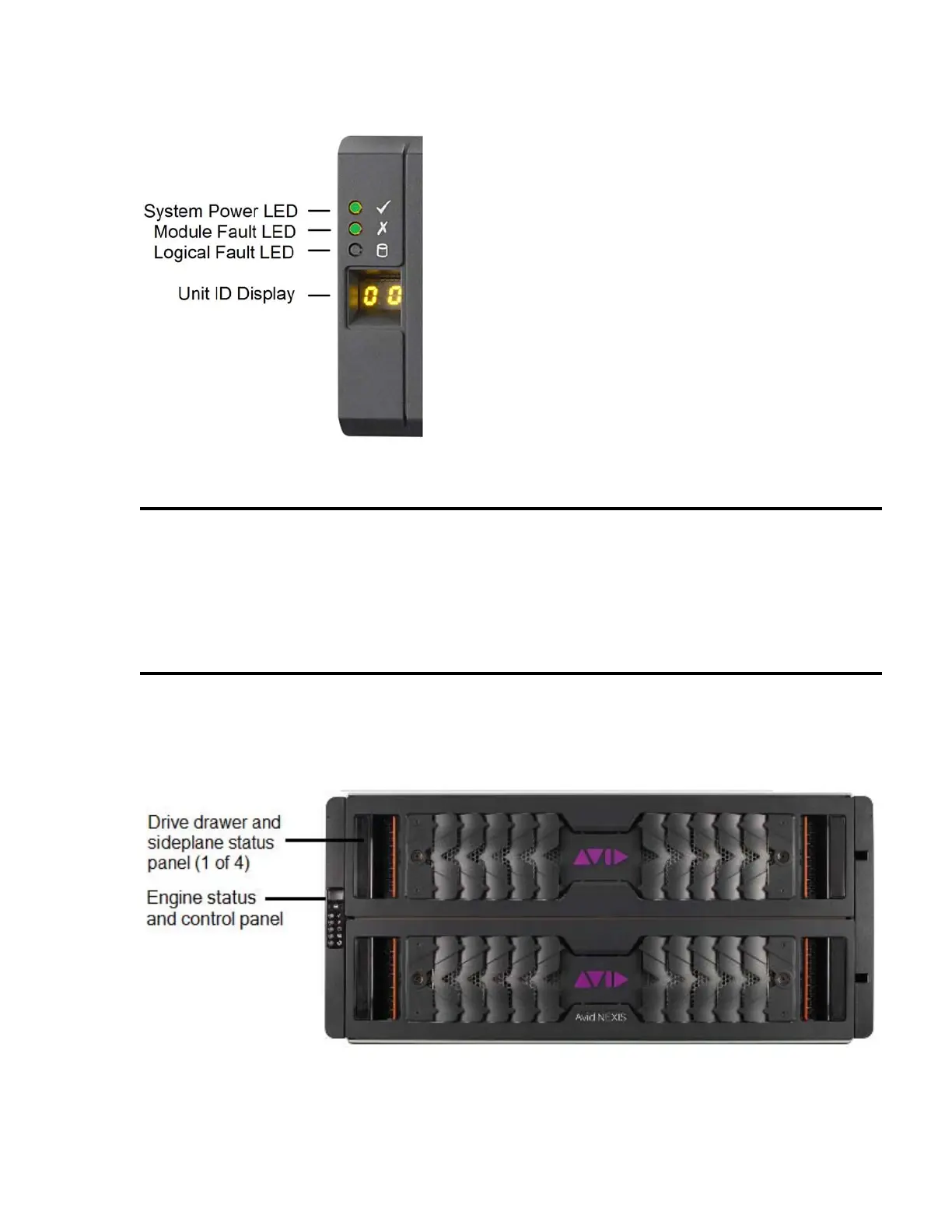

Avid NEXIS | E5 Engine Front View
On the Avid NEXIS | E5, the bezels are attached at the factory and do not need to be removed for any system
maintenance procedures.
Description Status/Purpose
System Power LED Green when system is on (operational).
Amber when system is in standby mode (not operational).
Module Fault LED Amber when there is a system hardware fault. In that case, another LED on the faulty component
may be lit.
Logical Fault LED Amber when something other than the enclosure management system (usually a drive) fails.
Enclosure ID Display Displays the enclosure identification number (optional; useful with multiple enclosure systems)
