To insert a cooling module:
1. Position the cooling module so that the red release latch and handle are on the right-hand side.
2. Slide the cooling module into its slot until the latch clicks in place. The Engine will automatically detect and
make use of the new unit.
Replacing a Power Supply (E5)
The Avid NEXIS | E5 is the only Avid NEXIS Engine with power supplies that are separate from the cooling
modules. The Avid NEXIS | E5 is designed to continue working with only one of the two power supplies.
n
Make sure you have a replacement before removing a failed component to maintain proper airflow. When the
Engine power is left on, insert the new power supply within two minutes after removing the defective power
supply.
To remove a power supply:
1. Identify the power supply to be removed. If the module has failed, the fan fault LED will be lit amber.

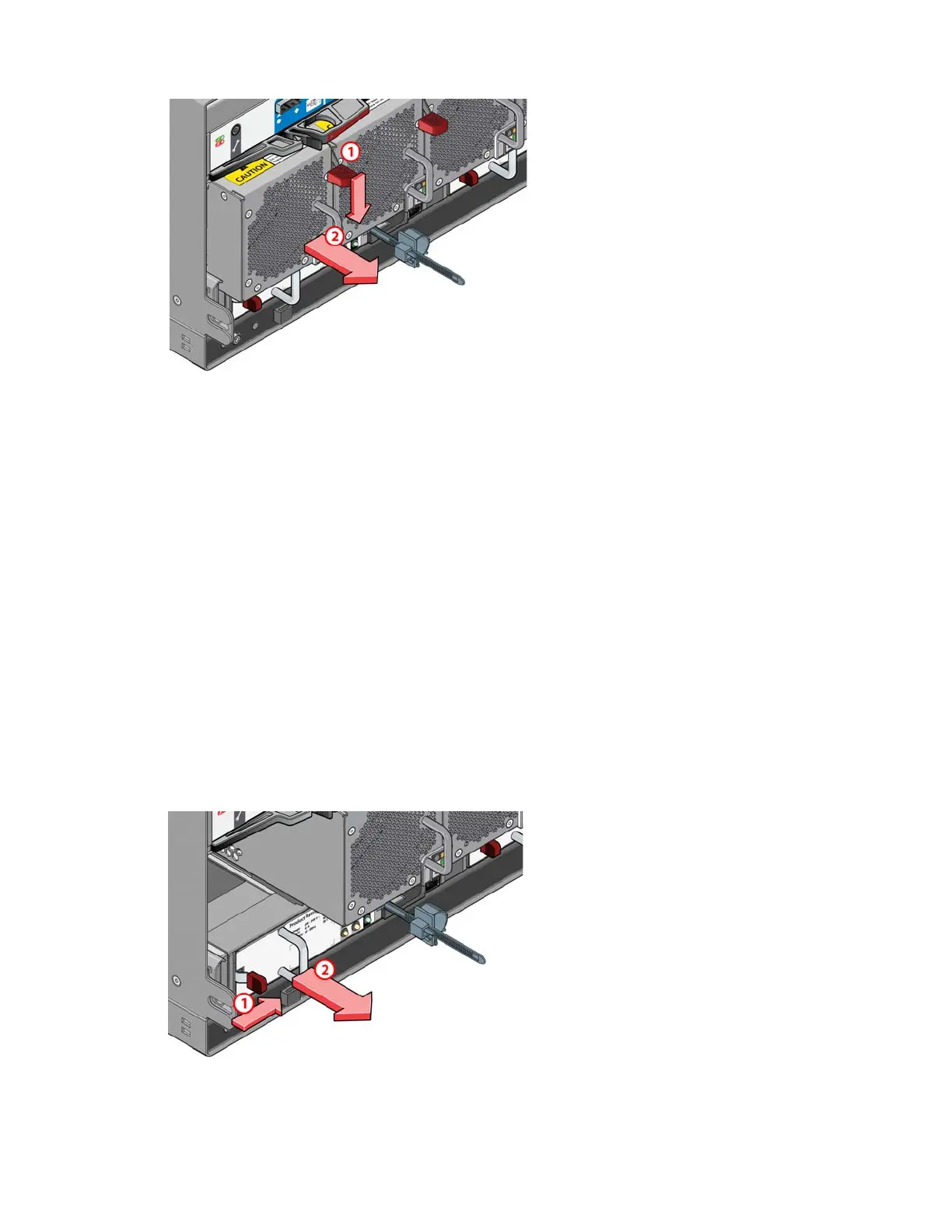

2. Push the red release latch to the right and hold it (callout 1 in the following figure), then pull the module out
by its handle (callout 2).
