Avid NEXIS | E5 Drive Drawer and Sideplane Status Panel

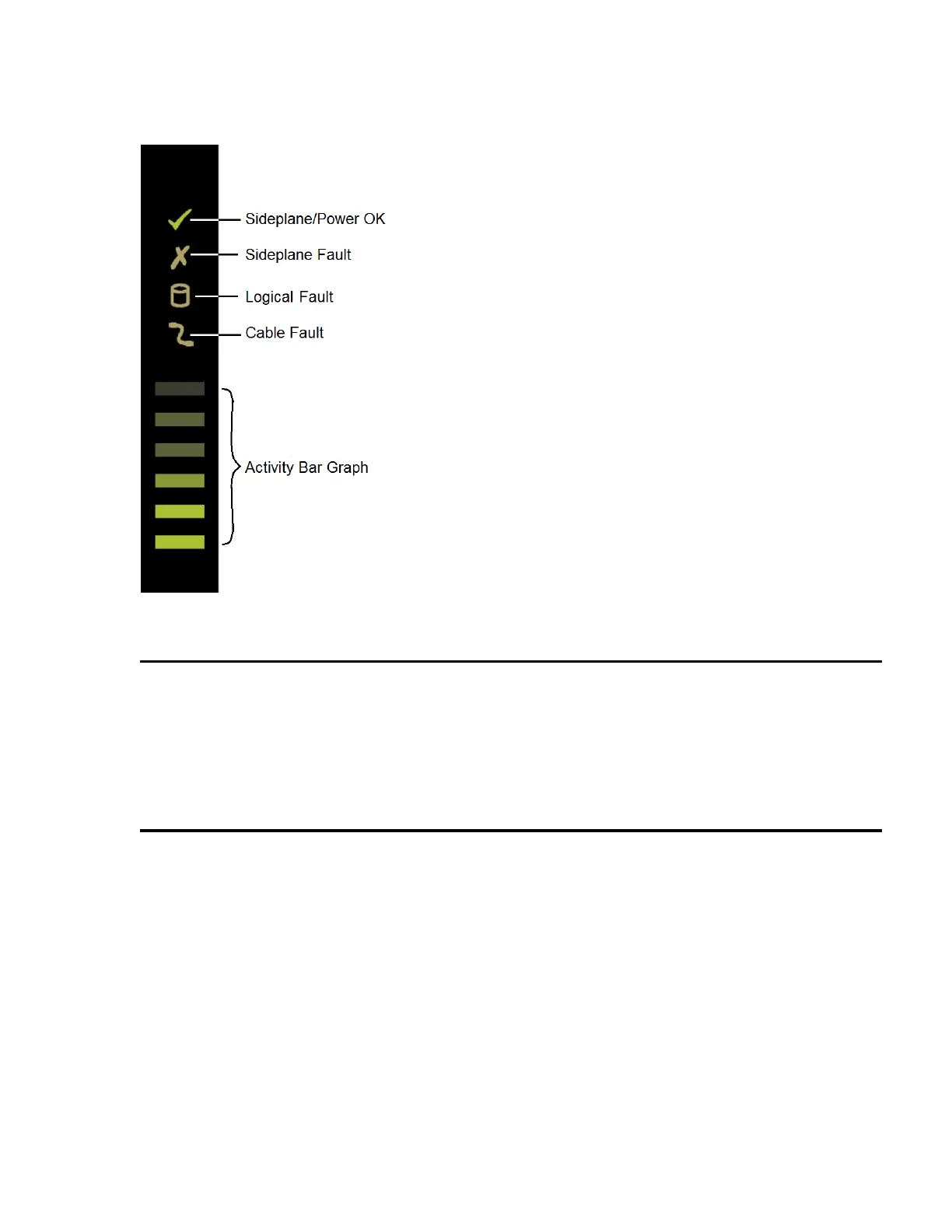

Avid NEXIS | E5 Drive Drawer and Sideplane Status Features
Avid NEXIS | E5 Rear View
The rear of the Avid NEXIS | E5 provides access to the Controller, power supplies, and fans. In a single-Controller
configuration, the Controller must be installed in the left-hand slot (Controller 0 in the figure below).
Description Status/Purpose
Sideplane and Power OK Green when the sideplane card is working and there are no power problems
Sideplane Fault Amber if a drive has failed
Logical Fault Flashes amber if one or more RAID sets have failed drives
Cable Fault Amber if the cable between the drawer and the back of the enclosure has failed
Activity bar graph Shows the amount of data I/O from zero segments lit (no I/O) to all six segments lit
(maximum I/O)
