764W PCM (All 2U Chassis including System Director Appliance)
n

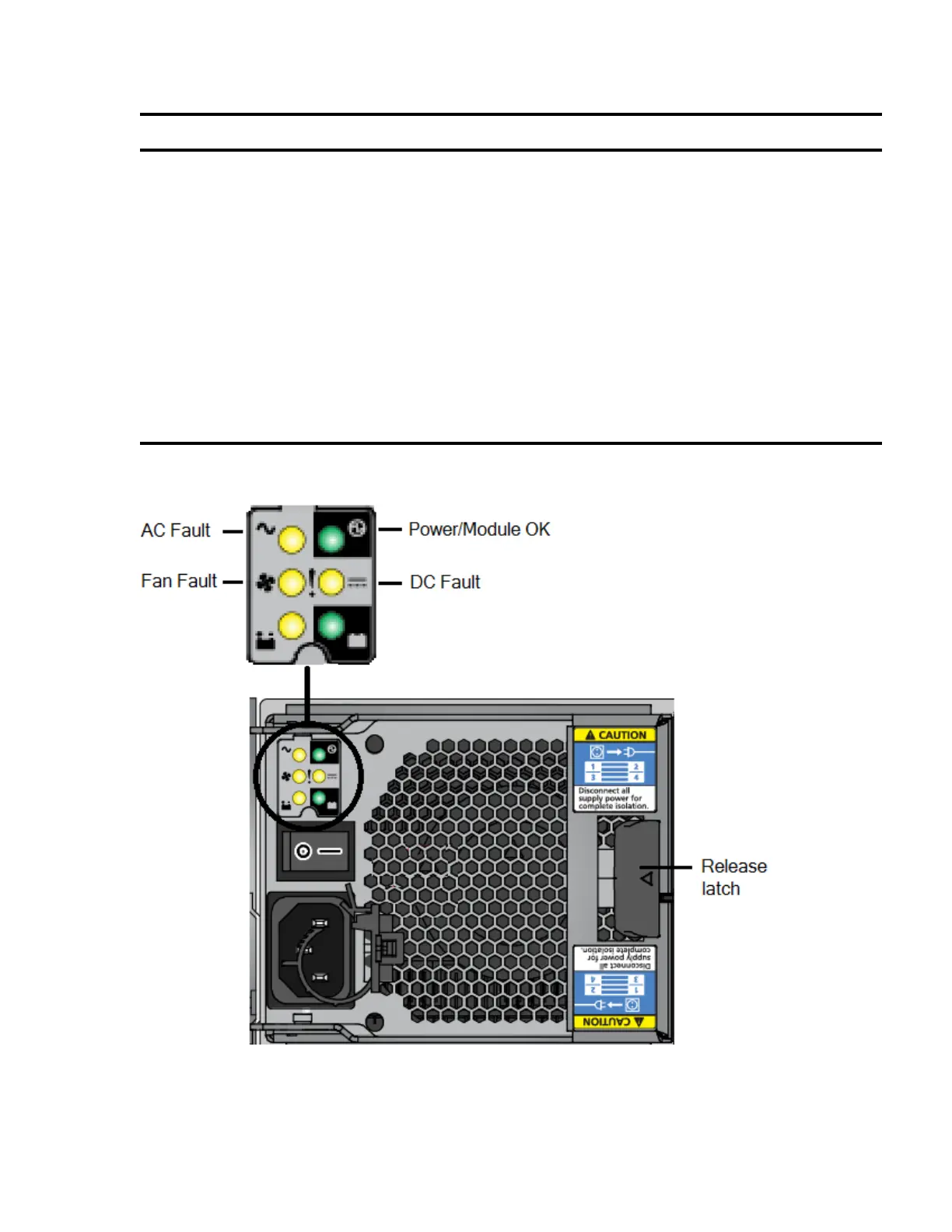

The bottom two LEDs, marked with battery icons, are not used.
Chassis Operation
Avid NEXIS | PRO,
Avid NEXIS | E2,
Avid NEXIS | E2 SSD,
Avid NEXIS | SDA
1+1 redundant configuration, meaning the system remains running even if one PCM fails.
For maximum protection from power loss, both PCMs must be plugged in to separate
electrical circuits or separate UPS devices and turned on. With both PCMs plugged in and
turned on, the system balances its power needs between them. If one PCM fails, the system
can continue operating.
Avid NEXIS | E4 2+2 redundant configuration, meaning the system remains running even if any two PCMs
fail.
For maximum protection from power loss, each pair of PCMs must be plugged in to separate
electrical circuits or separate UPS devices (for example, two on circuit A and two on circuit
B), and all must be turned on. With all four PCMs plugged in and turned on, the system
balances its power needs among them.
Avid NEXIS | E5 1+1 redundant configuration, meaning the system remains running even if one PCM fails.
The Avid NEXIS | E5 can run with only two of the five fans.
