Digital I/O Connections
Ethernet, RJ45 Connector, Gigabit
Pin 1 BI_DA+
Pin 2 BI_DA–
Pin 3 BI_DB+
Pin 4 BI_DC+
Pin 5 BI_DC–
Pin 6 BI_DB–
Pin 7 BI_DD+
Pin 8 BI_DD–
Analog I/O Connections

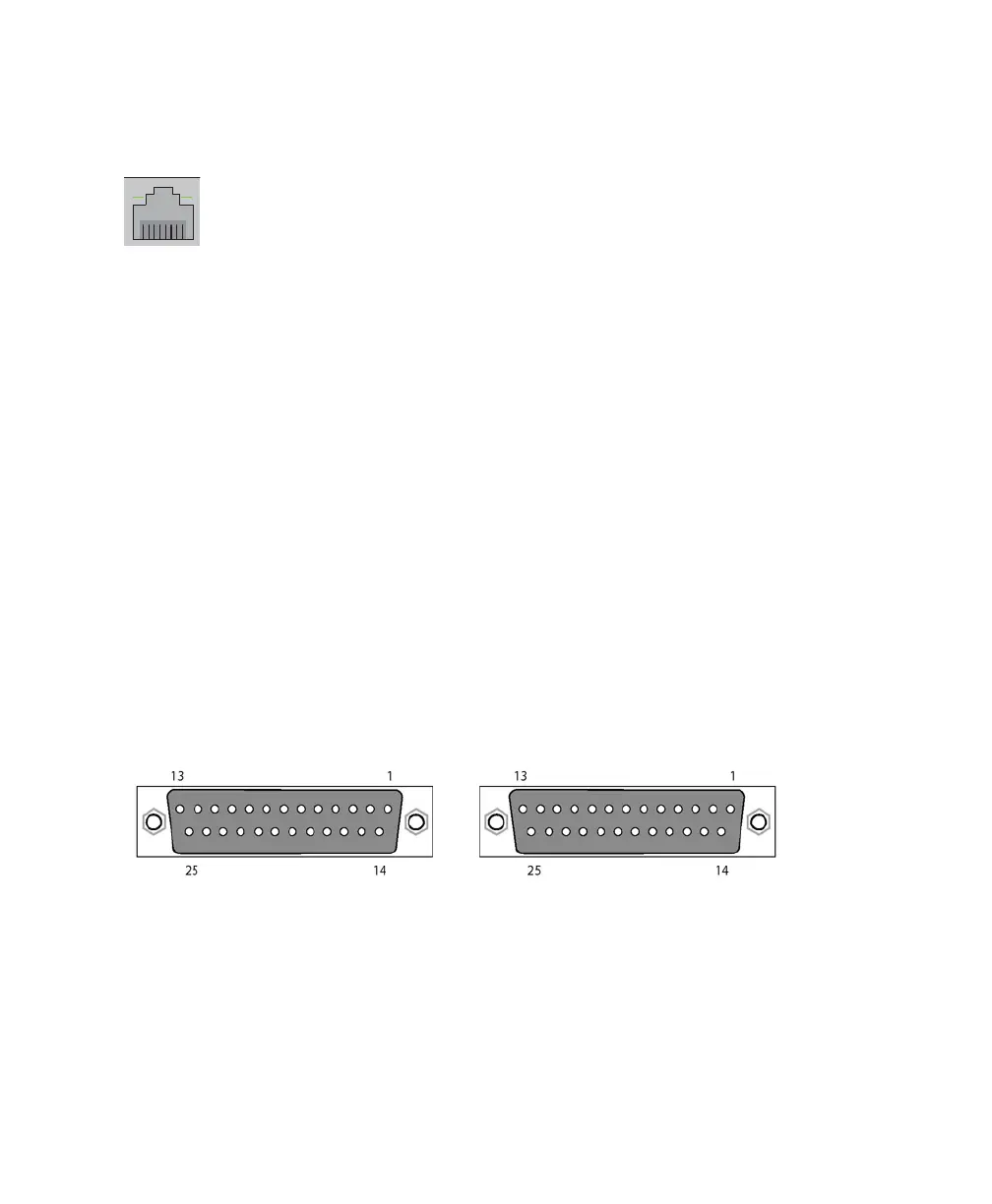

Analog I/O 25-pin Female D-sub Connectors
MTRX Studio uses 25-pin D-sub connectors on the back panel for both analog line input (channels 1–8 and
9–16) and analog line output (channels 1–8 and 9–16).
8-channel Analog In 8-channel Analog Out
