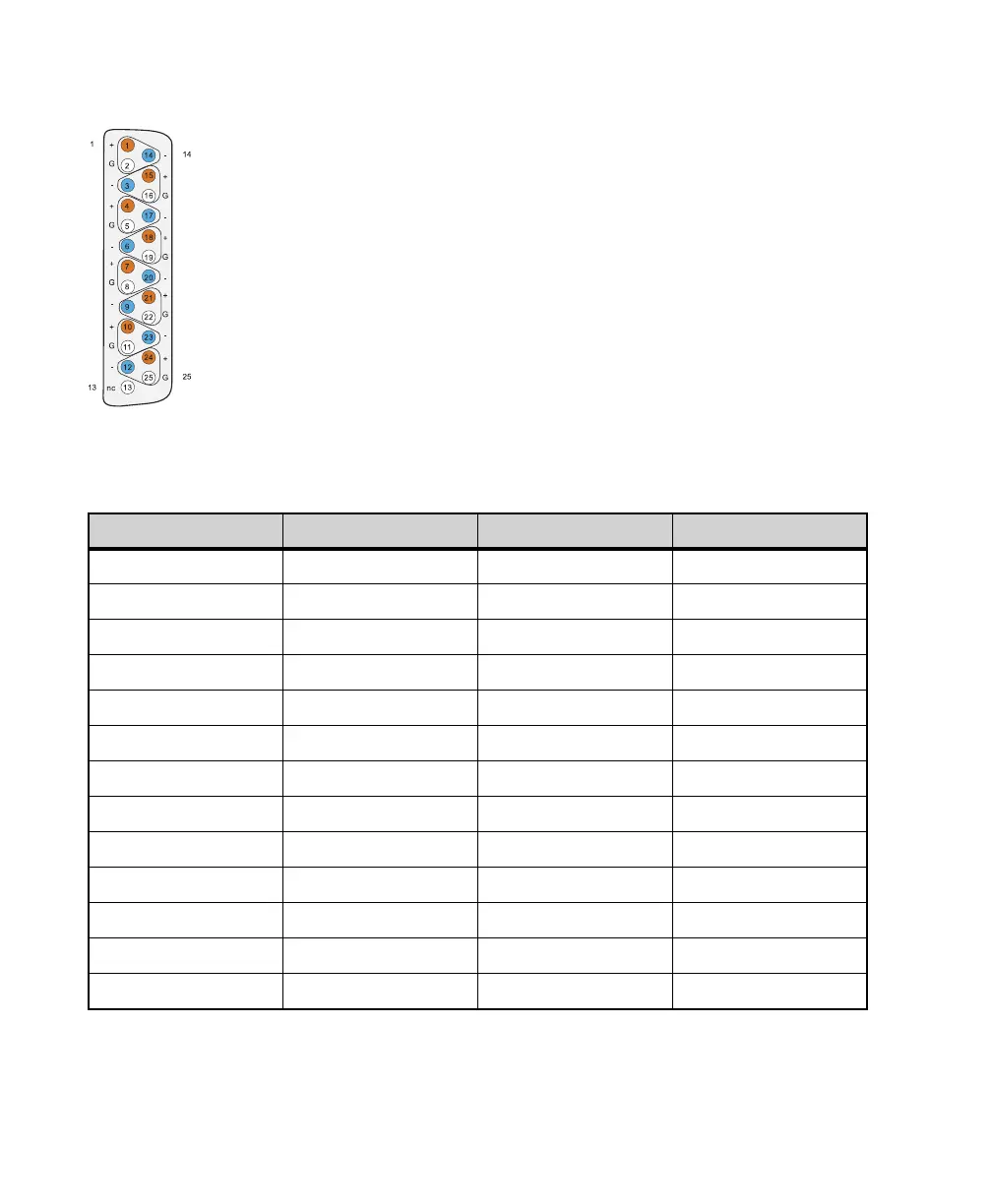

Pro Tools | MTRX Studio Installation Guide28

Connections Channels 1–8

Connections for the 25-pin D-sub connector are listed in the table below. The pinning is according to the

proprietary standard by Tascam.

Pin number Function Pin number Function

1 AIN/OUT 8 + 14 AIN/OUT 8 –

2 GND 15 AIN/OUT 7 +

3 AIN/OUT 7 – 16 GND

4 AIN/OUT 6 + 17 AIN/OUT 6 –

5 GND 18 AIN/OUT 5 +

6 DOUT 2/6 + 19 GND

7 AIN/OUT 4 + 20 AIN/OUT 4 –

8 GND 21 AIN/OUT 3 +

9 AIN/OUT 3 – 22 GND

10 AIN/OUT 2 + 23 AIN/OUT 2 –

11 GND 24 AIN/OUT 1 +

12 AIN/OUT 1 – 25 GND

13 N.C.
