2.
Use
the
provided
mounting
template
to
drill
four
mounting
holes
into
the
mounting
surface.
l
If
you
are
using
the
rear
cable
entry
hole,
also
drill
the
cable
entry
hole
into
the
mounting
surface.

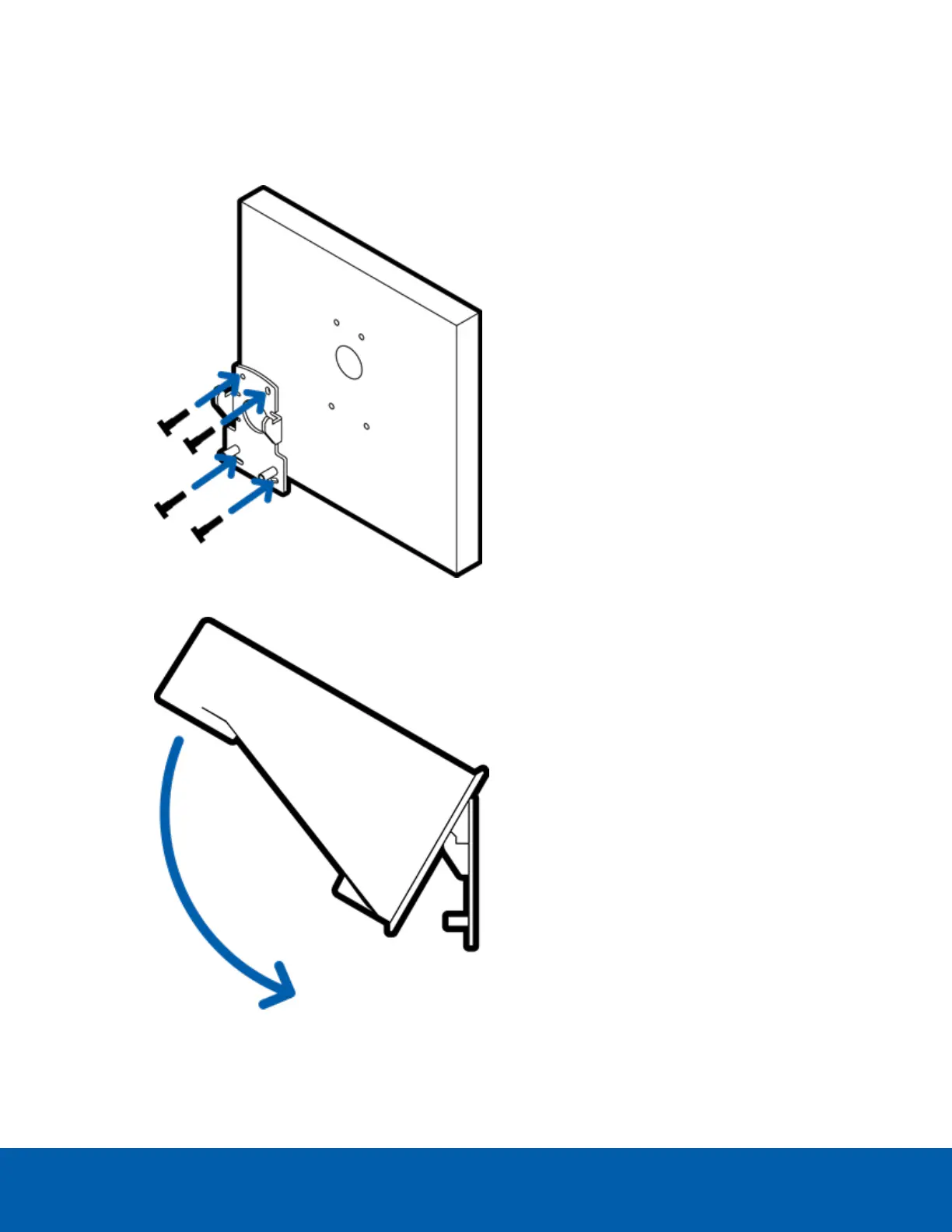

3.
Fasten
the
pendant
wall
mount
bracket
to
the
mounting
surface.
4.
Insert
the
pendant
wall
mount
over
the
bracket
mounting
tabs.
Mounting
the
Camera
to
the
Pendant
Wall
Mount
27
32
34
Table of Contents
Table of Contents
5
Overview
7
Cover View
7
Internal View
8
Junction Box View
9
Mounting Plate View
10
Pendant Camera View
11
NPT Adapter View
12
Pendant Wall Mount Bracket View
13
Pendant Wall Mount View
14
Preparing the Installation
15
Pre-Deployment In-Box Configuration
15
Removing the Dualhead Cover
16
Mounting and Aiming Video Analytics Cameras
17
Inserting Cables through the Sealing Grommet
17
Surface Mount Installation
18
Required Tools and Materials
18
Camera Package Contents
18
Installation Steps
18
Mounting the Camera to a Ceiling or Wall
19
Connecting Cables
21
Installing the Dual Head Cover
22
Junction Box Installation
24
Required Tools and Materials
24
Camera Package Contents
24
Installation Steps
24
Using the Junction Box Mounting Adapter
25
Installing the Camera Base into the Junction Box
27
Connecting Cables
28
Installing the Dual Head Cover
29
Pendant Mount Installation
31
Required Tools and Materials
31
Camera Package Contents
31
Installation Steps
31
Mounting the Camera to a Pipe
31
Mounting the Camera to the pendant Wall Mount
32
Installing the Camera into the NPT Adapter
35
Connecting Cables
37
Installing the Dual Head Cover
38
Connecting to the Camera
40
Initializing a Camera Username and Password
40
Assigning an IP Address
40
Accessing the Live Video Stream
41
Aiming the Dual Head Camera
41
Zooming and Focusing the Dome Camera
42
(Optional) Configuring Onboard Storage
43
Configuring the Camera
43
For more Information
43
Cable Connections
44
Connecting to External Audio and I/O Devices
44
Connection Status LED Indicator
45
Troubleshooting Network Connections and LED Behavior
45
Resetting to Factory Default Settings
47
Setting the IP Address Using the Arp/Ping Method
48
Cleaning
49
Dome Bubble
49
Body
49
Limited Warranty and Technical Support
50
