5. Pull the required cables through the preferred cable entry hole on the pendant wall mount.
l
If you are using the pipe entry hole, pull the cables through the pipe conduit then the wall
mount. Next, apply thread seal tape to the pipe conduit and screw it into the pipe entry hole.
6. Tighten the wall mount screws to secure the wall mount to the bracket. Use the T20 star-shaped key
provided in the camera package.

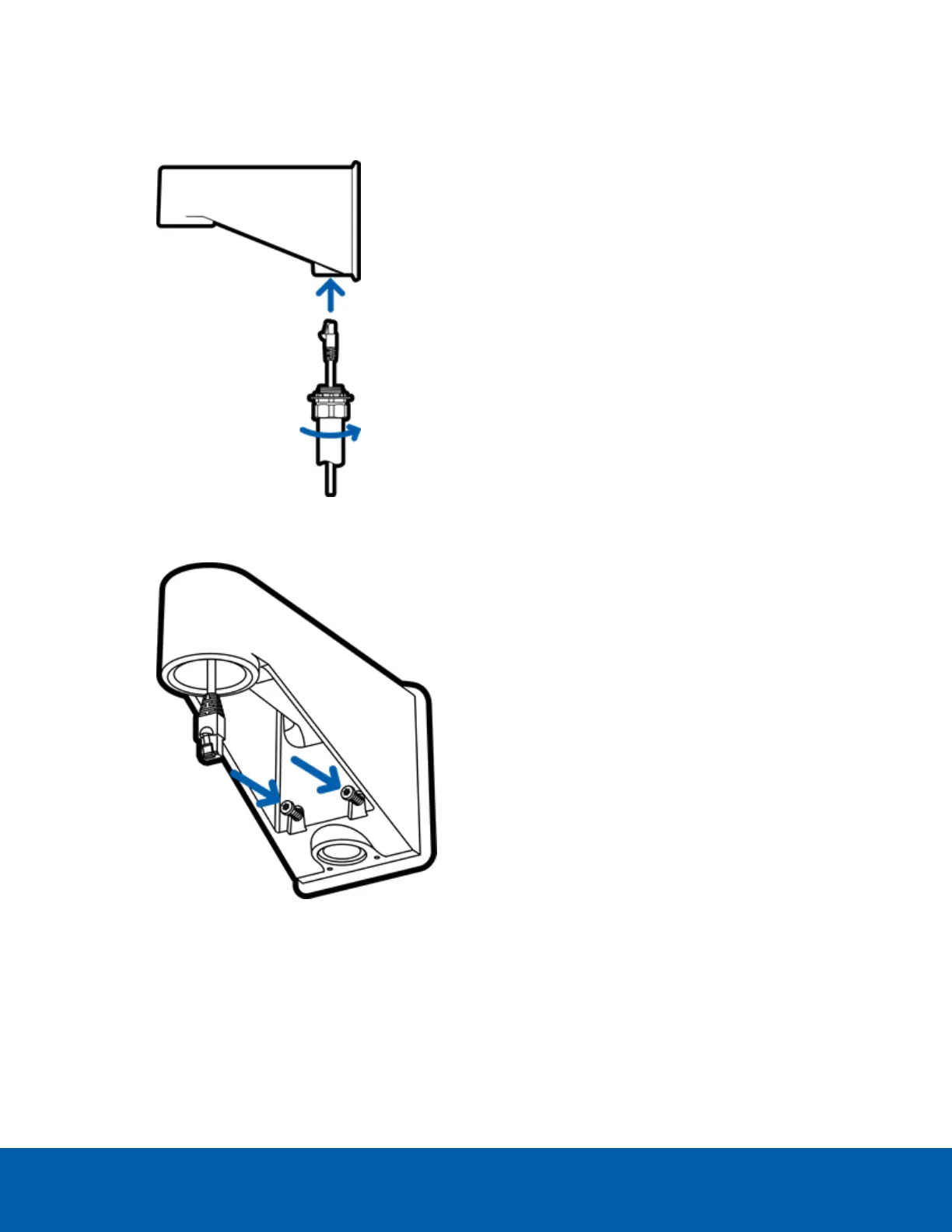

7. Loosely thread the lock nut onto the NPT adapter, then secure the NPT adapter into the pendant wall
mount.
8. Carefully tighten the lock nut until the NPT adapter is secured to the wall mount.
Mounting the Camera to the Pendant Wall Mount 28
