5. If there are external input or output devices that need to be connected to the camera (for example:

door contacts, relays, etc.), connect the devices to the camera's digital I/O connector cables. For

more information see Connecting to External Audio and I/O Devices on page16.

6. If an external microphone and/or speakers need to be connected to the camera, connect the

devices to the camera's audio I/O cables. For more information, see Connecting to External Audio

and I/O Devices on page16.

7. Install the protective cable boot. You may choose to skip this step if you are using the optional

junction box.

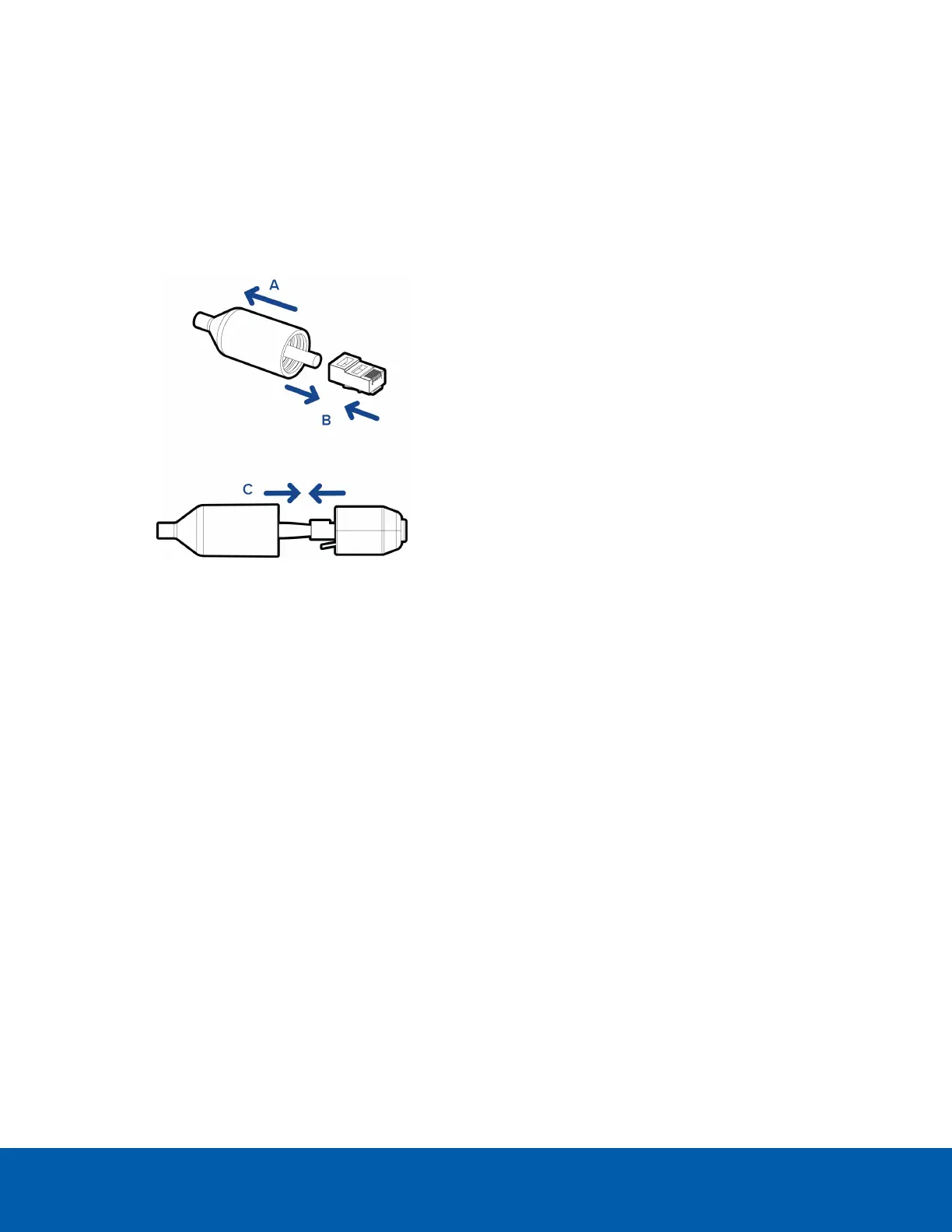

a. Remove the protective cable boot that is preinstalled over the Ethernet port, then thread one

end of the Ethernet cable through it.

Ensure the orientation of the cable and boot matches the one shown in the image.

b. Crimp the Ethernet cable.

c. After you connect the cable to the camera, slide the boot over the Ethernet port.

Mounting the Bullet Camera 8
