Avigilon H5SL Series User Manual

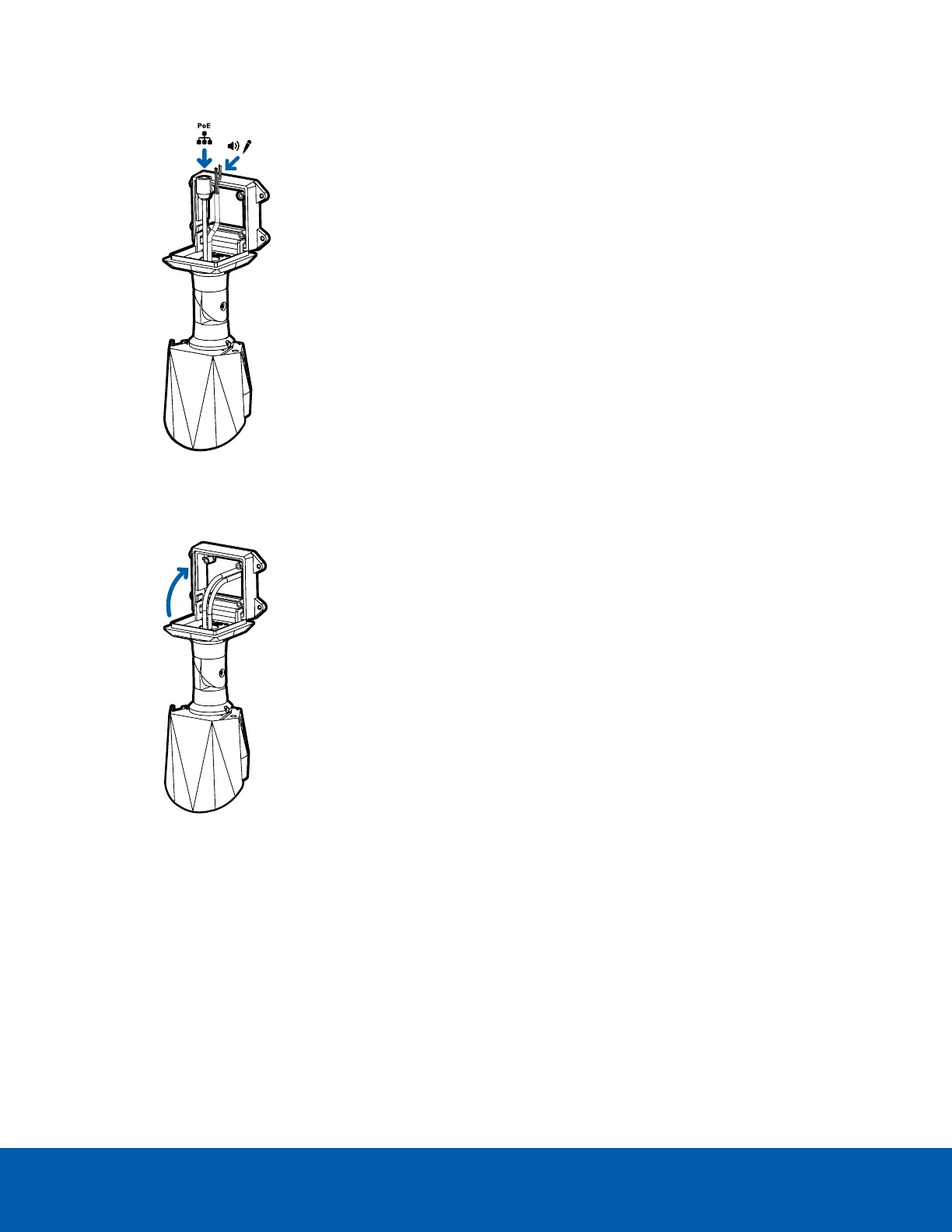

8. Connect the network cable to the camera's Ethernet port.
9. Tuck the extra lengths of cables into the cable entry hole.
10. Raise the camera until it covers the mounting bracket.
Mounting the Bullet Camera 9

Avigilon H5SL Series Specifications

General

Ingress Protection	IP66
Impact Rating	IK10
Day/Night	Yes, with IR cut filter
Wide Dynamic Range (WDR)	Yes, up to 120 dB
Video Compression	H.264, H.265, MJPEG
Ethernet	10/100BASE-T
Resolution	5 MP
IR Illumination	Yes
Operating Temperature	-40°C to 50°C (-40°F to 122°F)
Power	PoE, 12V DC
Sensor Type	CMOS
Lens Type	Fixed or varifocal
Iris	P-Iris
IR Distance	Up to 30m (98ft)
Frame Rate	Up to 30 fps
Analytics	Yes
Aperture	F1.6
Minimum Illumination	0 lux (IR on)
