Audio Signal Path
5 Audio Signal Path
CUE
Aux Pre
Aux Post
Prog
Sub
CF2
CF1
Module 1
EQ
Dyn
Extern 1
Extern 2
Module 8
EQ
Dyn
Input Matrix
CRM
CF1
Aux
Prog
Sub
CF
2
Dedicated Analog Outputs
Phones/Analog 7/Digital outputs 1-7
and Cobranet outputs 1/2-31/32 can
select one of the (buss)outputs (or
inputs = direct out)
Aux pre/post
Fader
Mono Line 5,6
Digital 1..7
MIC 1..4
St Line1..4, 7
Cobra 1/2..31/32
CUE

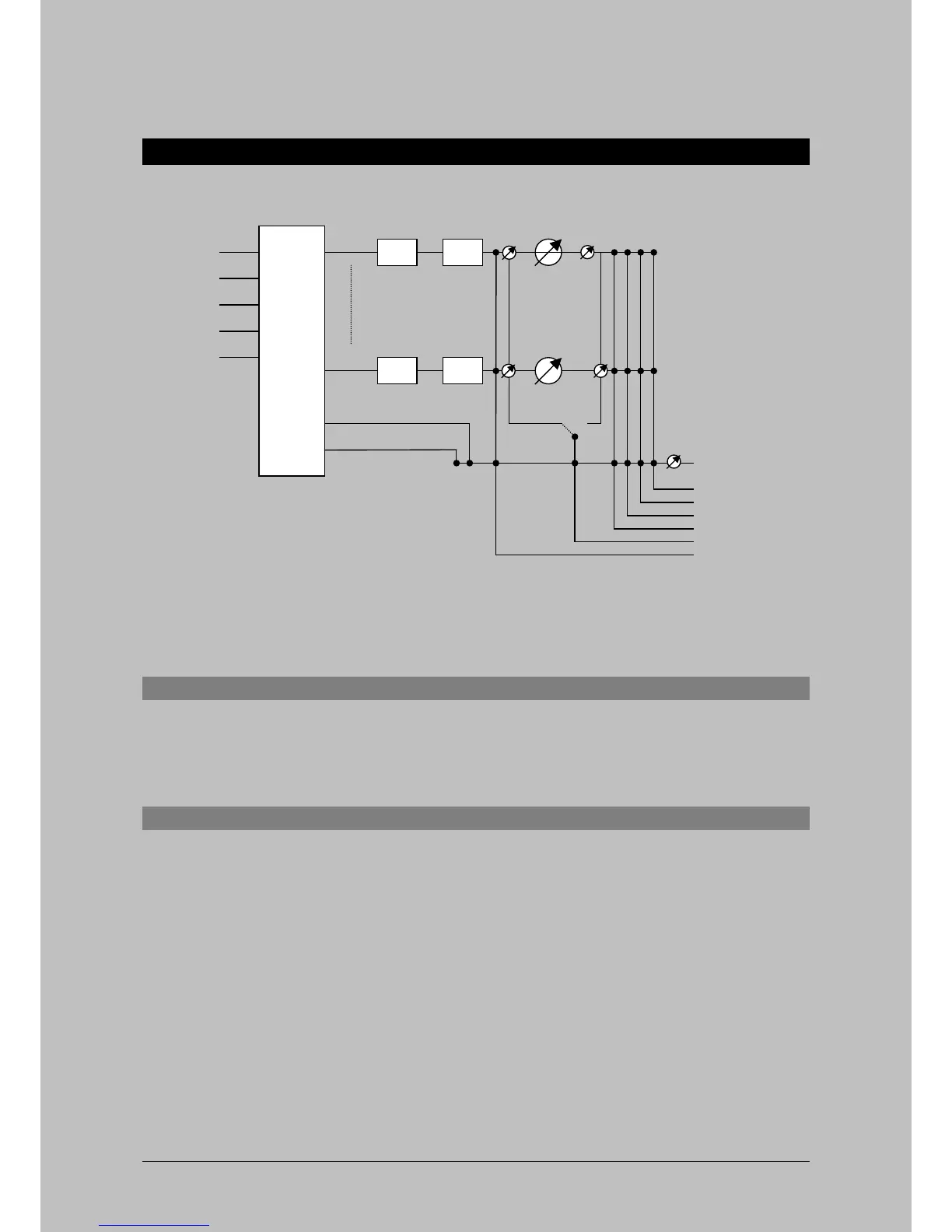

Figure 1: Audio Signal Flow
5.1 Input matrix
To give you the flexibility you need in your applications the Oxygen 4 Digital has a full matrix before
processing takes place. You can assign one of your inputs to the eight modules in any way you want.
Furthermore you can bring one of the inputs to the external inputs to make them available at the CRM
buss.
5.2 Buss structure
As mentioned before, every module features EQ- and dynamic processing. This is why these channels
are often referred to as ‘processing’ channels.
The output of the 8 stereo audio processing channels can be routed to different busses.
Busses that are available are:
Stereo program buss.
Stereo sub buss.
Stereo aux. buss.
Stereo CUE buss.
Automatic Mono Cleanfeed 1
Automatic Mono Cleanfeed 2
The 6 CRM sources (Prog, Sub, Aux, CUE, Extern 1, Extern 2) may be summed into the CRM buss.
Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page 10
