11.6.1 Advanced input settings

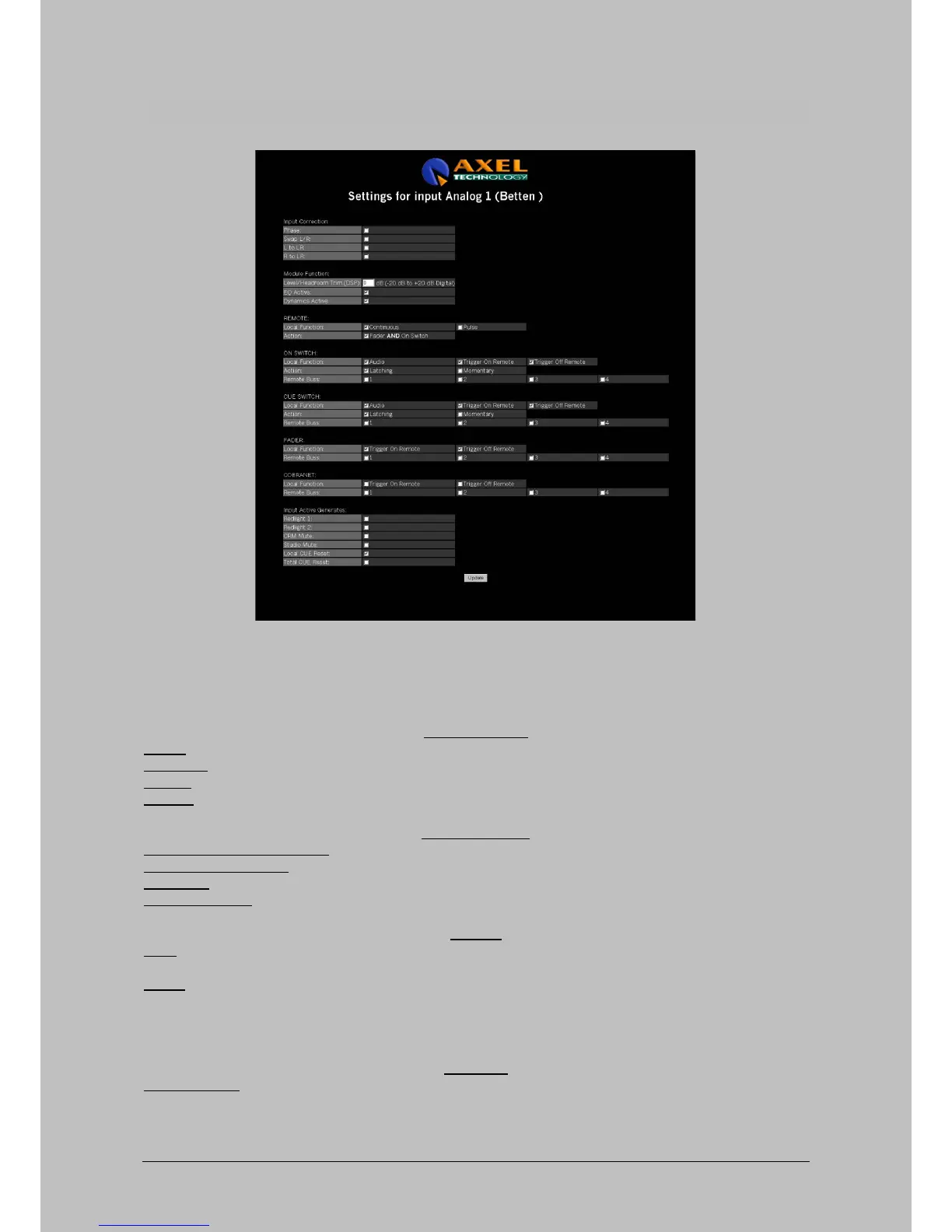

Figure 31.09: Advanced input settings
The 'Advanced Input Setting' screens for the analog inputs, the digital inputs and the Cobranet inputs
are the same except for a few option, which are grayed out if the function is not present. The settings
for the MIC inputs are also the same except for one section.
Input Correction
Phase Inverts the phase of the signal.
Swap L/R Exchanges the left and the right audio channel.
L to LR The signal from the left channel is copied to the right channel.
R to LR The signal from the right channel is copied to the left channel.
Module Function
Level/Headroom Trim (DSP) The possibility to trim the level of the source from -20dB to +20dB.
MIC Gain (MIC Only!!) The possibility to trim the level of the MIC inputs from 0dB to +60dB.
EQ Active Enables the EQ functionality.
Dynamics Active Enables the dynamics functionality.
Remote
Type You can select continuous and pulse for the remote signal. Continuous changes state
only at action and pulse changes state shortly after action.
Action Select the action that triggers the remote. Fader and ON switch means that the remote
will only be triggered when both the fader is open and the channel is ON. With this
option disabled you get a fader or ON switch situation. This means trigger occurs at
fader ON and ON switch independently.
On switch
Local Function Audio On/Off enables you to disable the audio function of the On switch. This way you
can use the On switch only to trigger the remote.
Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page 44
