CRM Dim You can set the amount of dimming you want on the CRM buss when
pressing the DIM button one the Control-surface. (0 to -144dB)
CUE to CRM Dim When activating a CUE when CUE to CRM is active, the signal level on the
CRM buss will be dimmed by the specified value (0 to -144dB).
EQ Range The EQ range indicates the range that the three EQ levels can be
adjusted. (0 to 18dB)
Aux Pre Determines if Aux signal is retrieved pre-fader or post-fader.
Extern1/2 The Oxygen 4 Digital has 2 extra CRM inputs onboard. Extern 1 and
2. Here you can select which input source you want to assign to these inputs.
Talkback MIC When selecting the Talkback button, the chosen input will be directly
put through on all the outputs who have Conference Talkback active.
11.5.1 GPI 1 to 6
The GPI can receive a signal from the outside and generate an event of choice.

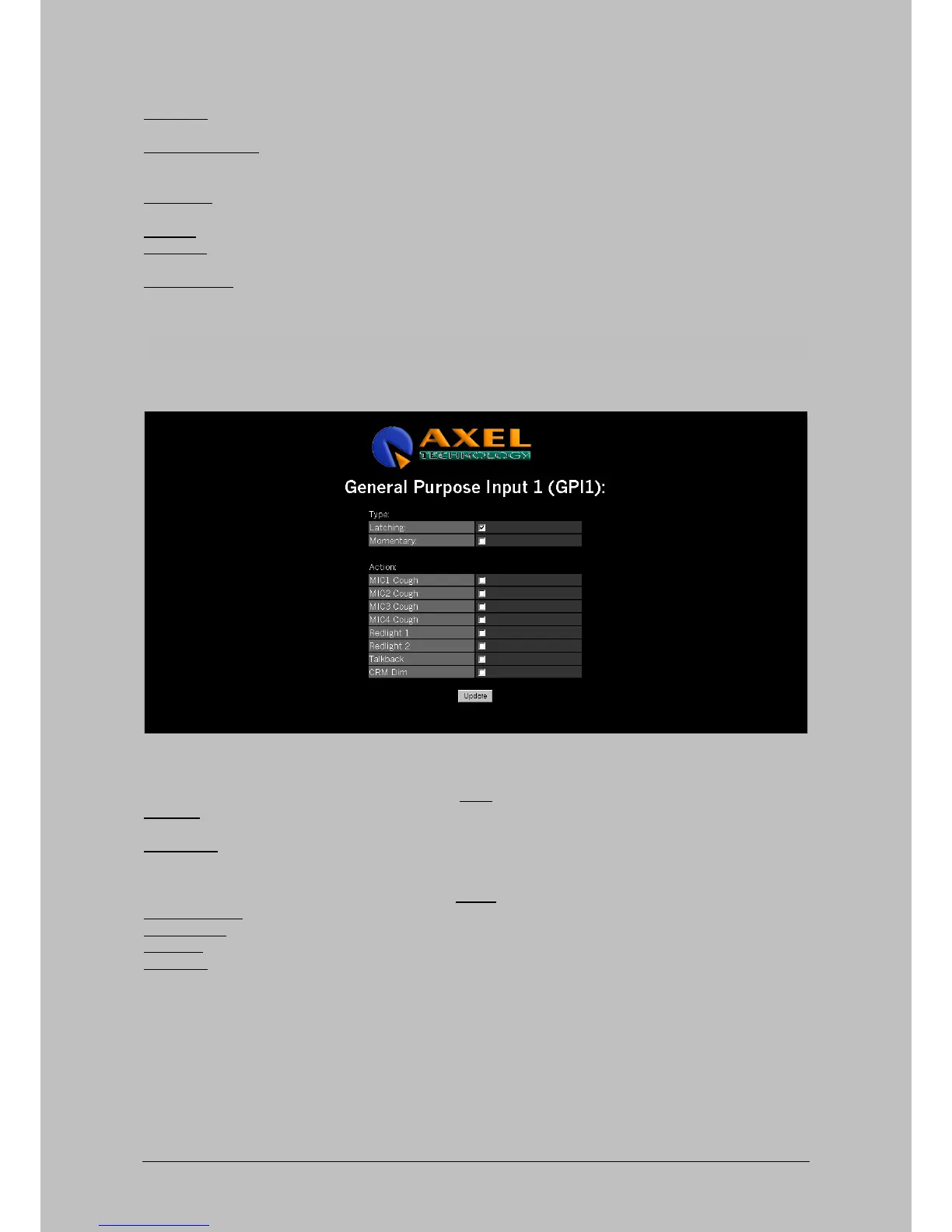

Figure 28.06: General Purpose Input (GPI)
Type
Latching When a GPI is triggered the state changes and stays that way until
the GPI is triggered again.
Momentary When a GPI is triggered the state changes but changes back to is
resting state as soon as the triggering is over.
Action
MIC1..4 Cough When triggered MIC 1..4 will be dimmed.
Redlight 1..2 When triggered redlight 1..2 will be activated.
Talkback When triggered the talkback function will be activated.
CRM Dim When triggered CRM will de dimmed.
Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page 41
