11 Webpage
The control surface of the Oxygen 4 Digital covers all the basic routing and signal processing per
channel.
To control all the features of the Oxygen 4 Digital we need software tools. The software part of the
Oxygen 4 Digital is a dynamic webpage that is inside the 'brain' of the console. By using it inside a
network or on a stand-alone PC you can make all kinds of advanced settings to control and setup the
Oxygen 4 Digital.
In this chapter we will discuss all of the features found on the webpage.
Note: For best viewing results for the webpage use a screen resolution from 1024x768 up to
1280x1024.
11.1 Opening screen
To log on to the webpage you should enter the IP address in your internet explorer. You will get a
logon screen. The first time you logon you don't have to enter a username or password. When asked
for just press enter. It's best to make a System Administrator account as soon as possible to secure
the Oxygen 4 Digital. Later on you can define your own users. How to do this will be discussed is
chapter 11.10.1
After the logon procedure you will see the next screen.

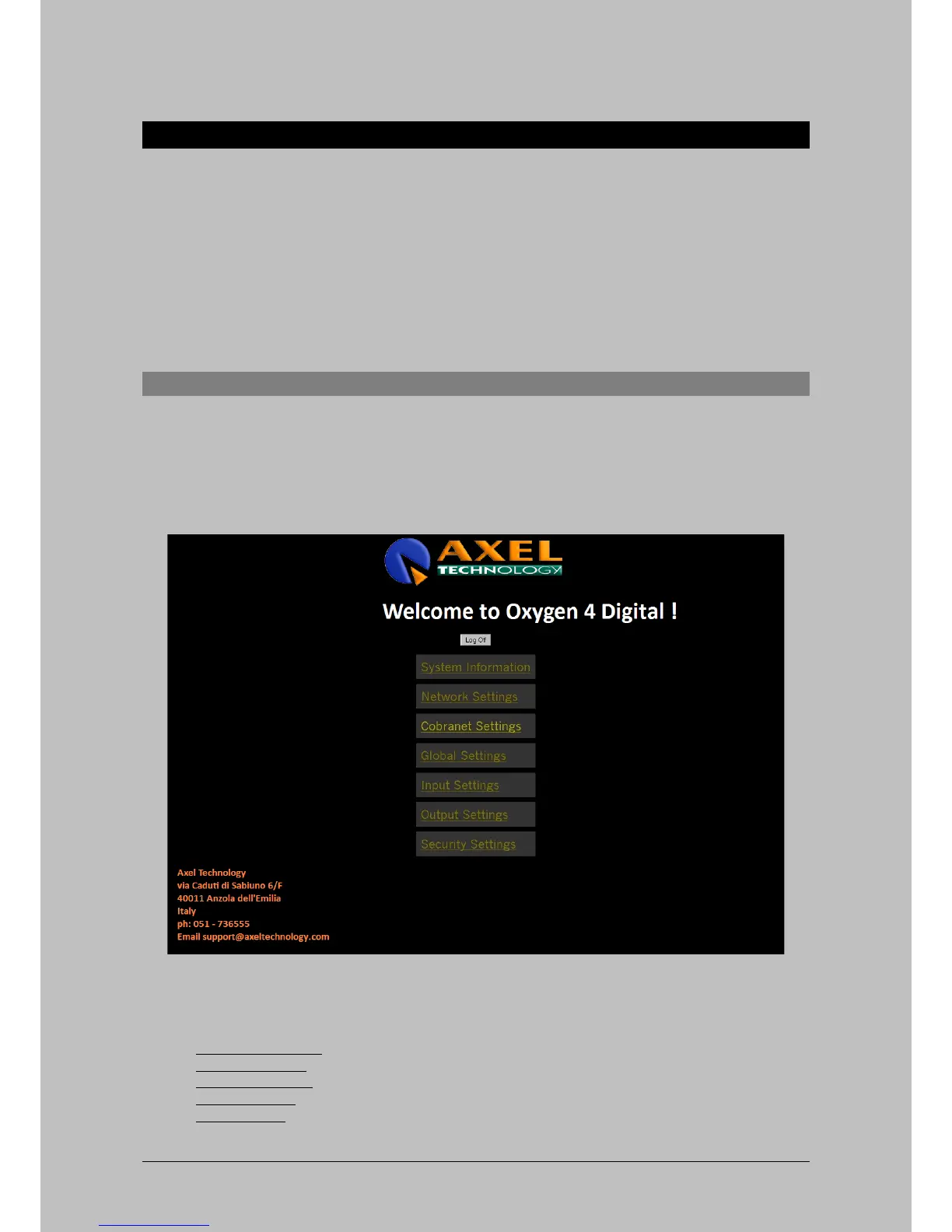

Figure 23.01: Opening screen of the webpage
The next items are displayed in the opening screen;
- System Information
- Network Settings
- Cobranet Settings (Only available if Cobranet module is installed)
- Global Settings
- Input Settings
Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page 33
