11.8.1 Advanced Output Settings

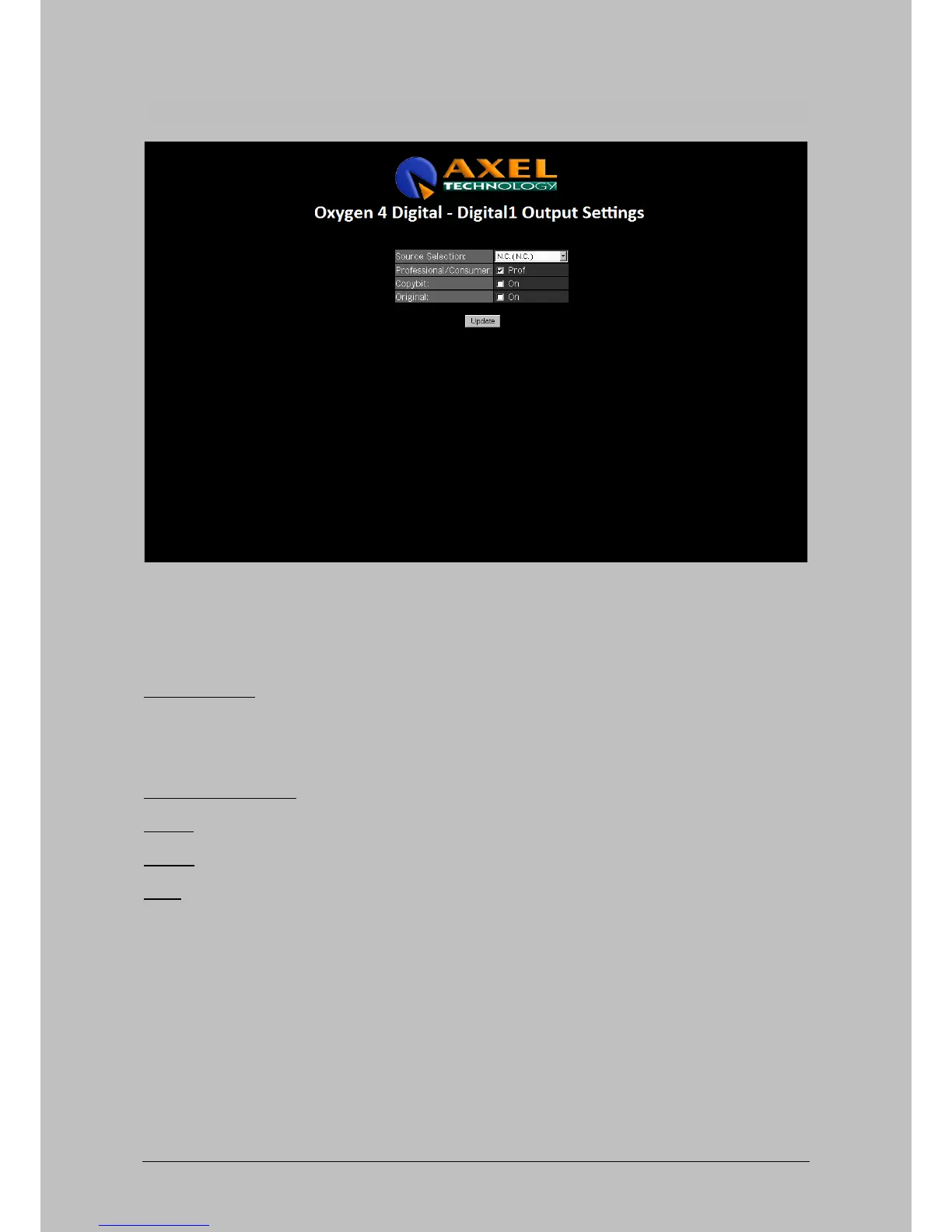

Figure 34.12: Output Settings
The setting for the analog and digital outputs are nearly identical. The only difference can be found in
the bit settings of the digital outputs and the Cobranet outputs.
Source Selection You can select what kind of routing you want to the output. You
can select any of the inputs to be directly routed to an output. You
can also select a buss to be routed to an output. You can select
PROG,SUB, AUX, CUE and CRM at -20dBFS. For the digital
outputs you can choose the buss at –20dBFS or at the user-setup
digital- headroom level at the Global Settings of the Oxygen 4 Digital.
Professional/Consumer You can set this bit to determine if the digital signal is professional or
consumer.
Copybit With this bit set you give the signal the 'Copy'
marking.
Original With this bit set you give the signal the 'Original' marking.
Note: Copybit and Original bit setting are only effective when signal is set to consumer-mode.
Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page 48
