Page 6 AXIS 231D/232D Installation Guide

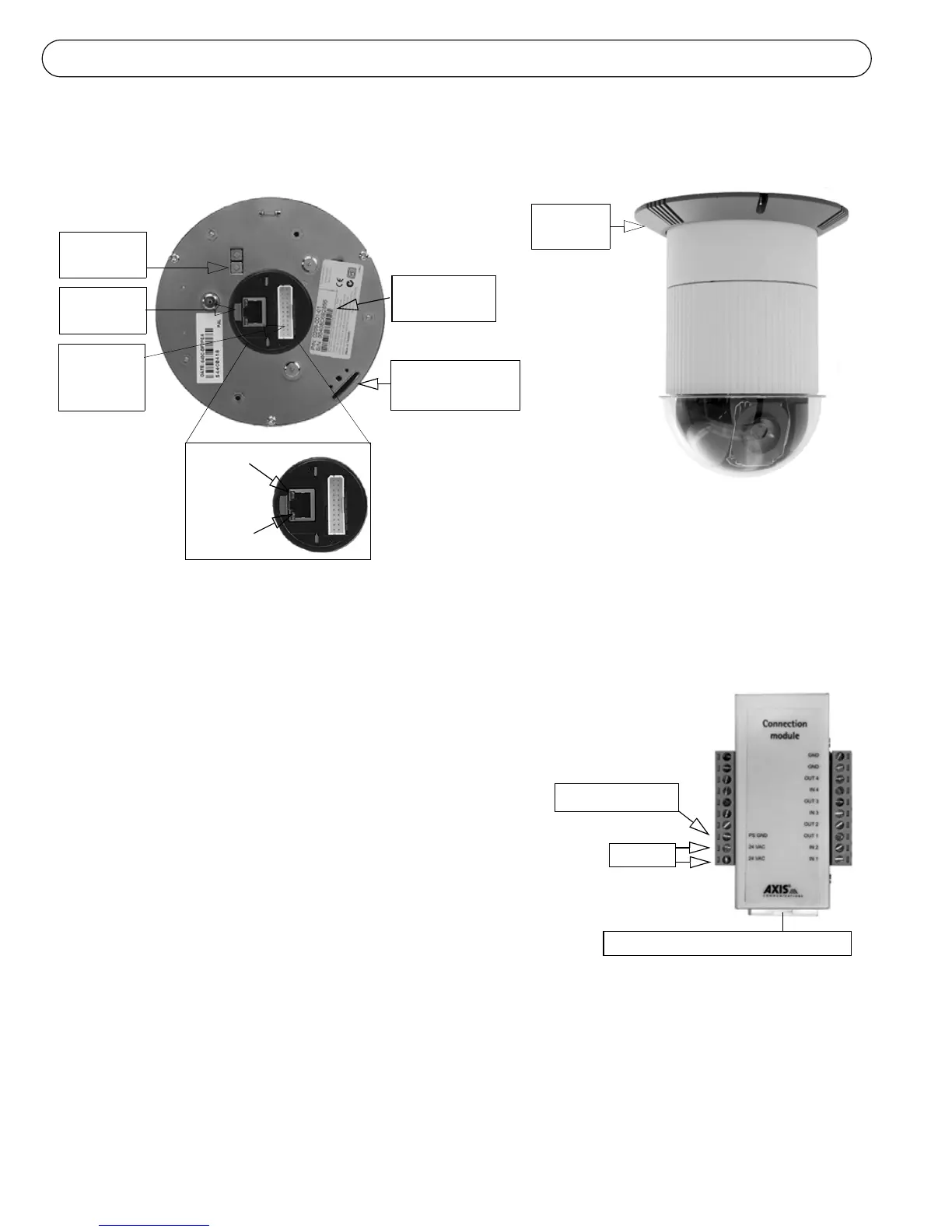

Exterior Ceiling Mounting
module
Decoration
ring
Network
Connection
connector
Network
Indicator
Power
Indicator
fixing screw
Mounting slot for
Control
button
connector
Serial number
S/N
Follow these instructions to mount the dome camera:
1. Using the supplied drill template, drill three holes in the ceiling and secure the bracket to
the ceiling with three screws.
2. Connect the connection module cable to the
connection module.
3. Connect the Ethernet cable and connection module
to the AXIS 231D/232D.
4. Connect the power cable (24V AC) to the
connection module and check that the power and
network LEDs light up green.
5. Mount the dome body onto the bracket and rotate
it clockwise. Make sure the screw hole on the side
of dome is aligned with the bracket. Tighten the
fixing screw to secure the dome.
6. Attach and secure the decoration ring to the bracket.
7. The hardware installation is now complete, proceed to Setting the IP address, on page 8
to install the AXIS 231D/232D on your network.
24V AC
PS GND not used
Connection module cable connector
