AXIS 231D/232D Installation Guide Page 7
ENGLISH

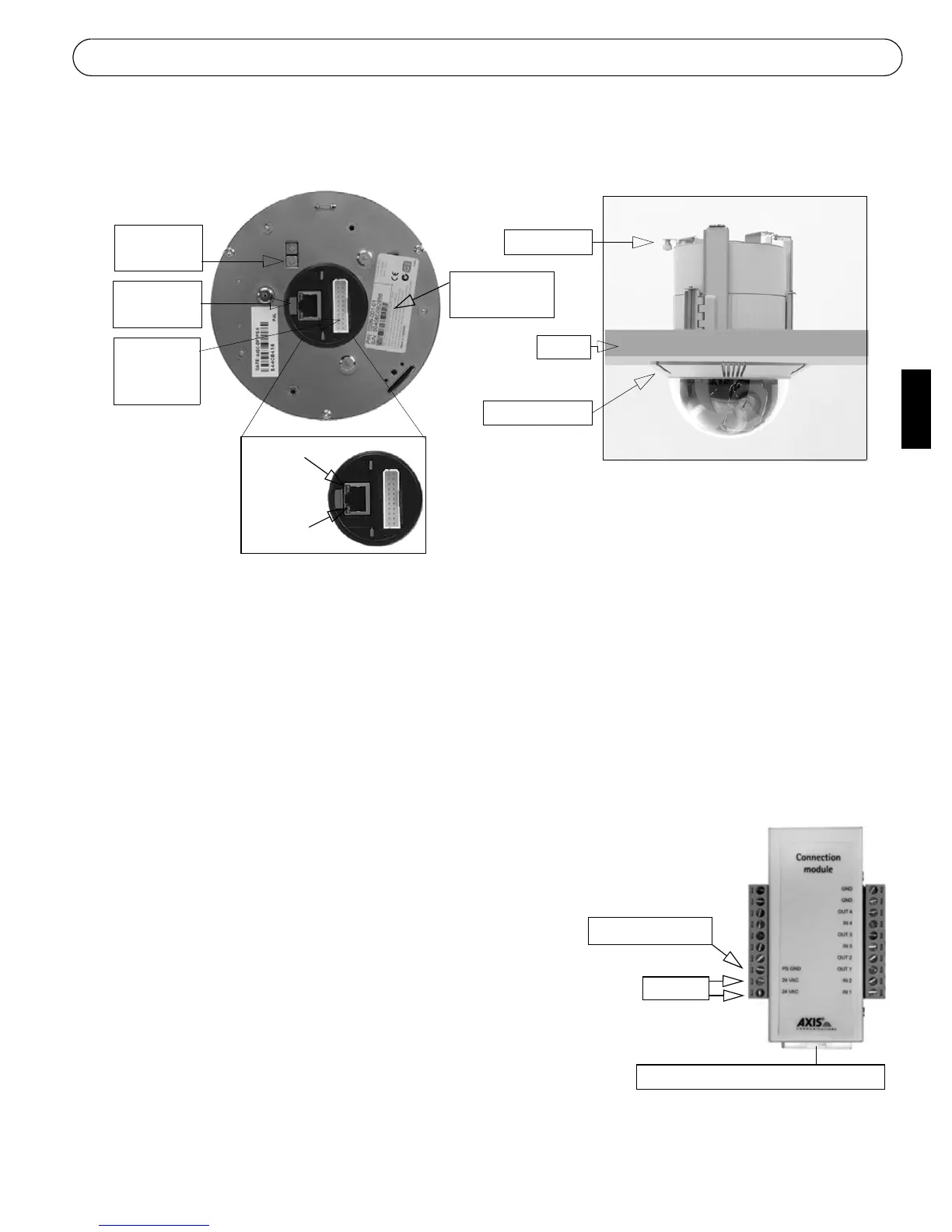

Inset Ceiling Mounting
Decoration ring
Fixing screw
Ceiling
module
Network
connector
Connection
connector
Network
Indicator
Power
Indicator
Control
button
Serial number
S/N
Follow these instructions to mount the dome camera:
1. Place the decoration ring on the ceiling and mark the three screw holes and the inner
circle of the decoration cover.
2. Cut the hole in the ceiling according to the markings.
3. Insert the mounting bracket in the ceiling with the holders folded in. Once in place, fold
out the holders over the inner ceiling and secure the bracket by tightening the screws.
4. Connect the connection module cable to the connection module.
5. Connect the Ethernet cable and connection
module to the AXIS 231D/232D.
6. Connect the power cable (24V AC) to the
connection module and check that the power and
network LEDs light up green.
7. Push the dome body up into the installed bracket
and twist it clockwise to lock it into the bracket.
8. Make sure the screw hole on the side of dome is
aligned with the bracket. Tighten the fixing screw
to secure the dome.
9. The hardware installation is now complete,
proceed to Setting the IP address, on page 8 to install the AXIS 231D/232D on your
network.
24V AC
PS GND not used
Connection module cable connector
To Next Page
