Electrical Connections

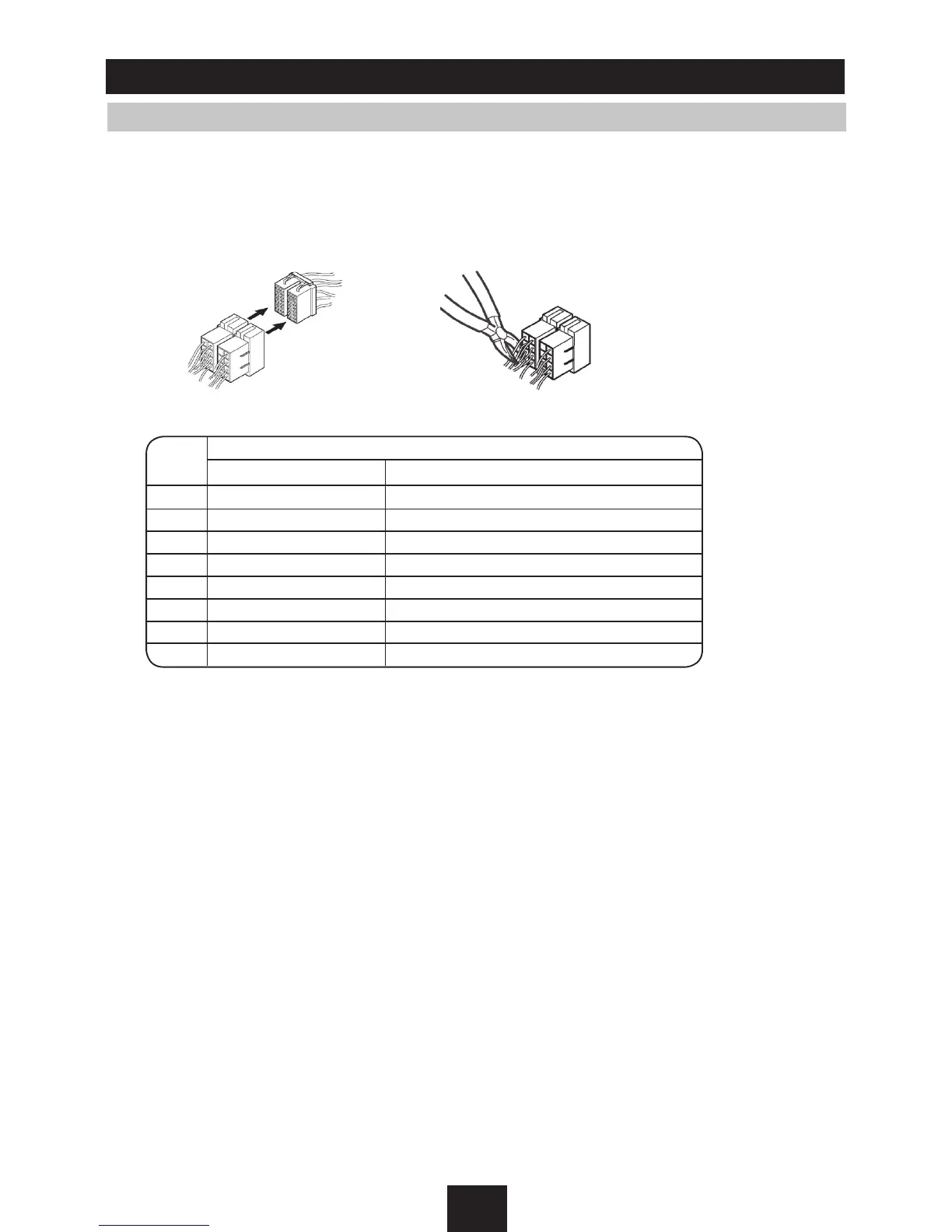

Using the ISO Connector
1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.
2. For connections without the ISO connectors, check the wiring in the vehicle carefully before
connecting, incorrect connection may cause serious damage to this unit. Cut the connector,
connect the colored leads of the power cord to the car battery, as shown in the colour code
table below for speaker and power cable connections.
Location
Function
Connector A Connector B
1 Rear Right (+) - Purple
2 Rear Right (-) - Purple / Black Stripe
3 Front Right (+) - Gray
4 Battery 12V(+)/Yellow Front Right (-) - Gray / Black Stripe
5 ANT/Amp control/Blue Front Left(+) - White
6 Front Left(-) - White / Black Stripe
7 ACC+/Red Rear Left (+) - Green
8 Ground/Black Rear Left (-) - Green / Black Stripe
