Electrical Connections

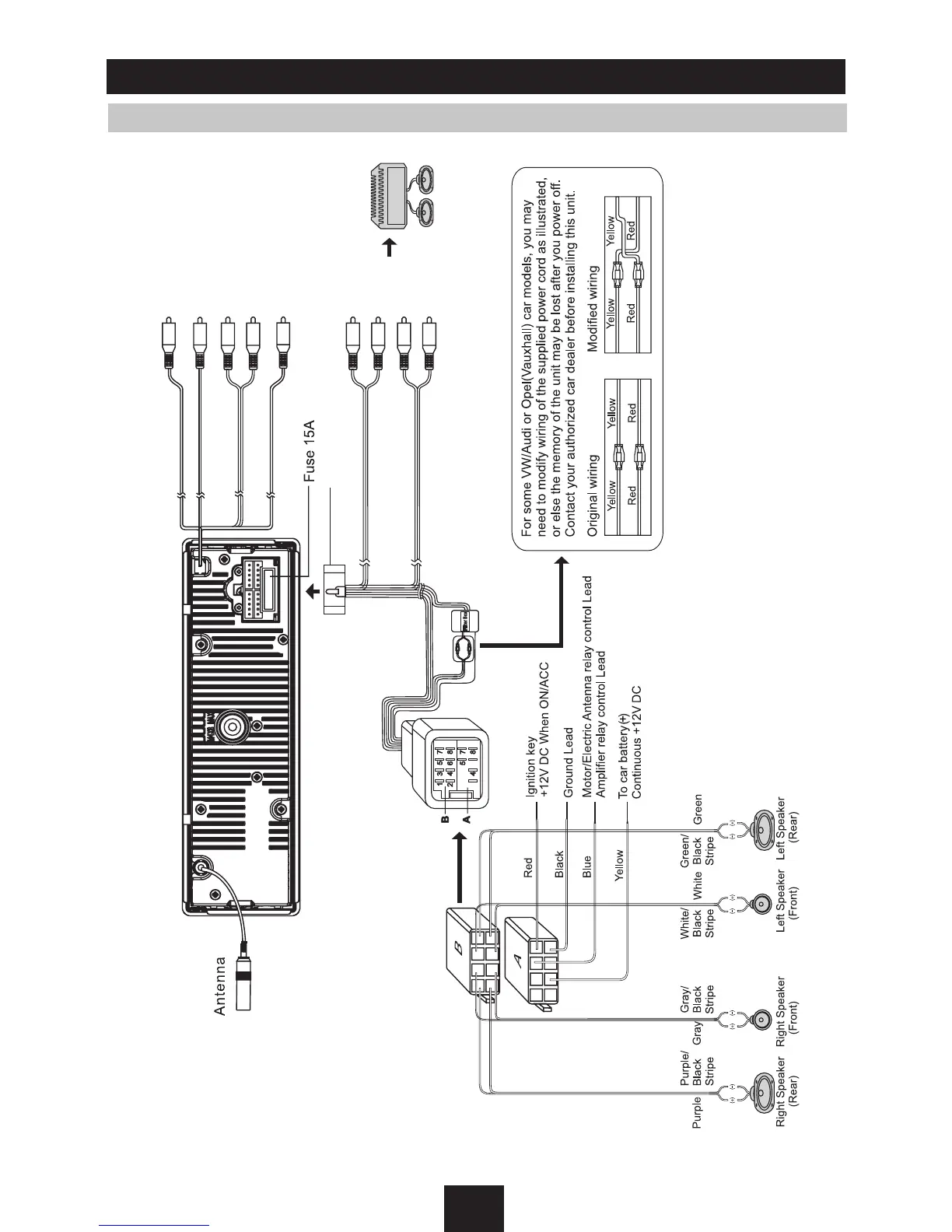

Wiring Diagram
ISO Connector
Connector
Amplifier
Front Line-out(Brown)
L(White) R(Red)
Aux-in
L(White) R(Red)
Rear Line-out(Gray)
L(White) R(Red)
Video-out 1 Video-out 2
Subwoofer-out
(Green) (Yellow) (Yellow)
