AXIS M3014 - Video Streams
AXIS Media Control (AMC)
AXIS Media Control (AMC) in Microsoft Internet Explorer in Windows is
the recommended method of accessing live video from the network
camera.

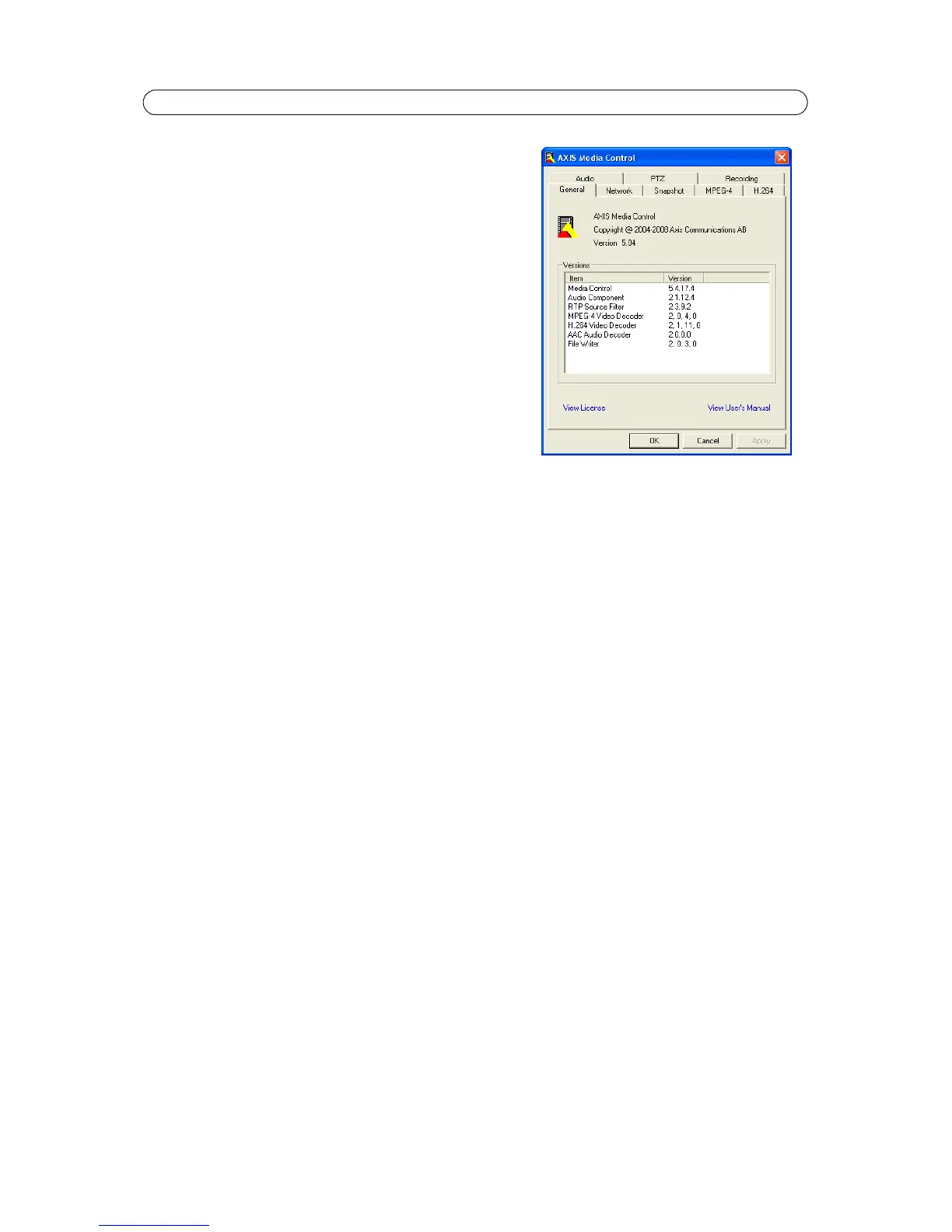

The AMC control panel can be used to
configure various video and audio
settings. Please see the AMC user manual included in the tool for more
information.
The AMC control panel is automatically install
ed on first use, after which
it can be configured.
Open the AMC Control Panel from:
• Windows Control Panel (from the Start menu)
• Alternatively, right-click the video image in Inter
net Explorer and
click Settings to access the AMC window.
Note:
AX
IS M3014 does not support audio or MPEG-4.
Alternative methods of accessing the video stream
You can also access video/images from the network camera in the following ways:
• Motion JPEG server push (if supported by the client, Firef
ox, for example). This option maintains an open HTTP con-
nection to the browser and sends data as and when required, for as long as required.
• Still JPEG images in a browser. Enter the path -
http://<ip>/axis-cgi/jpg/image.cgi
• Windows Media Player. This requires AMC and the H.264 viewing client
to be installed. The paths that can be used are
listed below in the order of preference:
• Unicast via RTP: axrtpu://<ip>/axis-media/media.amp?videocodec=<codec>
•
Unicast via RTSP: axrtsp://<ip>/axis-media/media.amp?videocodec=<codec>
• Unicast via RTSP, tunneled via HTTP: axrtsphttp://<ip>/axis-media/media.amp?videocodec=<codec>
• Multicast: axrtpm://<ip>/axis-media/media.amp?videocodec=<codec>
• To access the video stream from Qu
ickTime™ the following paths can be used:
• rtsp://<ip>/axis-media/medi
a.amp?videocodec=<codec>
• rtsp://<ip>/axis-media/media.3gp?videocodec=<codec>
Notes:
• The network camera supports QuickTime 6.5.1 and later.
• QuickTime adds latency to the video stream (up to 3 seconds).
• It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not
guarantee this.
• <ip> = IP address
• <codec> = h264. The default codec is H.264.

Axis M3014 Specifications

General

Total megapixels	1 MP
Maximum resolution	1280 x 800 pixels
Video formats supported	H.264, M-JPEG
Minimum illumination	1 lx
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	1/4 \
Effective sensor resolution	1000000 pixels
Lens diameter	2.9 mm
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Power source type	PoE
Ethernet LAN (RJ-45) ports	1
Certification	EN 55022 B, EN 61000-3-2, EN 61000-3-3, EN 55024, FCC Part 15 Subpart B B, ICES-003 B, VCCI B, C-tick AS/NZS CISPR 22, MIC B, EN 60950-1 AXIS M3014: KCC B
Processor model	ARTPEC-3
Placement supported	Indoor & outdoor
Mounting type	Ceiling
Flash memory	128 MB
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	260 g
