Axis Q1755 - Overview; Rear View Camera; Bottom View Camera

5

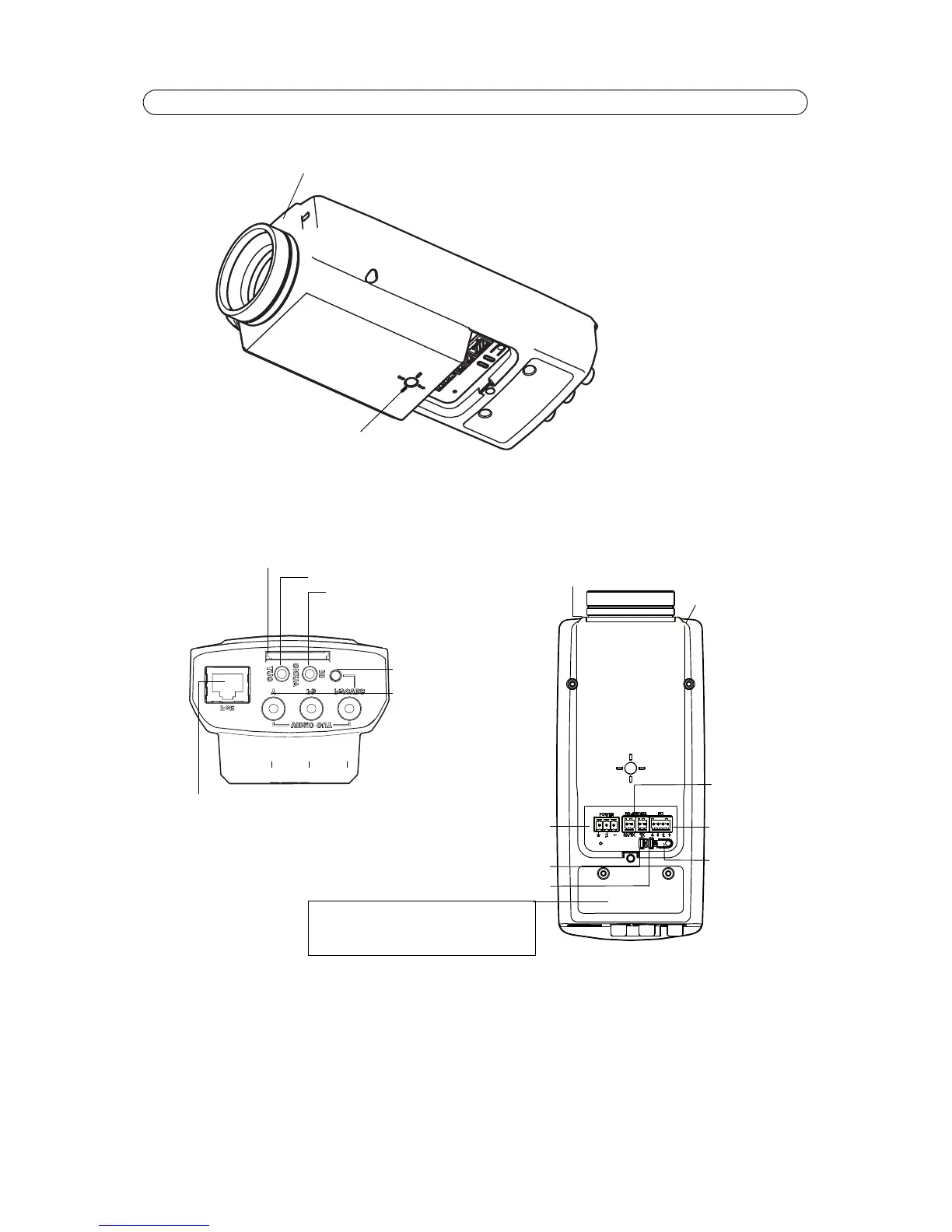

AXIS Q1755/-E - Product Description
Overview
Control
Network
connector
Audio out
Microphone
I/O connector
RS-485/422
connector
Audio in
Video out
SD memory
card slot
Y/Pb/Pr/CVBS
CVBS
button
Part number (P/N) & Serial number (S/N).
The serial number may be required
during the installation.
Network indicator LED
Power connector
Power indicator LED
M37x0.75 mounting thread
for optional lens adaptor
Hole for wall/ceiling
mount
Status indicator LED
Bottom view
Rear view
