AXIS Q1755/-E - Accessing the Camera
The Live View page
If your network camera has been customized to meet specific requirements the buttons and other items described below
may or may not be displayed on the Live View page. The following provides an overview of each available button:

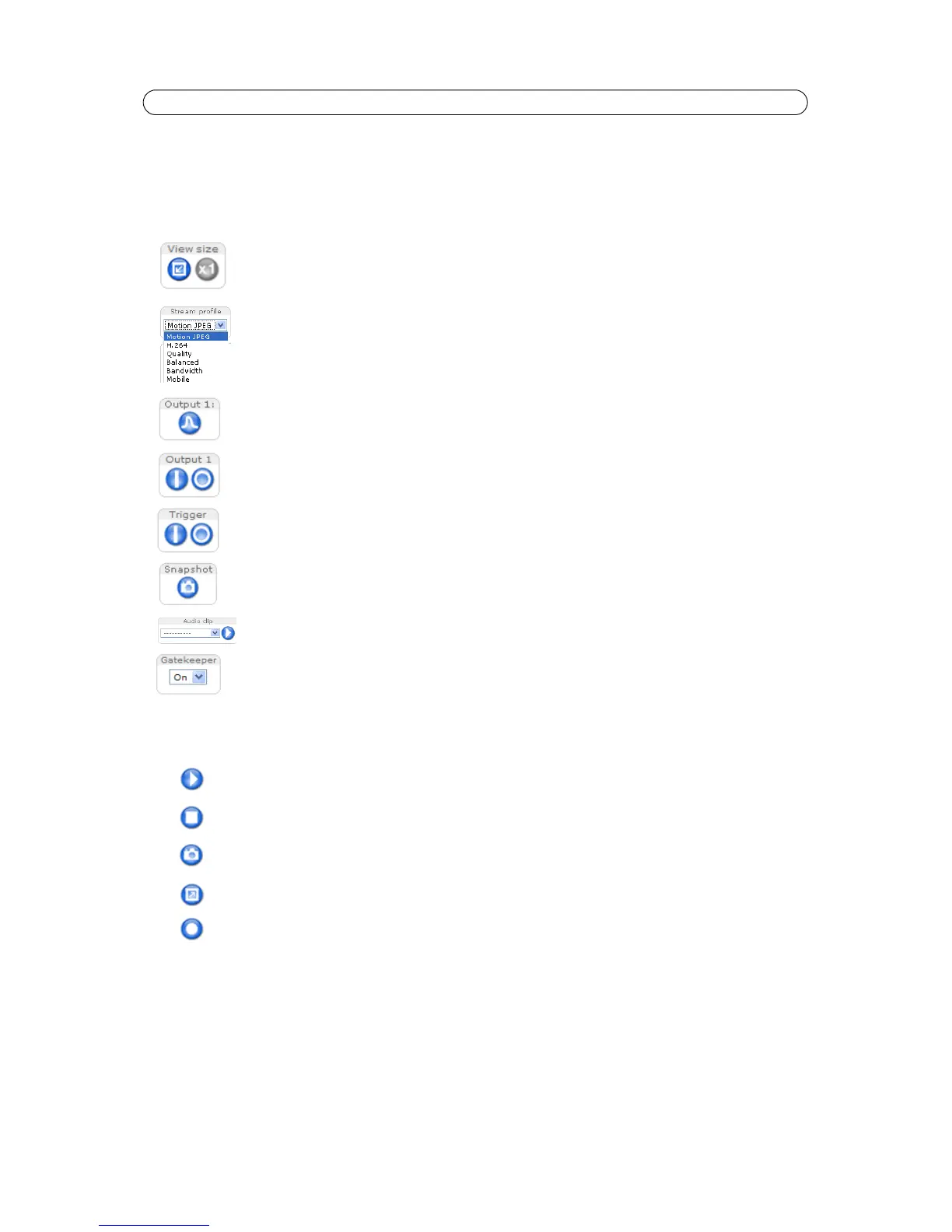

General controls
View size - Click these buttons to scale the image down to 800 pixels wide or to full scale. Only available in
Motion JPEG.
The Stream Profile drop-down list allows you to select a customized or pre-programmed stream profile on
the Live View page. Stream profiles are configured under Video & Audio > Stream Profiles, see
Stream Pro-
files, on page 17 for more information.
Pulse - Click this button to activate the output for a defined period of time, such as switching a light on for
20 seconds.
Active/Inactive - Click these buttons to manually start and stop a connected device - e.g. switch a light
on/off.
The Manual Trigger buttons can trigger an event directly from the Live View page. This button is configured
under Events.
The Snapshot button saves a snapshot of the video image currently on display. Right-click on the video
image to save it in JPEG format on your computer. This button is primarily intended for use when the AXIS
Media Control viewer toolbar is not available.
Audio clip - Audio clips can be played when an event occurs or manually from the Live View page.
Enable/disable the Gatekeeper by selecting On or Off from the drop-down list. The Gatekeeper is configured
under Setup > Events > Gatekeeper.
AXIS Media Control toolbar
The AXIS Media Control viewer toolbar is available in Microsoft Internet Explorer only. See AXIS Media Control (AMC), on
page 12 for more information. AMC displays the following buttons:
The Play button connects to the Axis product and starts playing a media stream.
The Stop stops the media stream being played.
The Snapshot button takes a snapshot of the current view. The location where the image is saved can be
specified in the AMC Control Panel.
Click the View Full Screen button and the video view will fill the entire screen. Press Esc (Escape) on the
computer keyboard to cancel full screen view.
The Record button is used to record the current media stream. The location where the recording is saved
can be specified in the AMC Control Panel.

Axis Q1755 Specifications

General

Maximum resolution	1920 x 1080 pixels
Camera shutter speed	1/10000 - 1/2 s
Minimum illumination	2 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Sample rate	16 kHz
Supported network protocols	IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, Pelco-D
Power source type	PoE
Power over Ethernet (PoE)	Yes
Power consumption (typical)	17.4 W
Ethernet LAN (RJ-45) ports	1
Dimensions (WxDxH)	186 x 85 x 211.4 mm
Power requirements	20 - 24 V AC
Certification	EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 60950-1, FCC Part 15, Subpart B, Class B, VCCI, Class B ITE, C-tick AS/NZS CISPR 22, ICES-003, Class B
Processor model	ARTPEC-3
Flash memory	256 MB
Internal memory	128 MB
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	985 g
