3-3
Chapter 3. INSTALLATION
Mounting procedures
• The mounting must be horizontal within 10 degrees tilted on the back side
lowering or within 10 degrees tilted on the back side rising.
• The mounting panel should be used with a thickness of less than 9 mm of firm
board.

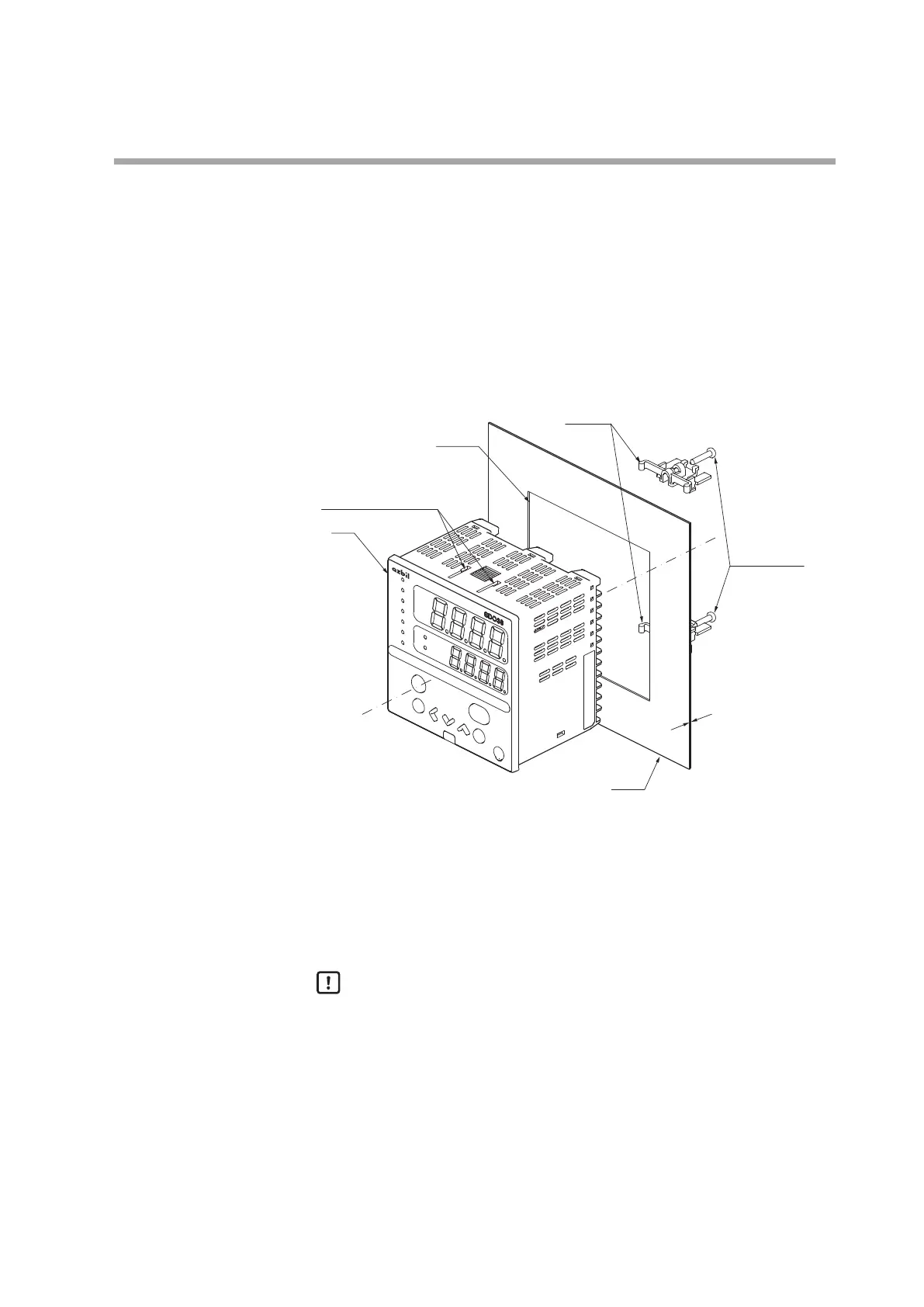

Ordinal mounting
Tools:
Phillips-head screwdriver
Plate thickness is
9 mm or less.
Screws for
mounting bracket
Mounting bracket
Panel
Panel hole
Grooves for mounting brackets
(top and bottom)
Main unit
(1) Insert this unit from the front of the panel.
(2) Fit the mounting bracket from the back of the panel.
(3) Push the mounting bracket against the panel until the hook of the mounting
bracket is firmly engaged with the groove of the main unit.
(4) Tighten the upper and lower screws of the mounting bracket.
Handling Precautions
• To fasten this controller onto the panel, tighten a mounting bracket
screws, and turn one more half turn when there is no play between the
bracket and panel. Excessive tightening of the screws may deform the
controller case.
To Next Page
