Backyard Discovery 1801080 - Page 11

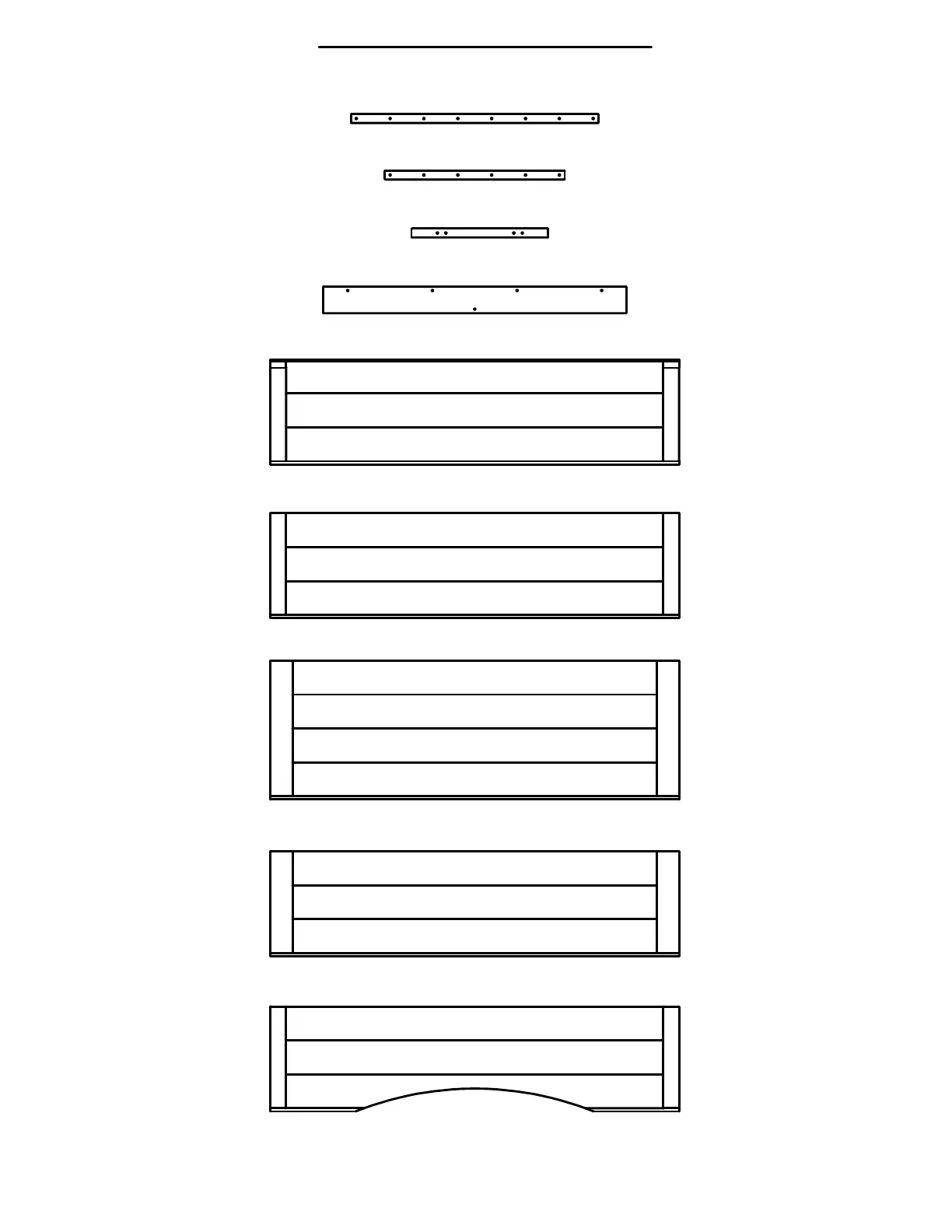

Parts Identification
Wood Components
(NOT TO SCALE)
Y1 - FLOOR BOARD - W4L11239
5/
8"x4"x45 1/8" (16x102x1146)
(1)
(2) RP1 - PEAK ROOF PANEL - W2A02287
1 5/8"x15 5/8"x60 7/8" (42x396x1546)
(3) RP2 - ROOF PANEL - W2A02288
1 5/8"x15 5/8"x60 7/8" (42x396x1546)
(1) RP3 - PORCH PANEL - W2A02289
1 5/8"x20 5/8"x60 7/8" (42x524x1546)
(1) RP4 - PORCH PANEL - W2A02290
1 5/8"x15 5/8"x60 7/8" (42x396x1546)
(1) RP5 - ROOF PANEL - W2A02291
1 5/8"x15 5/8"x60 7/8" (42x396x1546)
O5 - CLEAT - W4L11237
5/8"x1 3/8"x36 7/8" (16x34x936)
(2)
O6 - CLEAT - W4L11238
5/
8"x1 3/8"x26 3/4" (16x34x680)
(1)
O70 - SLIDE MOUNTING BOARD - W4L09040
5/8"x1 3/8"x20 3/8" (16x34x517)
(1)
11
