Weight : 25kg (excl. optional cooling-unit 30kg in total)
4.3 FLOOR SPACE BACTCONTROL
Depth: 321 mm (347 mm incl. hinges & door handle)
Width: 450 mm ( 482 mm incl. connectors)
Height: 460 mm (470 mm incl. rubber feet)

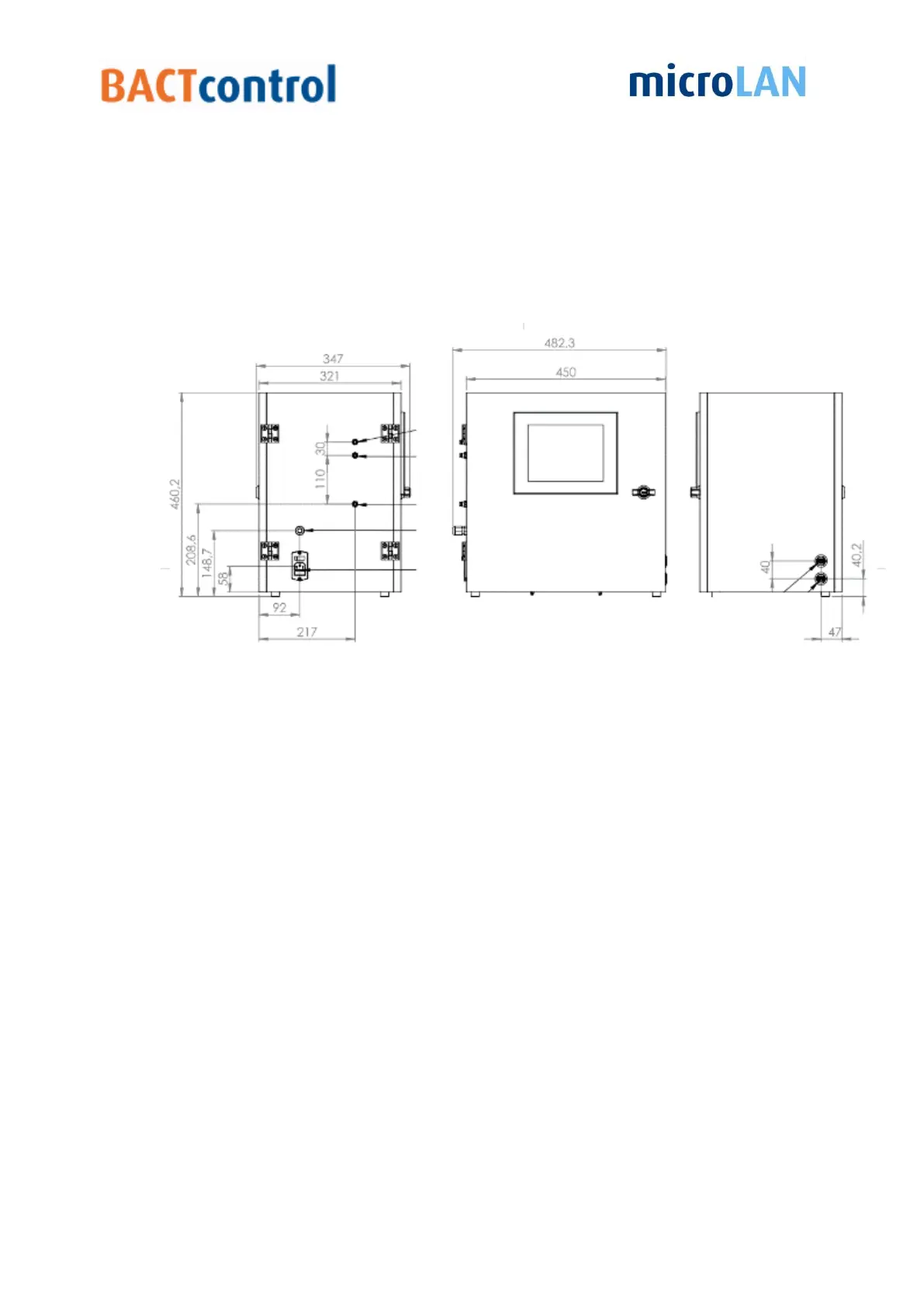

Figure 6 Dimensions BACTcontrol
4.4 SAMPLE DETAIL
Sample inlet
 Sample connection: 4 mm ID
 Tube size: 2,5 mm ID x 4,0 mm OD
 Sample pressure: max 0.05 bar
 Sample flow: 3l/h
 Sample temperature: 10- 35°C / 50 – 95°F
Second inlet/ Extra rinsing
 Sample connection: 4 mm ID
 Tube size: 2,5 mm ID x 4,0 mm OD
 Sample pressure: max 0.05 bar
 Sample flow: 3l/h
Sample temperature: 10- 35°C / 50 – 95°F
Sample outlet and waste
 Sample connection: 4 mm ID
