6.2 CONNECTION OF THE WATER SAMPLE INLET, OUTLET & WASTE
The waste can be separately connected to a container *.
 Make sure the tubing is pushed completely into the connectors!

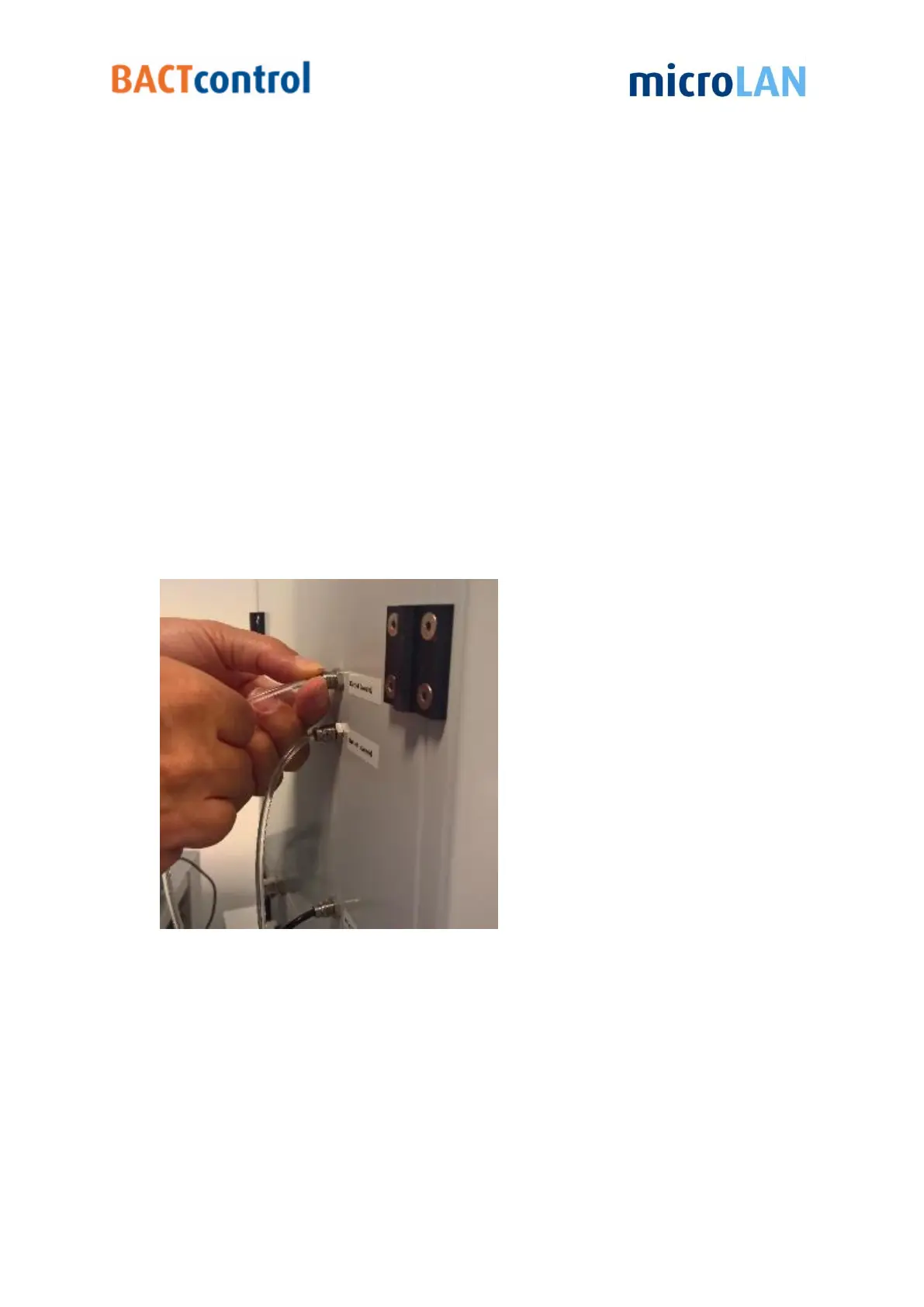

Figure 13 installing tubing
* Any disposal practice must be in compliance with all local and national laws and
regulations. Customers are advised to check their local legislation governing the
disposal of waste materials. If this preparation becomes a waste, the final user must
define and assign the appropriate European Waste Catalogue code. Use only
authorized contractors
7 Fuse box
8 USB type-A input
9 Ethernet RJ-45 input
10 Cable gland for wiring 4-20 mA
and alarm relays
1 Outlet waste
2 Outlet sample
3 Inlet sample
4 Second inlet/Extra rinsing
5 On/Off Button
6 Power connection main power
