microLAN b.v. BACTcontrol – User Manual – V0.4.4 Page 27 of 59
6.3 CONNECTING ALARMS AND ANALOG OUTPUT
Alarm and analogue output are located on the printed circuit board (PCB) in the
backside compartment of the BACTcontrol.
Instrument Alarm: Connect wiring (DC) to 82 (+) and 83 (-)
The BACTcontrol has one analogue output (4-20 mA) for connecting to an external
controller or system:
Connect the wiring to 76 (-) and 77 (+)

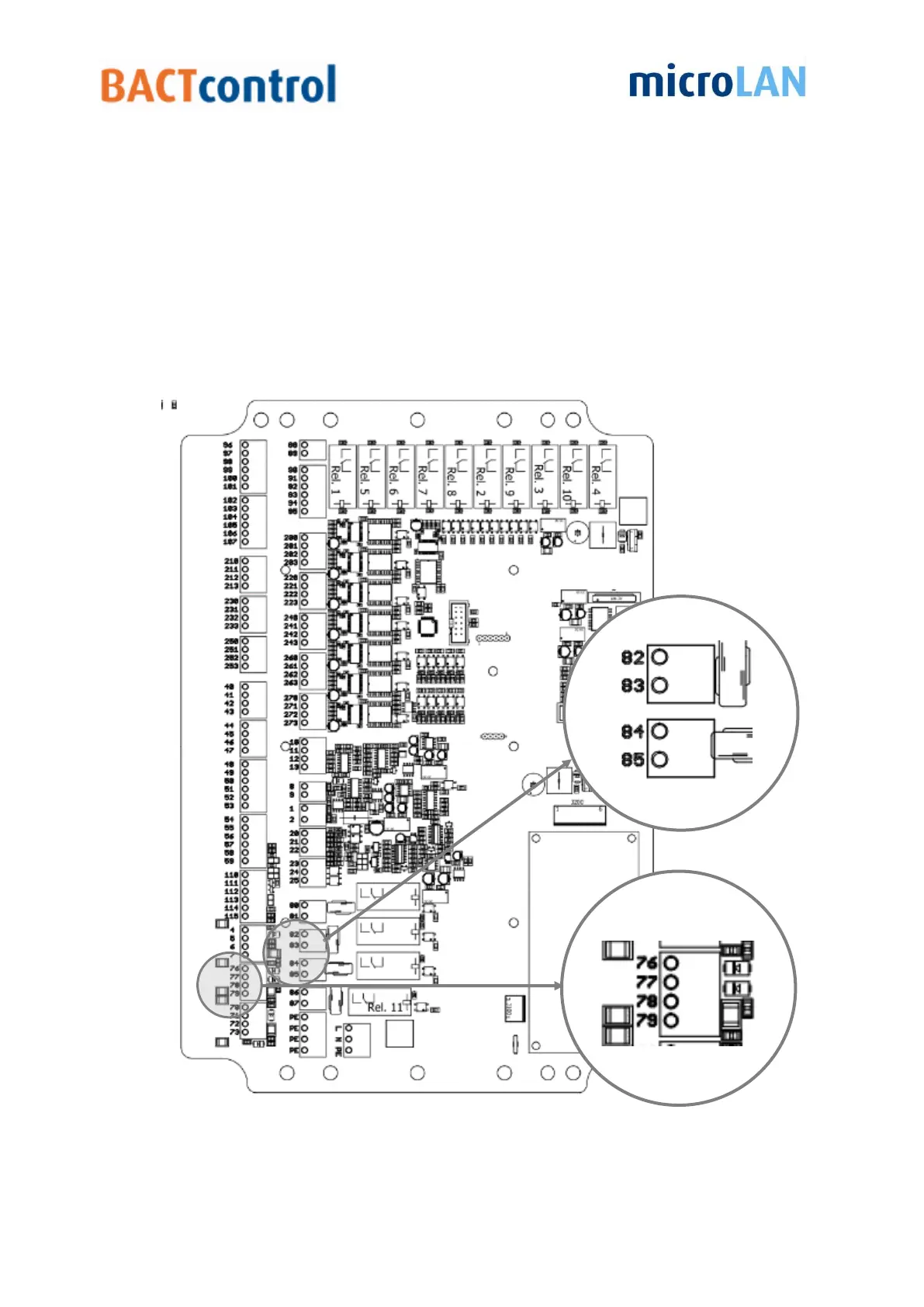

Figure 14 Printed circuit board of the BACTcontrol
