Bad Boy 1500 - Page 100

PAGE 100
SERVICE MANUAL

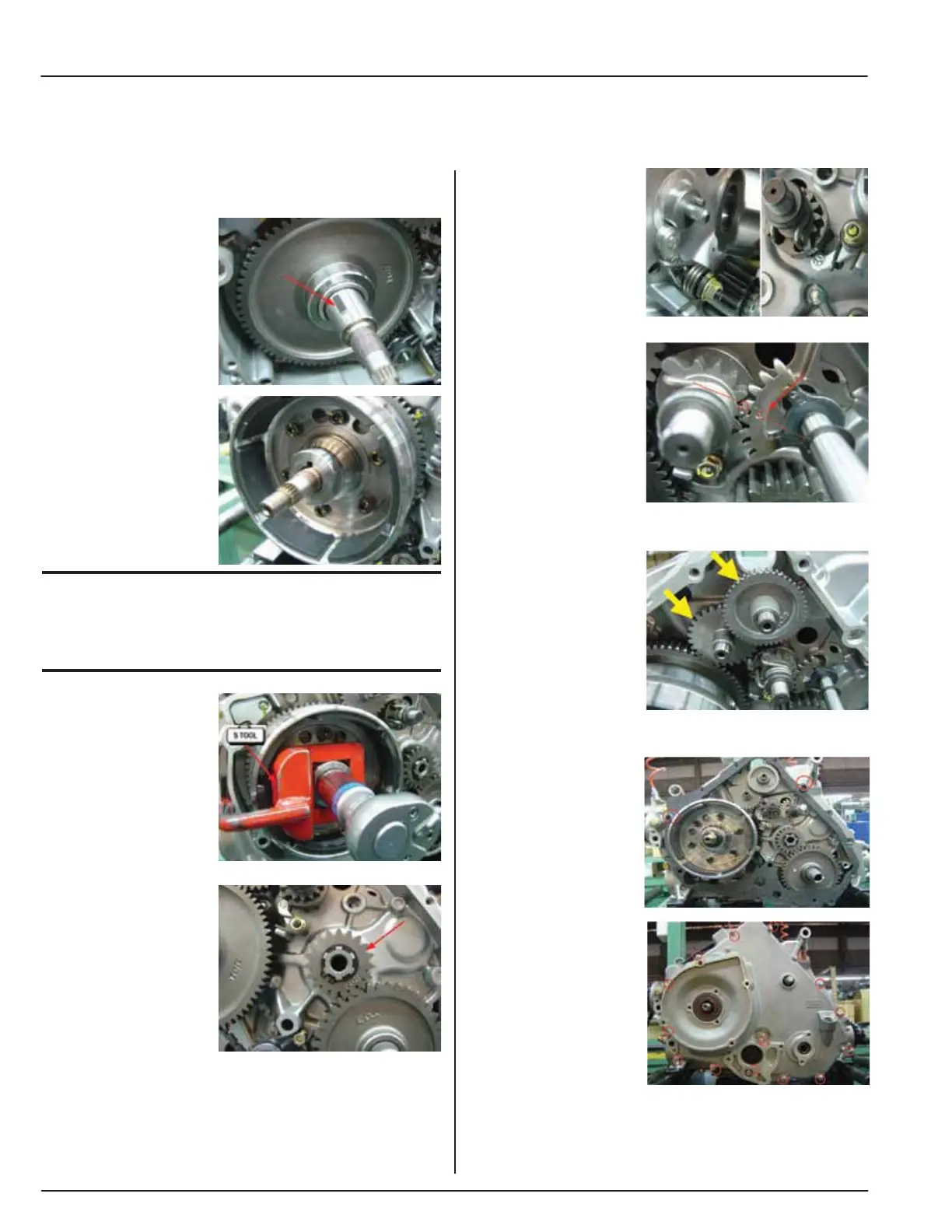

Crankshaft/Crankcase
GENERATOR
• Install the key.
• Install the one
way clutch and
generator rotor
sets.
CAUTION
• Be sure the one way clutch on the crankshaft is
fitted into the generator rotor properly.
• Tighten the
generator rotor nut
to the specified
torque with the
special tool.
• Generator rotor nut:
85 ft/lbs.
• Install the output
drive gear by
installing the snap
ring.
GEARSHIFT
• Install the cam
driven gear.
• Reassemble the
gearshift shaft.
• Install the gearshift
shaft by aligning
the Punched mark
with the center
of the cam driven
gear.
STARTER DRIVEN GEAR/IDLE GEAR
• Install the starter
idle gear and driver
gear.
LEFT CRANKCASE COVER
• Install the dowel
pins and new
gasket.
• Tighten the left
crankcase cover
bolts.
