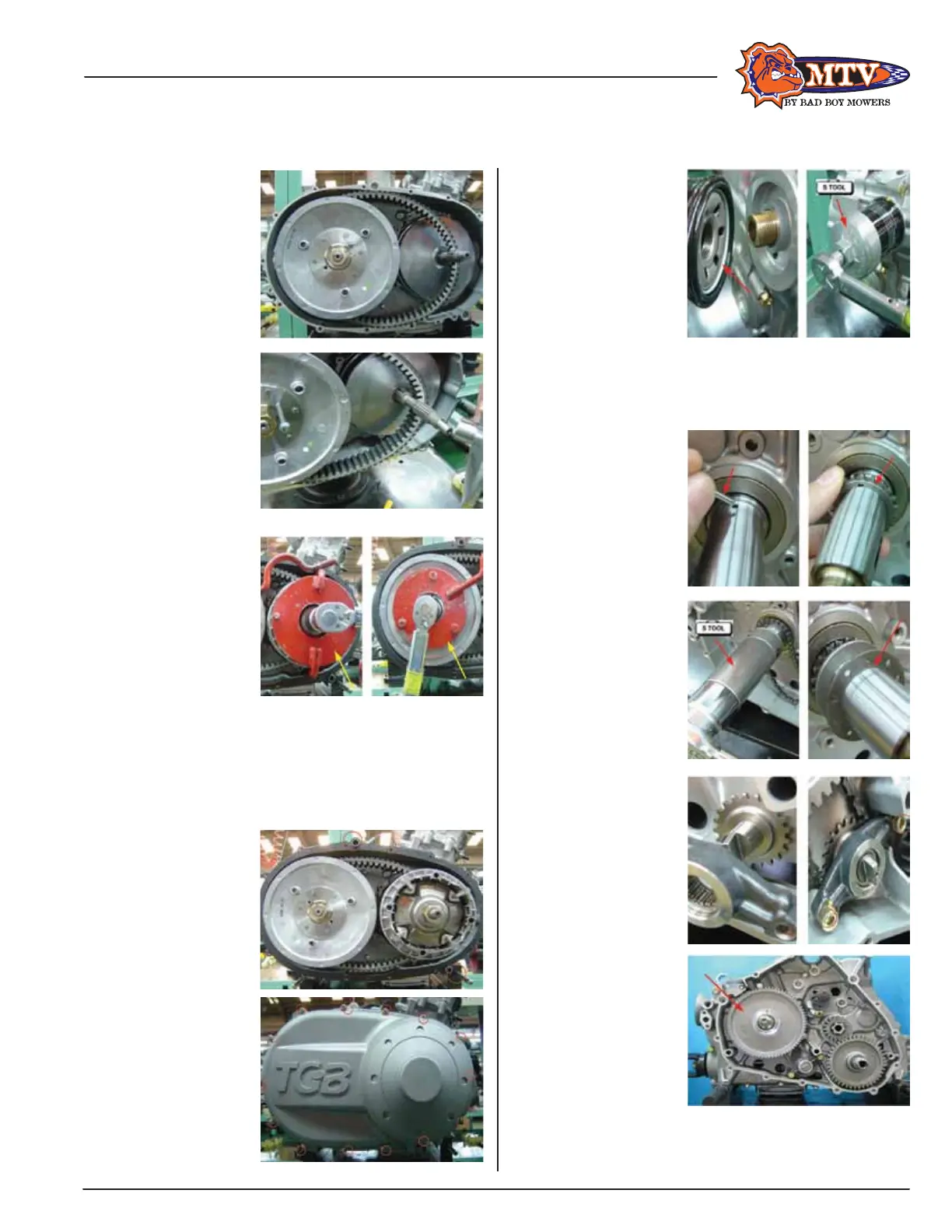

PAGE 99
• Install the movable
driven face
assembly.
• Tighten the movable
drive face nut to
the specified torque
with the special
tool.
• Movable drive face
nut: 55 ft.lbs
• Rotor holder 440666
NOTE:
Turn the fixed drive face until the belt is seated into both
the drive and driven faces check the belt for slippage.
CLUTCH COVER
• Install the dowel
pins and new
gasket.
• Install the clutch
cover.
OIL FILTER
• Apply engine oil
lightly to the O-ring.
• Install the oil filter
by turning it by
hand until you feel
the filter gasket
contacts the
surface of case.
• Then tighten it 1 turn using the oil filter wrench.
• Oil filter wrench 440670
WATER PUMP GEAR
• Install the pin.
• Install the water
pump chain to the
two water pump
gears as shown.
• Install the water
pump gears with
special tool.
• Install the washer.
• Bearing installer set
440660
• Install the water
pump gears and
tighten the nut
NOTE:
Make sure the
crankshaft can turning
smoothly.
• Install the washer.
