Motorized Linear Actuator baelz 373-E07
4.2 Assembly with the valve
Prior to assembly, check that:
● theoperatingconditionscomplytothespecicationsofthelinearactuator.
● the valve is complete (yoke on actuator or on valve).
● the connections on valve and actuator match.
The linear actuator is supplied with the spindle retracted.
Aslightadjustmentforttingofthecouplingcanbecarriedoutbyturningthespindle.

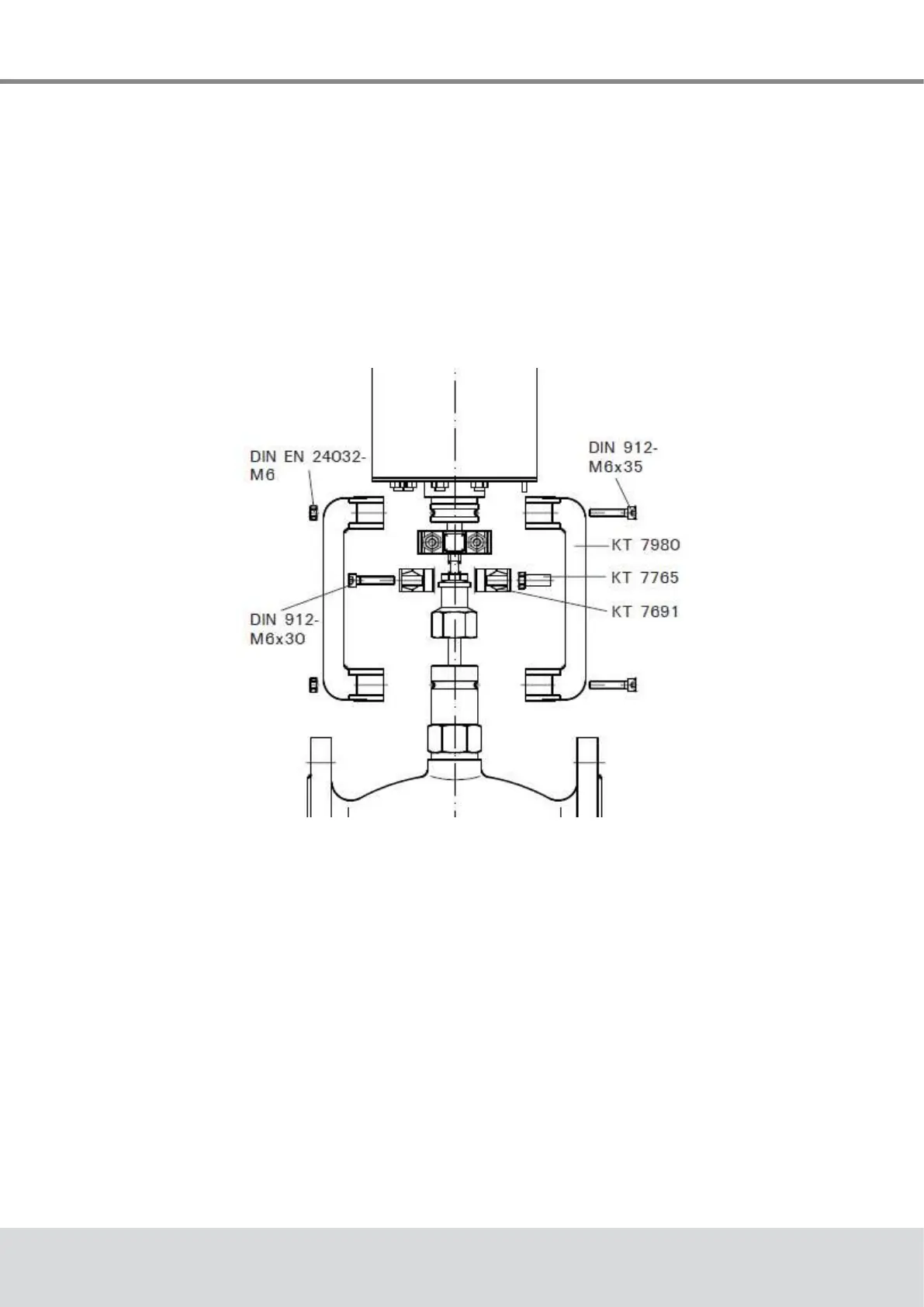

Fig. 3: Assembly with the valve
Ensure that the connecting rod of the actuator and the valve spindle are correctly aligned.
Misalignment can lead to power loss and premature wear.
When supplied with integrated potentiometer assembly, adjustment of the assembly may be
necessary.
