Motorized Linear Actuator baelz 373-E07
11. DIMENSIONAL DRAWINGS

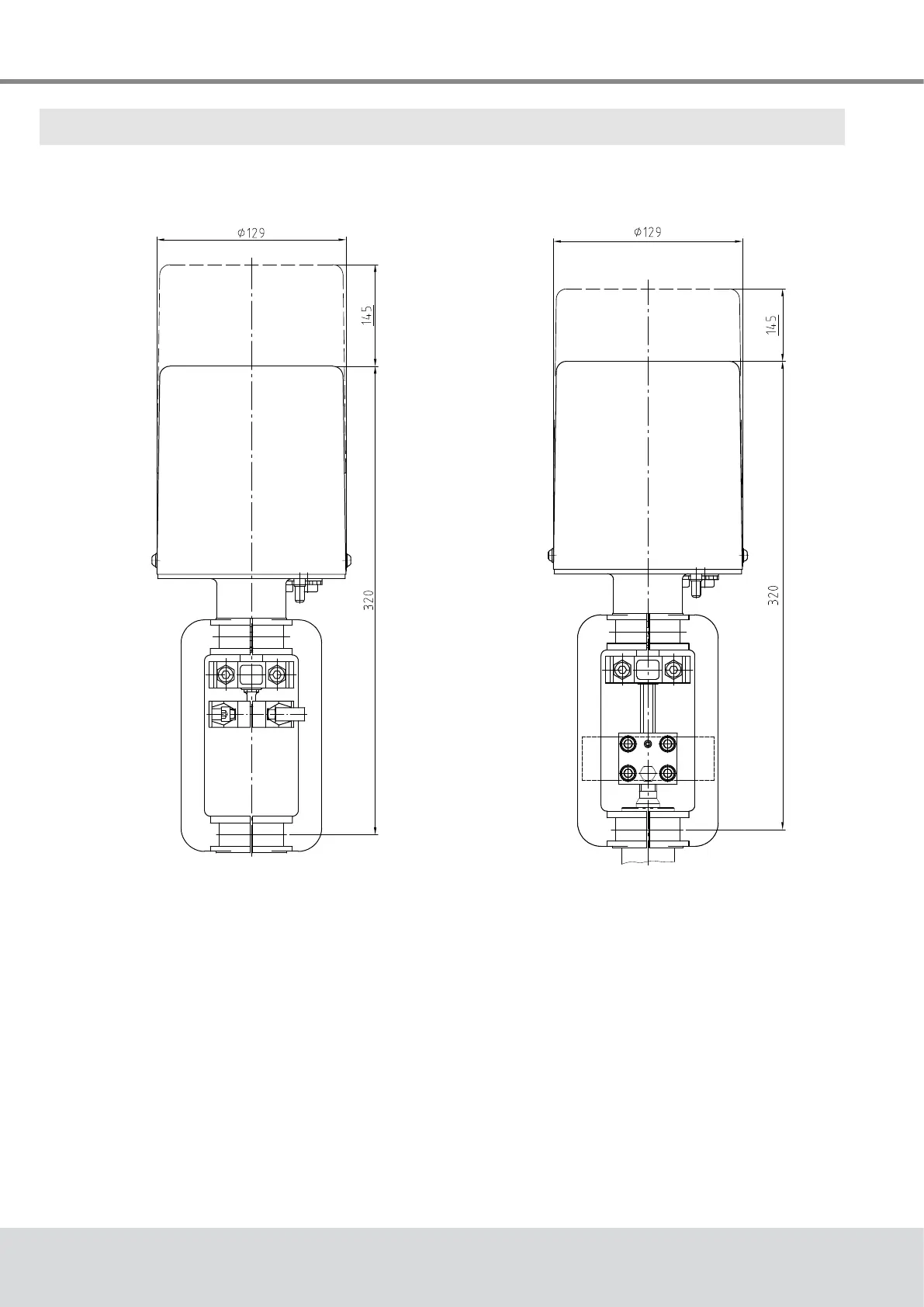

Fig. 31: Dimensional drawing
baelz E07 with S21 yoke
and spindle Ø 10 mm
Fig. 32: Dimensional drawing
baelz E07 with S21-L yoke
and spindle Ø 16 mm
