www.baldormotion.com
Basic Installation 3-15MN1901
3.5 Motor connections
The motor can be connected directly to the MintDrive
II
or through a motor contactor
(M-Contactor).
Location
Connector X1 / X1A
Part number MDH1A... MDH2A... MDH2A15... MDH4A...
Nominal output voltage 160VDC 320VDC 320VDC 565/650V
Output voltage range 135-176VDC 306-350VDC 258-355VDC 254-746VDC
See
section
3.5.5
V
W
U
Motor
To earth/ground outer shield, us e 360° clamps connec ted to backplane
Thermal
switch
A
B
Brake
(if present)
C
D
See
section
3.5.6
Unshielded
lengths should be
as short as
possi ble.
Optional motor
circui t contactors

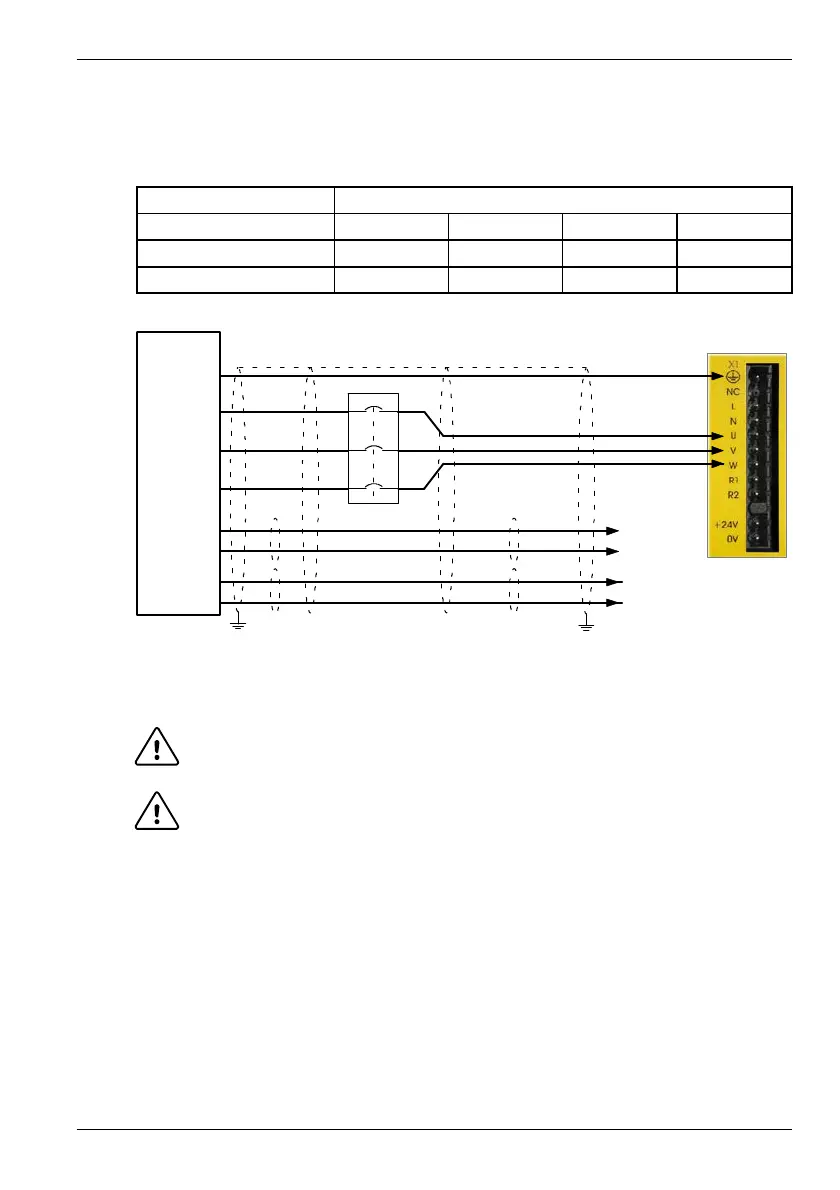

Figure 7 - Motor connections
CAUTION: Do not connect supply power to the MintDrive
II
UVW outputs.
The MintDrive
II
might be damaged.
CAUTION: The motor leads U, V and W must be connected to their corresponding U,
V or W terminal on the motor . Misconnection could result in uncontrolled
motor movement.
The motor power cable must be shielded for CE compliance. The connector or gland used at
the motor must provide 360 degree shielding. The maximum recommended cable length is
30.5m (100ft). For recommended motor power cable sizes, see section 3.4.6.
Note: For CE compliance the motor earth/ground should be connected to the drive
earth/ground.
