7 Cyclical transmission

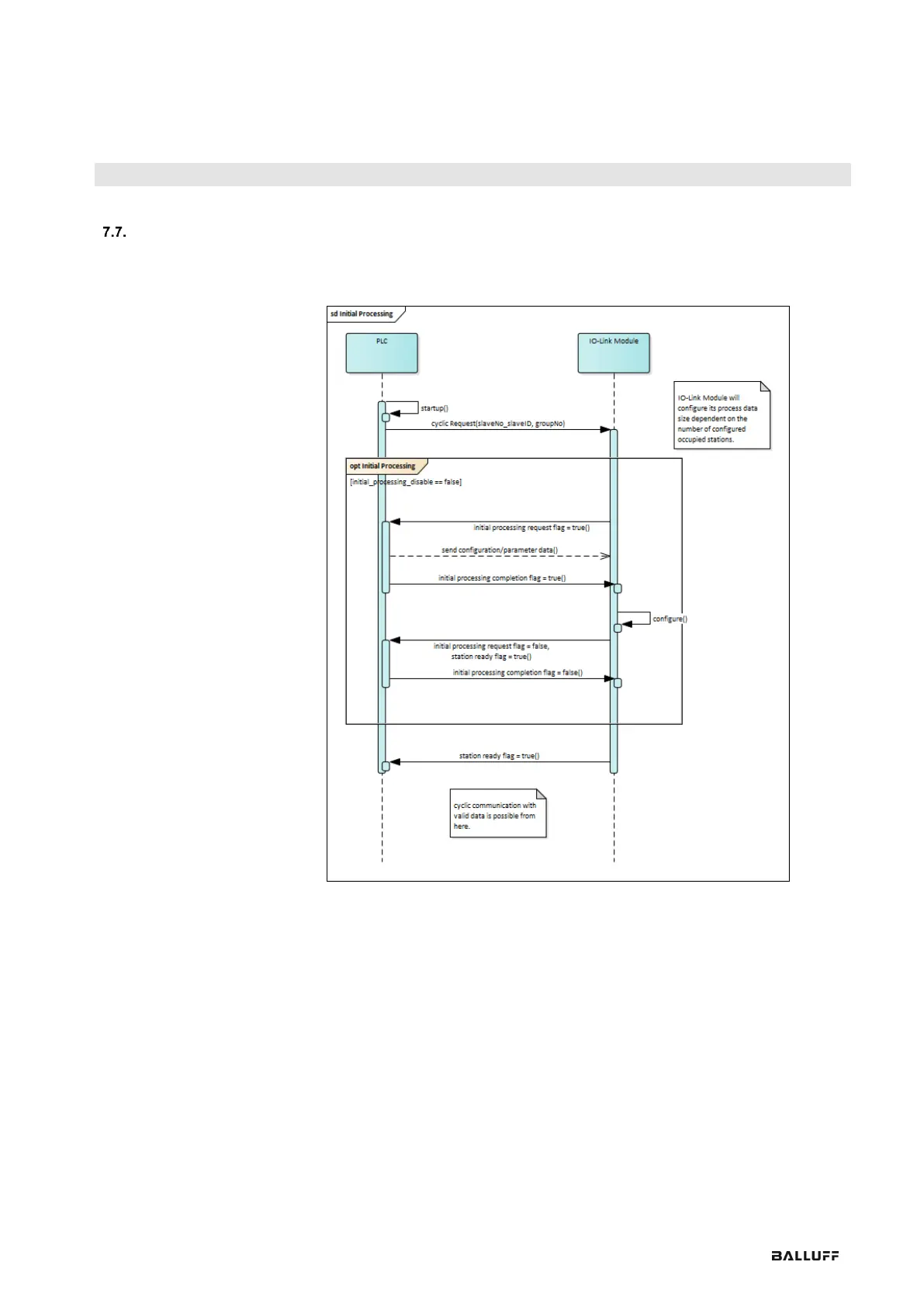

Initializing
The CIB module starts up with an "Initial processing" mechanism.
This initialization is normally handled by function blocks. If there are no function blocks, the
following procedure should be followed:
Settings for the IO-Link master can be made directly in the process data. Using the RY bits
you can enable IO-Link channels, determine the direction of the DI/DO pins and enable the
process data byte swapping. The settings are applied after setting the Initial Processing
Completion flag.
