Balluff BNI00E7 User Manual

Balluff Network Interface CC-Link IE Field Basic
www.balluff.com
36

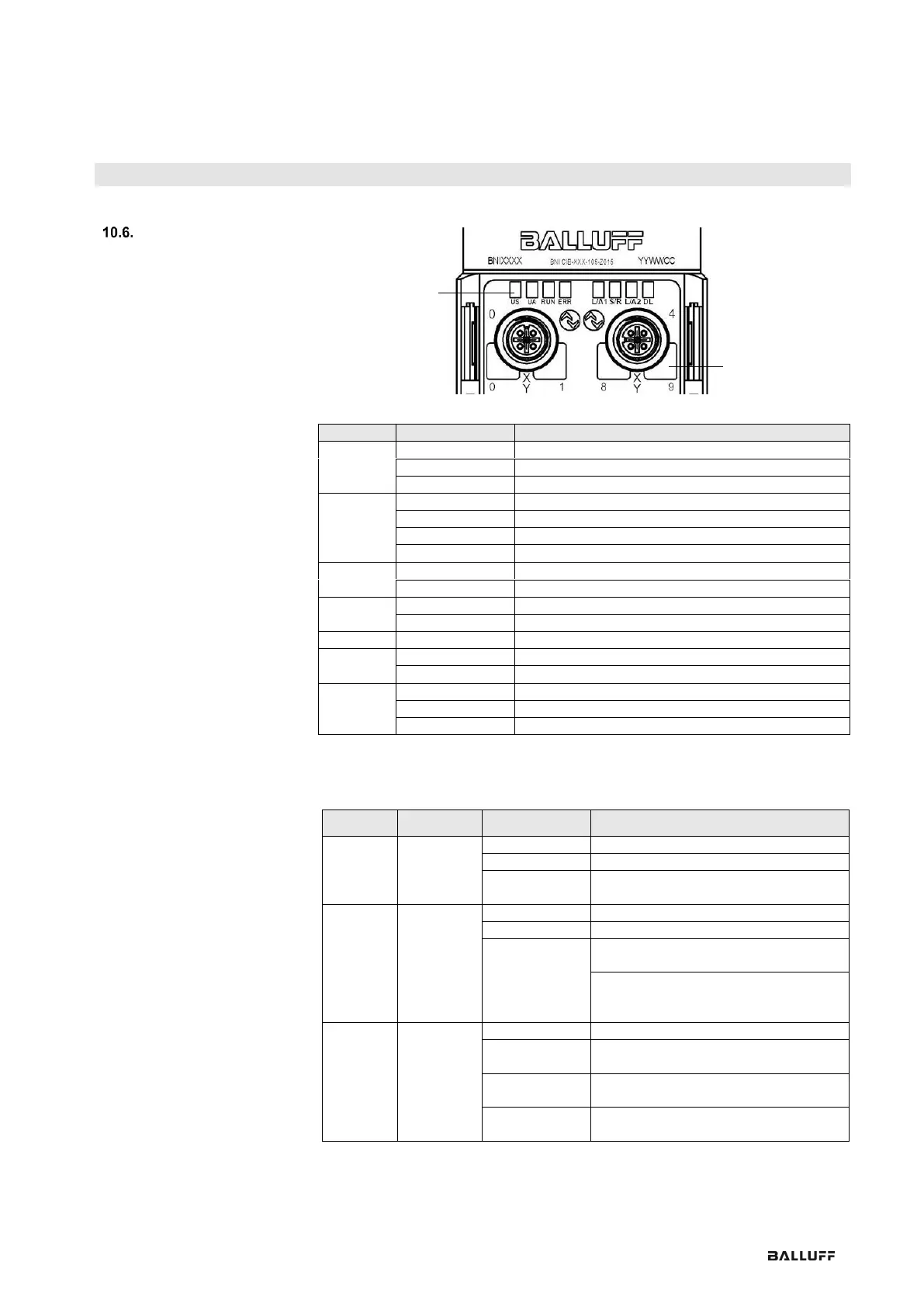

10 Technical data
Function indicators
Module status
LED
Status
Function
US
Off
No supply voltage
Green
Sensor supply OK
Red
Sensor supply less than 18 V
UA
Off
No supply voltage
Green
Actuator supply OK
Red, flashing
Actuator supply less than 18 V
Red
Actuator supply less than 11 V
RUN
Off
General firmware error in module or reset
Green
Normal module operation
ERR
Off
Communication OK
Red
Communication error / device error
L/A 1/2
Orange
Link on respective port
S/R
Off
No CC-Link IE Field Basic communication
Green, flashing
CC-Link IE Field Basic communication
DL
Off
No CC-Link IE Field Basic communication
Green, flashing
Cyclic communication without this slave
Green
Cyclic communication with this slave
Port LED
Each M12 port (digital in-/output) has two 2-color LEDs assigned to it which indicate
the configuration or operating states.
LED
Port mode
Indicator
Description
Pin4, Pin2
SIO
input
Off
Input signal = 0
Yellow
Input signal = 1
Red
Both LEDs flashing: Short circuit on
Pin1-Pin3
Pin4, Pin2
SIO
output
Off
Output signal = 0
Yellow
Output signal = 1
Red
Only one LED: Short circuit / overload
on corresponding Pin4 or Pin2
Both LEDs flashing: Short circuit
between Pin1 and Pin3
or short circuit on both output pins
Only Pin4
IO-Link
Off
IOL Port not enabled
Green, flashing
IOL Port enabled, but no IO-Link
communication
Green, rapidly
flashing
Parameter data adjustment with Data
Storage
Green
IO-Link enabled and communication
running
Status LEDs
Port LEDs
