18 english

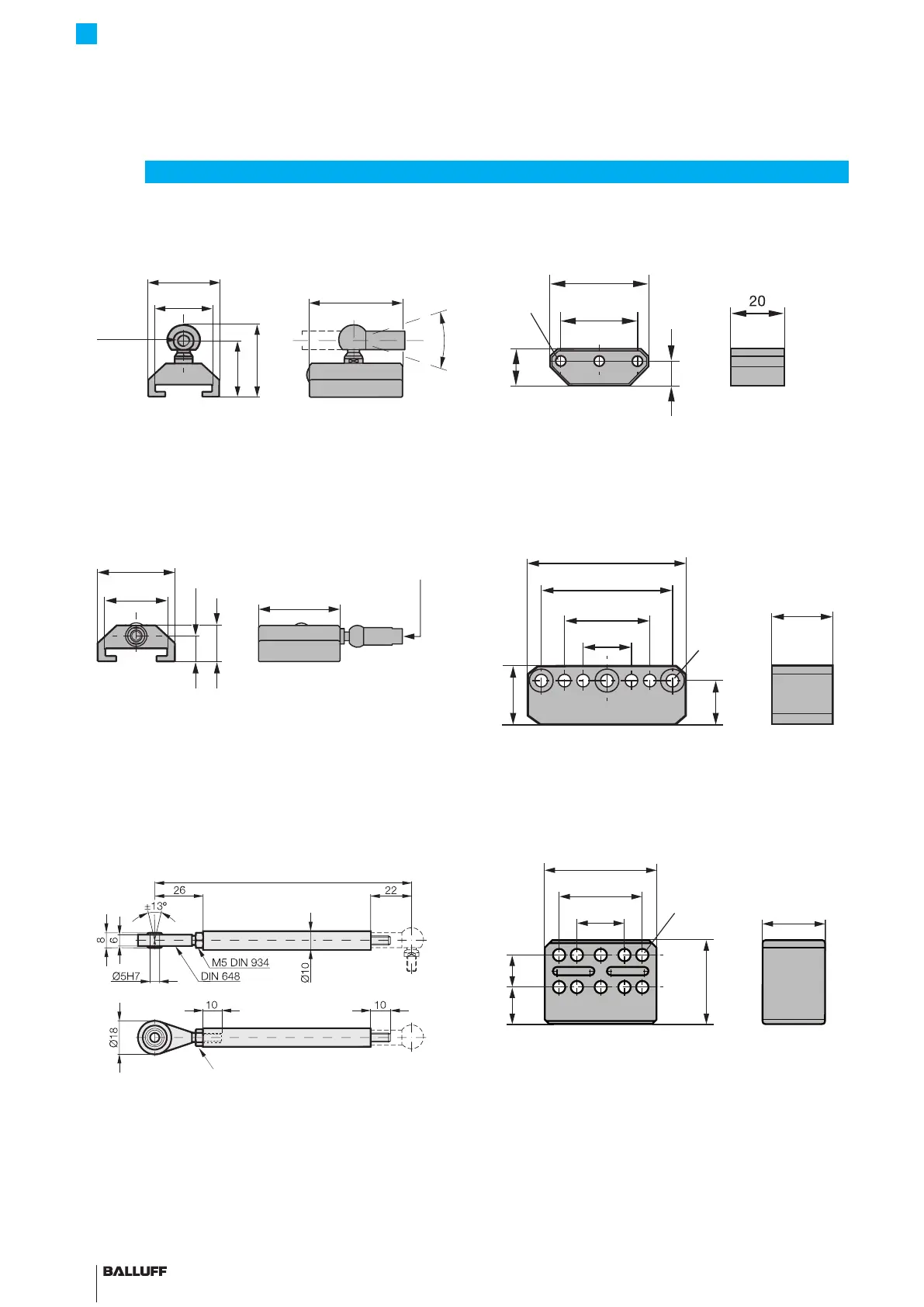

11.1 Captive magnets
BTL5-F-2814-1S
30.4
28
22
M5x10
±18°
24
40
Fig.11-1: Installation dimensions of BTL5-F-2814-1S magnet
Weight: Approx. 28 g
Housing: Aluminum
Slide surface: Plastic
BTL5-T-2814-1S
16.5
11.5
28
22
40
M5x10
Fig.11-2: Installation dimensions of BTL5-T-2814-1S magnet
Weight: Approx. 28 g
Housing: Aluminum
Slide surface: Plastic
11.2 BTL2-GS10-_ _ _ _-A joint rod
Adjustment range –5 mm
Nominal length
1)
Fig.11-3: BTL2-GS10-_ _ _ _-A joint rod
Weight: Approx. 150g/m
Material: Aluminum
1) State the nominal length when ordering
Example: BTL2-GS10-0100-A (nominal length = 100 mm)
11.3 Floating magnets
BTL5-P-3800-2
38
28
9
14
Ø 4.2
Fig.11-4: Installation dimensions of BTL5-P-3800-2 magnet
Weight: Approx. 12g
Housing: Plastic
BTL5-P-5500-2
55
28
16
45
21
Ø 4.2
20
15
Fig.11-5: Installation dimensions of BTL5-P-5500-2 magnet
Weight: Approx. 40g
Housing: Plastic
BTL6-A-3800-2
21
10.813
28.8
28
16
37.6
Ø 4.2
Fig.11-6: Installation dimensions of BTL6-A-3800-2 magnet
Weight: Approx. 30 g
Housing: Plastic
11
Accessories
BTL6-A/C/E/G500-M _ _ _ _ -PF-S115
Micropulse Transducer in a Flat Profile Housing
