Balluff BTL6-A/C/E/G500-M Series - Connector; Adjusting box

www.balluff.com 19english
BTL6-A-3801-2
28
16
21
37.6
Ø 4.2
18
13

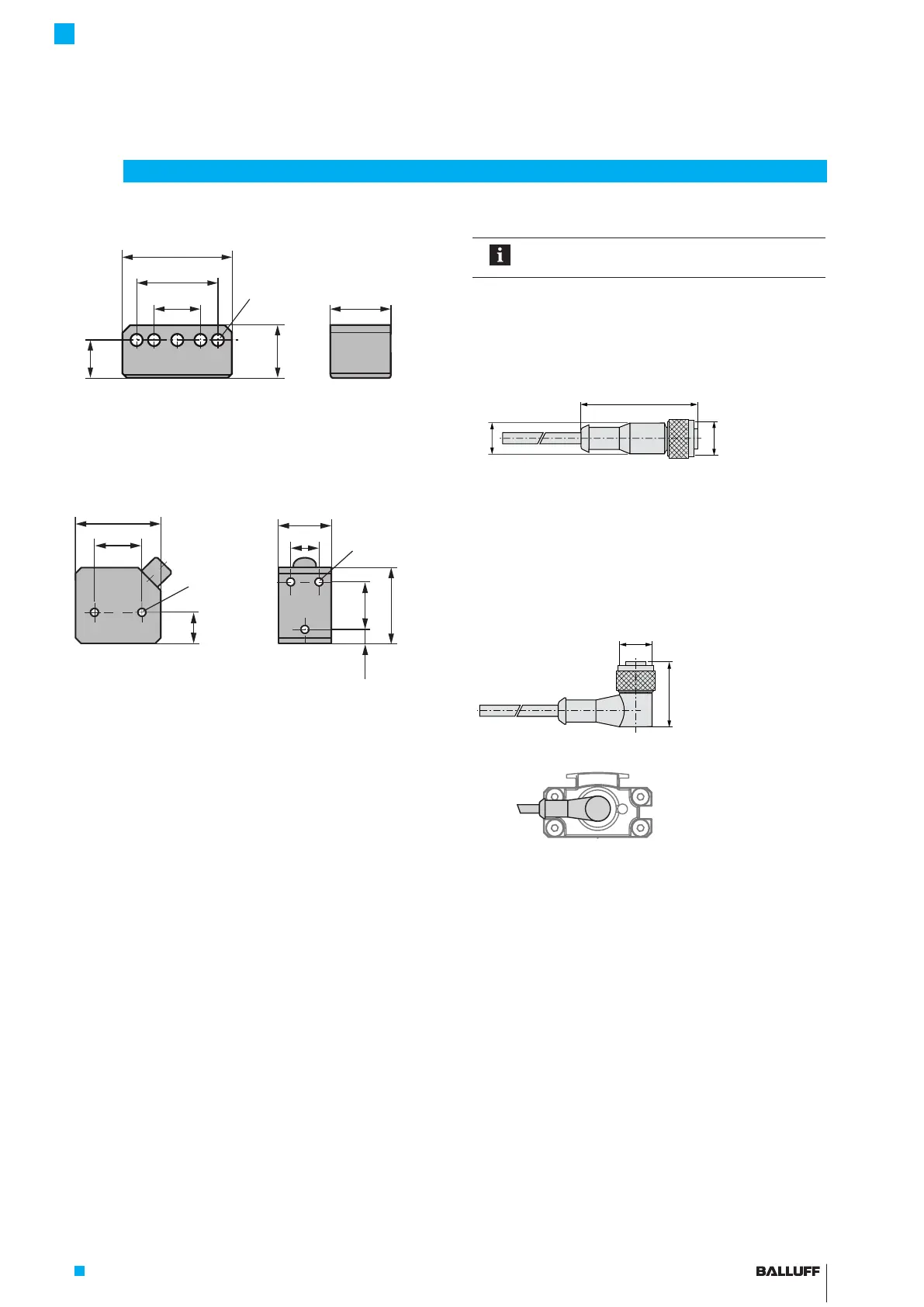

Fig.11-7: Installation dimensions of BTL6-A-3801-2 magnet
Weight: Approx. 25 g
Housing: Plastic
BTL5-P-4500-1
16.5
45
25
28
15
Ø 4.2
25
7.5
M5x8
40
Fig.11-8: Installation dimensions of BTL5-P-4500-1 magnet
Weight: Approx. 90 g
Housing: Plastic
Operating
temperature: −40°C…+60°C
Special advantage of the BTL5-P-4500-1 magnet: Several
magnets on the same transducer can be separately
switched on and off electrically (actuation with a PLC
signal).
11.4 Connector
For information on pin assignment, see
Table4-2 on page10.
BKS-S115-PU-_ _
Straight connector, molded-on cable, preassembled
M12, 8-pin
Various cable lengths can be ordered, e.g.
BKS-S115-PU-05: Cable length 5m
Fig.11-9:
43
Ø 13.5
M12x1
Connector type BKS-S115-PU-_ _
BKS-S116-PU-_ _
Angled connector, molded-on cable, preassembled
M12, 8-pin
Various cable lengths can be ordered, e.g.
BKS-S116-PU-05: Cable length 5m
Fig.11-10:
28
M12x1
Connector type BKS-S116-PU-_ _
Fig.11-11:
Connector type BKS-S116-PU-_ _, outlet
11.5 Adjusting box
BTL7-A-CB02-S115
Scope of delivery:
– Adjusting box
– 2 adapter cables, each approx. 0.3 m
– Condensed guide
11
Accessories (continued)
BTL6-A/C/E/G500-M _ _ _ _ -PF-S115
Micropulse Transducer in a Flat Profile Housing
